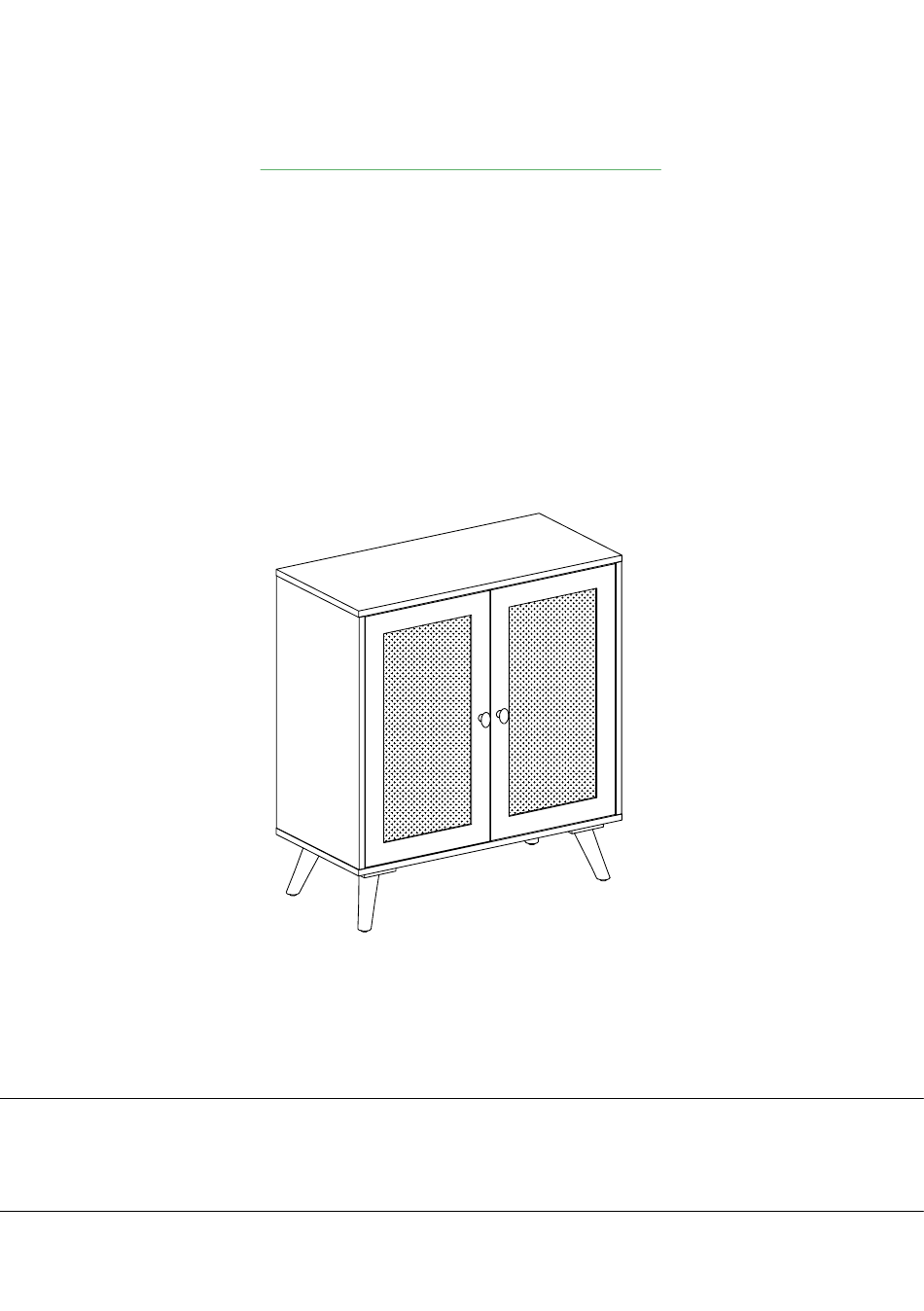

- Page 1 HULALA ITEM NO.SCLS0844 NOTE: This brochure contains IMPORTANT safty info. Please read and keep for future reference. 01/20...
- Page 2 MAINTAINANCE AND WARNING 1.Keep furniture away from heat sources. 2.Do not clean furniture with harsh cleaner or polishes.Do not use detergents,solvents,abrasives,spray packs or leather cleaner. Use non-color mild soa with warm water to clean spills(Mix 1:10 soap to water). 3.Do not place furniture under direct sunlight,material will possibly fade over time.
-
Page 3: Explosive View
EXPLOSIVE VIEW 2PEOPLE 03/20... -
Page 4: Parts List
PARTS LIST 04/20... -
Page 5: Hardware List
HARDWARE LIST ∅ ∅ M3.5 6x35mm 8x30mm x25mm x14mm ∅ ∅ x50mm 15x11mm 20mm TOOL LIST HARDWARE SPARE LIST ∅ 20mm ∅ ∅ ∅ 6x35mm x25mm x35mm 8x30mm x50mm 15x11mm 05/20... - Page 6 ASSEMBLY INSTRUCTIONS STEP-1 Insert wooden dowel #2 into the corresponding hole of top panel（A）as picture show， and then screw bolt #1 into the corresponding hole of top panel(A),tighten it with screwdriver#15. Use screw #4 to attach part #4 to the corresponding hole of top panel(A),tighten screw#4 with screwdriver#15.
- Page 7 ASSEMBLY INSTRUCTIONS STEP-2 Insert panel(E) into the corresponding hole of panel(A),and then insert cam bolt #8 into the corresponding hole of panel（E),tighten cam bolt #8 with screwdriver #15. ∅ 15x11mm 07/20...
- Page 8 ASSEMBLY INSTRUCTIONS STEP-3 Insert side panel(C)&(D) into the corresponding hole of panel(A),and then insert cam bolt #8 into the corresponding hole of panel(C)&(D),tighten cam bolt #8 with screwdriver #15. #8 #9 #8 #9 ∅ ∅ 15x11mm 20mm 08/20...
- Page 9 ASSEMBLY INSTRUCTIONS STEP-4 Carefully align and slide panel (F) into the groove along rear edge of pre-assembled step 3, and insert wooden dowel #2 into the corresponding hole of panel (C)&(D). ∅ 8x30mm 09/20...
- Page 10 ASSEMBLY INSTRUCTIONS (B) to side panel (C)&(D),make sure all holes aligned and Use bolt #7 to attach panel tighten bolt #7 with allen key#14. #7x6 x50mm 10/20...
- Page 11 ASSEMBLY INSTRUCTIONS STEP-6 (J) to bottom panel (B),make sure all holes aligned and Use bolt #3 to attach legs tighten bolt #3 with allen key#14. #3x12 x25mm 11/20...
- Page 12 ASSEMBLY INSTRUCTIONS STEP-7 Use screw #13 to attach part #13 to panel(A)&(B)&(C)&(D),tighten it with screwdriver#15. 12/20...
- Page 13 ASSEMBLY INSTRUCTIONS STEP-8 ， Insert part #10 into the corresponding hole of side panel(C)&(D) and then attach panel(G) to it. 13/20...
- Page 14 ASSEMBLY INSTRUCTIONS STEP-9 Use screw#5 to attach part#11 to the corresponding hole of door(I)&(H) as picture show, tighten it with screwdriver#15. #5x12 M3.5 x14mm 14/20...
- Page 15 ASSEMBLY INSTRUCTIONS STEP-10 Use screw#6 to attach handle#6 to the corresponding hole of door(I)&(H) as picture show, tighten it with screwdriver#15. #6x2 #6x2 15/20...
- Page 16 ASSEMBLY INSTRUCTIONS STEP-11 Use screw#5 to attach preassemble door(H)&(I) to the corresponding hole of side panel(C)&(D) as picture show,tighten it with screwdriver#15. #5x8 M3.5 x14mm 16/20...
- Page 17 ASSEMBLY INSTRUCTIONS STEP-12 ③ ① Use screw to attach part to the corresponding hole of side panel(C)&(D) as picture show,tighten it with screwdriver#15. ③ ① ① ③ ① ③ 17/20...
- Page 18 ASSEMBLY INSTRUCTIONS ① ② ④ STEP-13 Mark the position on the wall, that corresponds to the location of part ① on the side panels C,D; Drill and insert the expandable screw ② by hammer. Assemble the part ① to the wall. Align the hole in the part ①...
- Page 19 ASSEMBLY INSTRUCTIONS STEP-14 ⑤ Let the plastic belt ⑤ pass through the both part ① and pull tightly. 19/20...
-
Page 20: Warranty
WARRANTY 1.We strive to offer high-quality products,and we also try our best to satisfy each and every customer that orders from us with product or service as needed. 2.We provide 30 days warranty starting from the time you receive the item.Each customer must provide a record of their order such as the order number,or item receipt for any items that are out of the warranty period you may also still receive.
