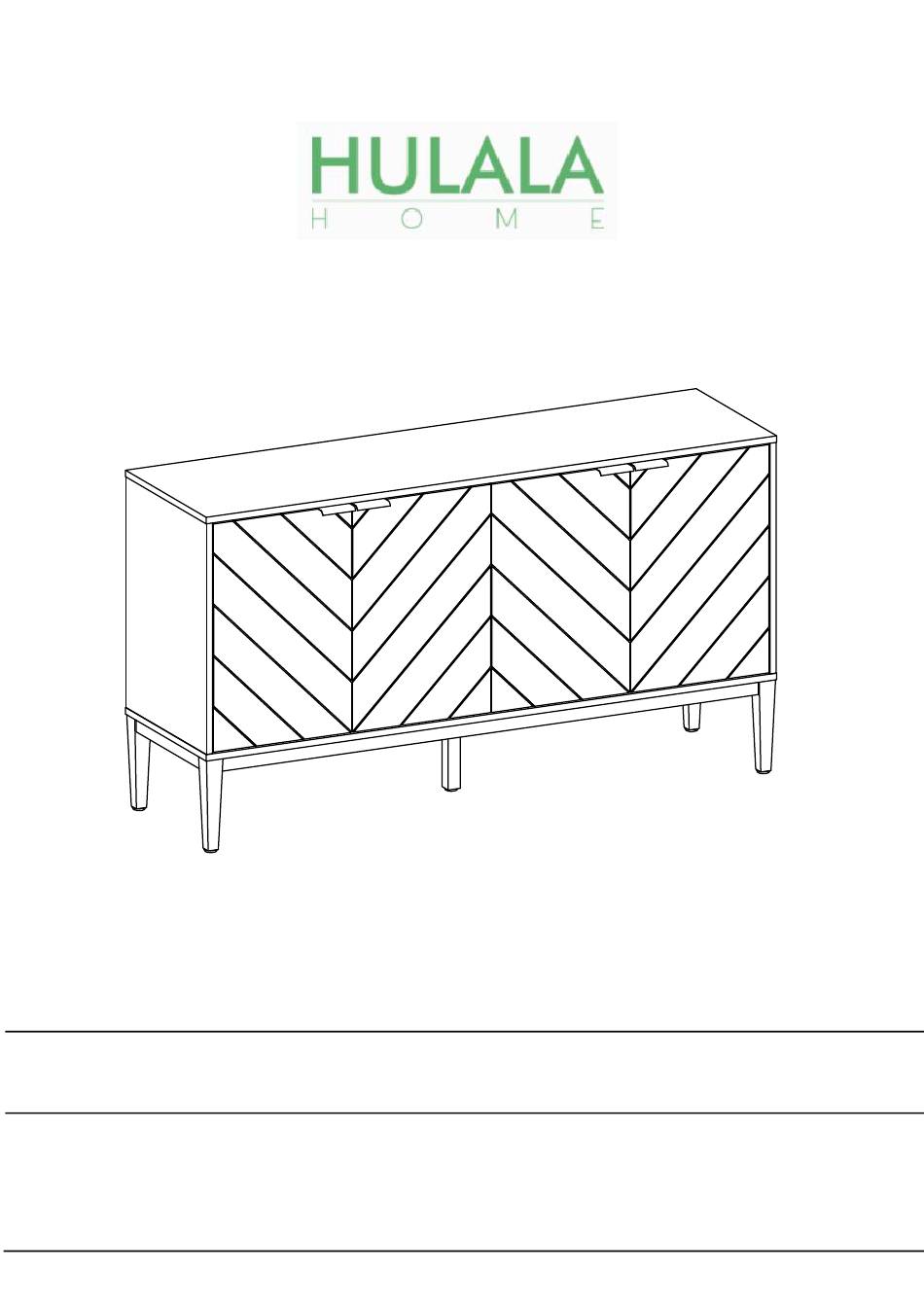

- Page 1 SCBSD0548 NOTE: This brochure contains IMPORTANT safty info. Please read and keep for future reference. 1/15...
- Page 2 MAINTAINANCE AND WARNING Keep furniture away from heat. Do not clean furniture with harsh cleansers or polish. Do not use detergents, Solvents, abrasives, spray packs or leather cleaner. Use non-color mild soap with warm water clean spills(Mix 1:10 soap to water) Do not place furniture under direct sunlight, material will possibly fade over time.
- Page 3 OVERVIEW 3/15...
- Page 4 PARTS LIST 4/15...
- Page 5 PARTS LIST 5/15...
- Page 6 HARDWARE LIST SPARE Be sure to check all packing material carefully for small parts, which may have come loose inside the carton during shipment. 6/1 5...
- Page 7 ASSEMBLY INSTRUCTIONS Preparing part 1 1)Align the pre-drilled hole in part 1, screw in the cam bolt A and tighten by screwdriver T。 2）Align the hole in part 1 as the picture show, screw in the part O by hand. Connect part 3,4,5,6 to the part 1 1) Align the hole in the part 1, insert the part D into the hole by hand;...
- Page 8 Install part 8 1) Align the groove in part 4, 6 and 1, insert part 8 into the groove and slide down to the end. be sure the part 8 in the groove of part 1. 2) Repeat the same way to finsih the rest of part 8. Install part 2 1) Align the hole in part 3,4,5, insert the part D by hand;...
- Page 9 Connect the part 9 to part 10 align the hole in part 10 to the hole in part 9, screw in the screw G and tighten by Allenkey K. Assemble legs(part 11) Align the hole in part 9 to the hole in the part 11, screw in the screw F and tighten by Allenkey K.
- Page 10 install the leg frame(finished part in step 6) align the hole in part 9 to the hole in part 2, screw in the ALL screw F(including not fully tighten in step 6) and fully tighten by Allenkey K in sequence. Assemble part Q and part L 1) Align the hole in part Q to the part 1, screw in the screw E and fully tighten by screwdriver T;...
- Page 11 Install part M 1) Align the pre-drilled hole in part 3,4,5, insert the part M into the hole( you have 3 options according to your expectation of height), but you must be sure they are in the same level both left and right after you finished) 2)Seperately put the part 7 on the part M.
- Page 12 Prepare the part H and part N 1)Align the hole in part H to the pre-drilled hole in part 12, screw in the screw E and fully tighten by screwdriver T; 2) Align the hole in part N to the pre-drilled hole in part 12, screw in the screw E and fully tighten by screwdriver T;...
- Page 13 Prepare the doors(part 13 and 14) 1)Align the hole in part I to the pre-drilled hole in part 13, screw in the screw E and fully tighten by screwdriver T; 2) Align the hole in part N to the pre-drilled hole in part 13, screw in the screw E and fully tighten by screwdriver T;...
- Page 14 Install the anti-collapse device. 1.Mark the position on the wall, this should be same as the position of Q where are on the back of panel 1; Drilled and insert the expandable screw S by hammer; 2.Assemble the part Q on the wall screw in the screw P and tighten by screwdriver T.
-
Page 15: Warranty
WARRANTY We strive to offer high-quality products, and we also try our best to satisfy each and every customer that orders from us with product or service as needed. We provide 30 days warranty starting from the time you receive the item. Each customer must provide a record of their order such as the order number, or item receipt for any items that are out of the warranty period you may also still receive replacement...
