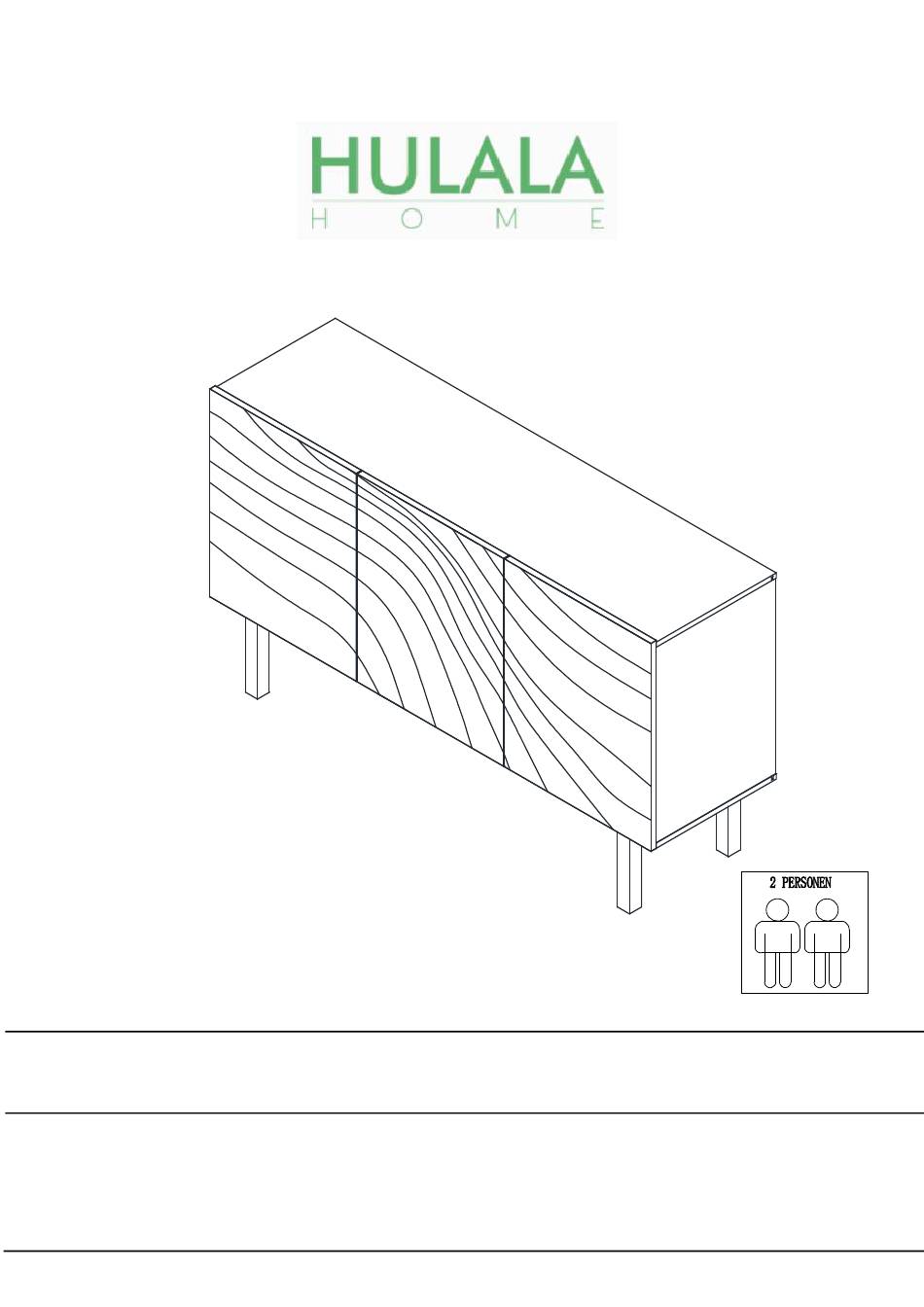

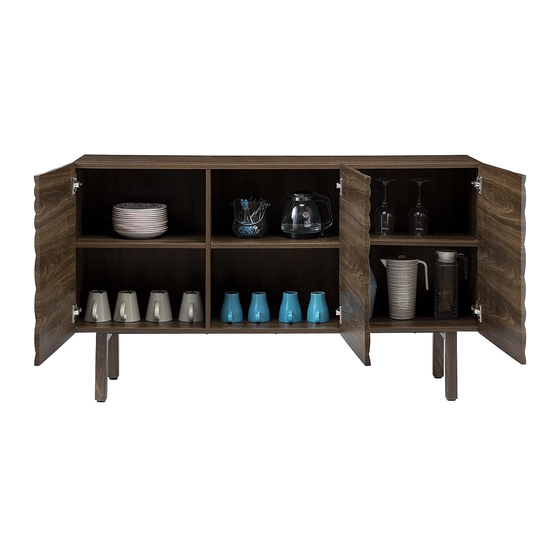

- Page 1 ITEM NO. SCBSD0533 NOTE: This brochure contains IMPORTANT safety info. Please read and keep it for future reference. 1/16...
- Page 2 MAINTAINANCE AND WARNING Keep furniture away from heat sources. Do not clean furniture with harsh cleaner or polishes. Do not use detergents, Solvents, abrasives, spray packs or leather cleaner. Use non-color mild soap with warm water to clean spills(Mix 1:10 soap to water) Do not place furniture under direct sunlight, material will possibly fade over time.
- Page 3 PARTS LIST...
-
Page 4: Explosive View
Explosive View... - Page 5 HARDWARE LIST 15mm M7*50mm 3.5*14mm M6*35mm 8*30mm 4*35mm M6*50mm M6*60mm SPARE 3.5*14mm 4*35mm M6*35mm M7*50mm M6*50mm M6*60mm Be sure to inspect all packing material carefully for small parts, that may have come loose inside the carton during shipment.
- Page 6 ASSEMBLY INSTRUCTIONS Insert the wood dowel D into the holes of panel 1, then attach the cam bolt A to panel 1 by screwdriver. M6*35mm 8*30mm Use the screwdriver and cam lock B to connect panel 3,4,5,6 with panel 1,make sure all holes aligned and tighten all bolts to secure.Then stick the partJ on all bolts holes.
- Page 7 Carefully align and slide the back panel 9 & 10 into the groove along rear edge of pre-assembled unit in step 2 ,insert the wood dowel D into the holes of panel 3,4,5,6. 8*30mm Use the allen key K and bolt C to attach the assembled step 3 with panel 2,make sure all holes aligned and tighten all bolts to secure.
- Page 8 Use the allen key K,bolt P to connect stretcher 15 with panel 2,make sure all holes aligned and do not tighten all bolts until step 6. M6*50mm Use the allen key K,bolt Q and bolt P to connect the stretcher 15 with the left & right leg 14,make sure all holes aligned and tighten all bolts to secure.
- Page 9 H*18 E*18 Use the screwdriver,screw E,and plastic buckle H to connect the back panel with all side panel & top panel,vertical partition panel,bottom panel.Then fasten all screws to secure 3.5*14mm 9 16...
- Page 10 I*12 Place shelf holders I into the desired position and then slide adjustable shelves 7 & 8 into place.
- Page 11 Use the screwdriver,screw E to connect concealed hinges F with the panel 11 & 13. 3.5*14mm Use the screwdriver,screw E to connect concealed hinges G with the panel 12. 3.5*14mm 11 16...
- Page 12 Use the screwdriver and screw E to connect concealed hinges on panel 11 & 13 with side panel 3 & panel 4. Concealed hinges are three-way adjustable: In-and-out Vertical via slots in by loosening the hinge arm Horizontal the mounting plate mounting screw or via cam by screw adjustment! or via cam adjustment!
- Page 13 Use the screwdriver and screw E to connect door panel 12 with vertical partition panel 6. Concealed hinges are three-way adjustable: In-and-out Vertical via slots in by loosening the hinge arm Horizontal the mounting plate mounting screw or via cam by screw adjustment! or via cam adjustment! adjustment!
- Page 14 Use the screwdriver and screw E to attach plastic bracket M to top panel 1. Keep the cabinet-level with adjustable nails in the event of a wobbly cabinet. Now your cabinet is ready to use. 3.5*14mm 14 16...
- Page 15 Install the anti-collapse device. 1. Mark the position on the wall that corresponds to the location of M on the back of panel 1; Drill and insert the expandable screw O by hammer; 2.Assemble the part M to the wall. Align the hole in the part M with the expandable screw O, screw in and tighten by screwdriver;...
- Page 16 We strive to offer high-quality products, and we also try our best to satisfy each and every customer that orders from us with product or service as needed. We provide 30 days warranty starting from the time you receive the item. Each customer must provide a record of their order such as the order number, or item receipt for any items that are out of the warranty period you may also still receive replacement...
