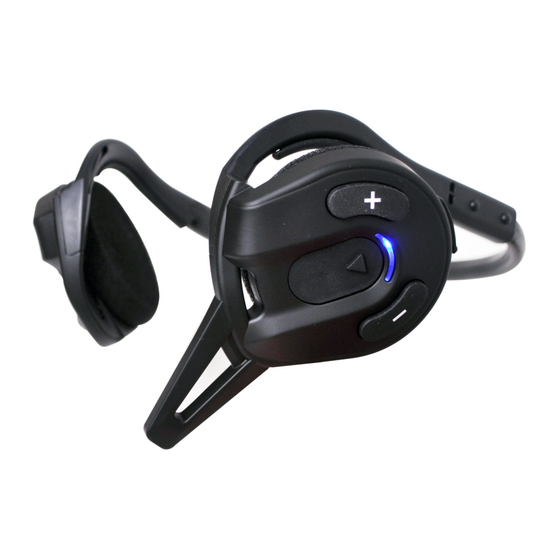

- Page 1 | NS10 NS10 Bluetooth Stereo Headset & Intercom SENA www.senabluetooth.com User’s Guide...
-
Page 2: Powering On/Off And Charging
The charging LED beside the charging port turns on red while charging, and turns to blue when the headset is fully charged. It takes about 2.5 hours to be completely charged. You can use the NS10 while charging. It is especially helpful when you use a cigarette charger for a long road trip. - Page 3 3. NS10 CONFIGURATION SETTING You can set the configuration of the NS10 by the voice menu instruction as below. 1. To enter into voice configuration menu, press and hold the Center Button for 10 seconds until the LED shows solid blue and you hear high tone double beeps.
-
Page 4: Multipoint Pairing
| NS10 To go into mobile phone pairing mode, tap the (+) Button or the (-) Button until you hear a voice prompt, “Phone pairing”. Please refer to section 7.1 for details on mobile phone pairing. If you tap the (+) or (-) Button, you can exit from the phone pairing mode. -
Page 5: Enabling/Disabling Voice Activated Intercom
| NS10 Enable / Disable Tap the Center Button Tap the (+) Button or the (-) Button until you hear a voice prompt, “VOX phone”. If this feature is enabled, you can answer incoming calls by simply saying a word loudly enough, unless you are connected to intercom. For example, when you hear a series of beeps for an incoming call, you can answer the phone by saying “Hello”... -
Page 6: Delete All Bluetooth Pairing Information
Execute Tap the Center Button To delete all Bluetooth pairing information on the NS10, tap the (+) Button or the (-) Button until you hear a voice prompt, “Delete all pairings”. Tap the Center Button to confirm. 3.10 Reset to Factory Default Setting Voice Prompt “Factory reset”... -
Page 7: Mobile Phone Pairing
4. PAIRING THE NS10 WITH BLUETOOTH DEVICES Before using the NS10 Bluetooth headset with any of Bluetooth devices for the first time, you need to do the pairing operation. It can be paired with Bluetooth mobile phones, Bluetooth stereo devices such as MP3, or motorcycle specific Bluetooth GPS, and with Bluetooth adapter or transmitter such as Sena SR10 or SM10. -
Page 8: Bluetooth Stereo Device Pairing
HFP devices at the same time. So, when you already have a mobile phone connected with the NS10, you can also pair and connect a second mobile phone or other HFP devices such as GPS or Sena SR10, Bluetooth adapter. -
Page 9: Pairing With The Sena Sr10, Bluetooth Two-Way Radio Adapter
If GPS is not only used for turn-by-turn voice instructions but also is your preferred Bluetooth stereo music source, you can pair the GPS to the NS10 by following the simple procedures in “7.1 Mobile Phone Pairing”. When you do this, the NS10 thinks the GPS is a mobile phone. -
Page 10: Intercom Pairing
5. PAIRING WITH SELECTIVE PROFILE: HFP OR A2DP STEREO If you have a MP3 stereo music phone such as a smartphone, sometimes you may need to selectively use the NS10 for A2DP stereo music only or for mobile phone handsfree only. This instruction is for advanced users who want to pair the NS10 to their smartphones only with one selective profile: A2DP stereo for music or HFP for phone call. -
Page 11: Pairing With Other Sena Headset Models For Intercom Conversation
6.2 Pairing with Other Sena Headset Models for Intercom Conversation The NS10 can be paired with all other Sena headset models such as the SMH10, SPH10 and the SMH5 for intercom conversation. Please follow the same procedure as above to pair with these headset models. -
Page 12: Function Priority
Audio/Video Remote Control Profile (AVRCP), so if your Bluetooth audio device also supports the AVRCP, you can use the NS10 to remotely control music playback. You not only can adjust the volume but also use the functions such as play, pause, next track and previous track. -
Page 13: Start And End Two-Way Intercom
Press the Center Button for 3” If you have second mobile phone connected with the NS10 by multipoint connection, you can answer the incoming call to the second mobile phone by tapping the Center Button while you are on the line of the first mobile phone. In this case, the first call is on call waiting. -
Page 14: Voice Activated Intercom (Vox Intercom)
10.4 Intercom and GPS If you pair a Bluetooth GPS to the NS10 as described in 6.3 of this user's guide, you can hear the turn-by-turn voice instruction of the GPS while having an intercom conversation. The GPS voice instruction interrupts intercom conversation, but it is automatically reestablished after the GPS voice instruction ends. -
Page 15: Three-Way Conference Intercom
| NS10 As described in 6.4 of this user's guide, you can use a two-way radio and NS10 Bluetooth intercom simultaneously by using the Sena SR10, a Bluetooth Two-way Radio Adapter, along with the NS10. Incoming audio from the two-way radio is not interrupting an intercom conversation but is heard in background. -
Page 16: End Three-Way Intercom
12.1 Start Four-way Intercom You can have four-way conference intercom with three other NS10 users by adding one more intercom participant to the three-way intercom. While you are having three-way intercom as above in section 14.1, a new participant (D), who is an intercom friend of your intercom friend (C), may join the conference intercom by making an intercom call to your intercom friend (C). -
Page 17: End Four-Way Intercom
| NS10 12.2 End Four-way Intercom As same in the case of three-way intercom, you can completely get out of the four-way conference intercom or just disconnect a single intercom connection. Press the Center Button for 1 second until you hear a beep to terminate four-way conference intercom. It terminates the intercom connections between you (A), and your intercom friends (B) and (C). -
Page 18: Intercom Failure
16. FAULT RESET When the NS10 is not working properly or is in faulty status for any reason, you may reset by pushing the pin-hole reset button at the back of the headset main unit. Insert a paper clip into the reset pin-hole and press the reset button for a second with light pressure. -
Page 19: Battery Information
BATTERY INFORMATION The NS10 has an internal, non-removable external, rechargeable battery. Do not attempt to remove the battery from the device as you may damage the device. The battery can be charged and discharged hundreds of times, but it will eventually wear out. -
Page 20: Certification And Safety Approvals
| NS10 prevent possible harm to the environment or human health from uncontrolled waste disposal, please do not dispose of these products as unsorted municipal waste, but hand it in at an official collection point for recycling. CERTIFICATION AND SAFETY APPROVALS FCC Compliance Statement This device complies with part 15 of the FCC Rules. - Page 21 Sponsors, Employees, Suppliers and Resellers (jointly referred to as the “Company” or “Sena”) strongly advise you to take all necessary precautions and remain alert to the traffic, weather and road conditions if you choose to use the NS10 headset, including all derivative models irrespective of its commercial name or branding (the “Device”), and stop your Vehicle on the roadside prior to initiating or receiving calls.
- Page 22 Sena hereby notifies you that using this Device may also be in contravention to local, federal, state or national laws or regulations, and that any use of the Device is entirely at your sole risk and responsibility.
- Page 23 (a) any misapplication or misuse of the Product; (b) failure of Customer to adhere to any of Sena’s specifications or instructions; (c) neglect of, abuse of, or accident to, the Product; or (d) any associated or complementary equipment or software not furnished by Sena.
- Page 24 WARNING Sena informs that using this device in public traffic may not be authorized by the law. Please check your local law and use this device only out of public traffic such as private properties or closed circuits. If the simultaneous use of both ear speakers while riding a motorcycle is prohibited by your local law, please use only a single ear speaker while riding.
- Page 25 | NS10 SENA www.senabluetooth.com User's Guide for Firmware v1.0...
