Intense TAZER ALLOY PRO Manual page 43

TORQUE
Torque Notes

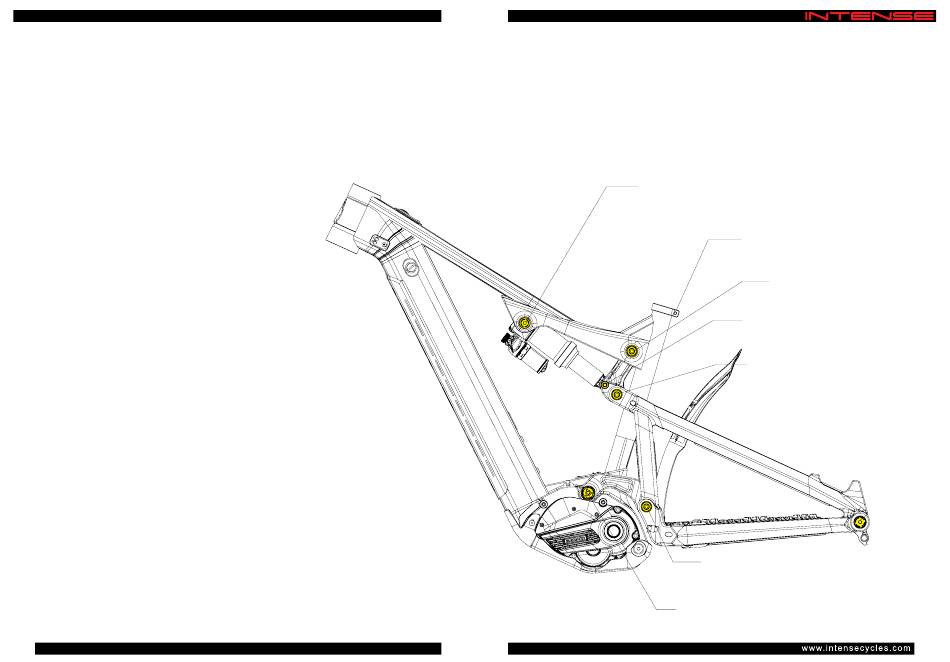

SPECIFICATIONS
Achieving correct torque is vital to ensuring the proper
performance and function of the Tazer frame. Failure
to do so could result in suboptimal performance of your
frame as well as premature wear and tear of individual
parts. In addition to this chart, torque values are laser
etched onto corresponding hardware for
your reference.
84
TAZER MX ALLOY PRO
TAZER MX ALLOY EXPERT
TAZER ALLOY PRO
TAZER ALLOY EXPERT
NOTE
Torque specifications are the same
for both MX EXPERT ALLOY and
MX PRO ALLOY models
10/21/2022
(MX PRO shown).
16 Nm / 140 in-lbs
16 Nm / 140 in-lbs
6 to 8 Nm / 53 to 70 in-lbs
6-8 Nm / 53-70 in-lbs
M8 HEX 7 Nm / 60 in-lbs
M8 HEX, 7 Nm / 60 in-lbs
M5 HEX 14 Nm / 125 in-lbs
M5 HEX, 14 Nm / 125 in-lbs
16 Nm / 140 in-lbs
16 Nm / 140 in-lbs
M8 HEX 7 Nm / 60 in-lbs
M8 HEX, 7 Nm / 60 in-lbs
M5 HEX 14 Nm / 125 in-lbs
M5 HEX, 14 Nm / 125 in-lbs
Derailleur Cap: 25 Nm / 221 in-lbs
Axle (non-drive side): 11 Nm / 100 in-lbs
M8 HEX 7 Nm / 60 in-lbs
M8 HEX, 7 Nm / 60 in-lbs
M5 HEX 14 Nm / 125 in-lbs
M5 HEX, 14 Nm / 125 in-lbs
20 Nm / 175 in-lbs
20 Nm / 175 in-lbs
Derailleur Cap:
25 Nm / 221 in-lbs
Axle (non-drive side):
11 Nm / 100 in-lbs
