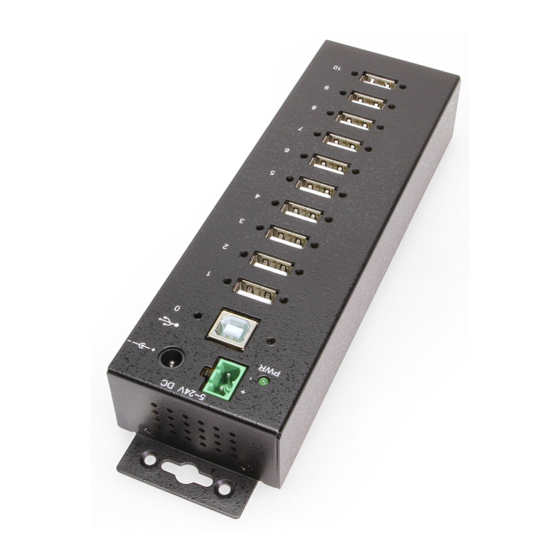

10-Port USB2.0 Metal Hub
with 15KV ESD Surge Protection and Rack/DIN-RAIL Mounting Kit
1. Introduction
Thank you for purchasing this high-speed 10-port USB2.0 hub. It
provides an ideal solution to expand 10 USB2.0 ports from one
single USB2.0 host port. It provides a wide range self power
source (+5~24VDC from the 2-pin Terminal Blocks or DC Jack) to
supply enough power on USB2.0 buses.
Features:
✓ Compliant with USB Specification 2.0
✓ Metal Case, DIN Rail and wall mountable
✓ Provides 10 Downstream USB2.0 Facing Ports
✓ Supports USB Screw-Lock Mechanism for Both Type-B and
Type-A Cables
✓ Supports 480Mbps (High speed), 12Mbps (Full-speed) and
1.5Mbps (Low-speed) Speed
✓ Supports 15KV ESD Level 4 Protection for Each Port
✓ Supports +5~24V DC Wide Range Input Power
✓ Power Inputs: DC-Jack or Terminal Blocks

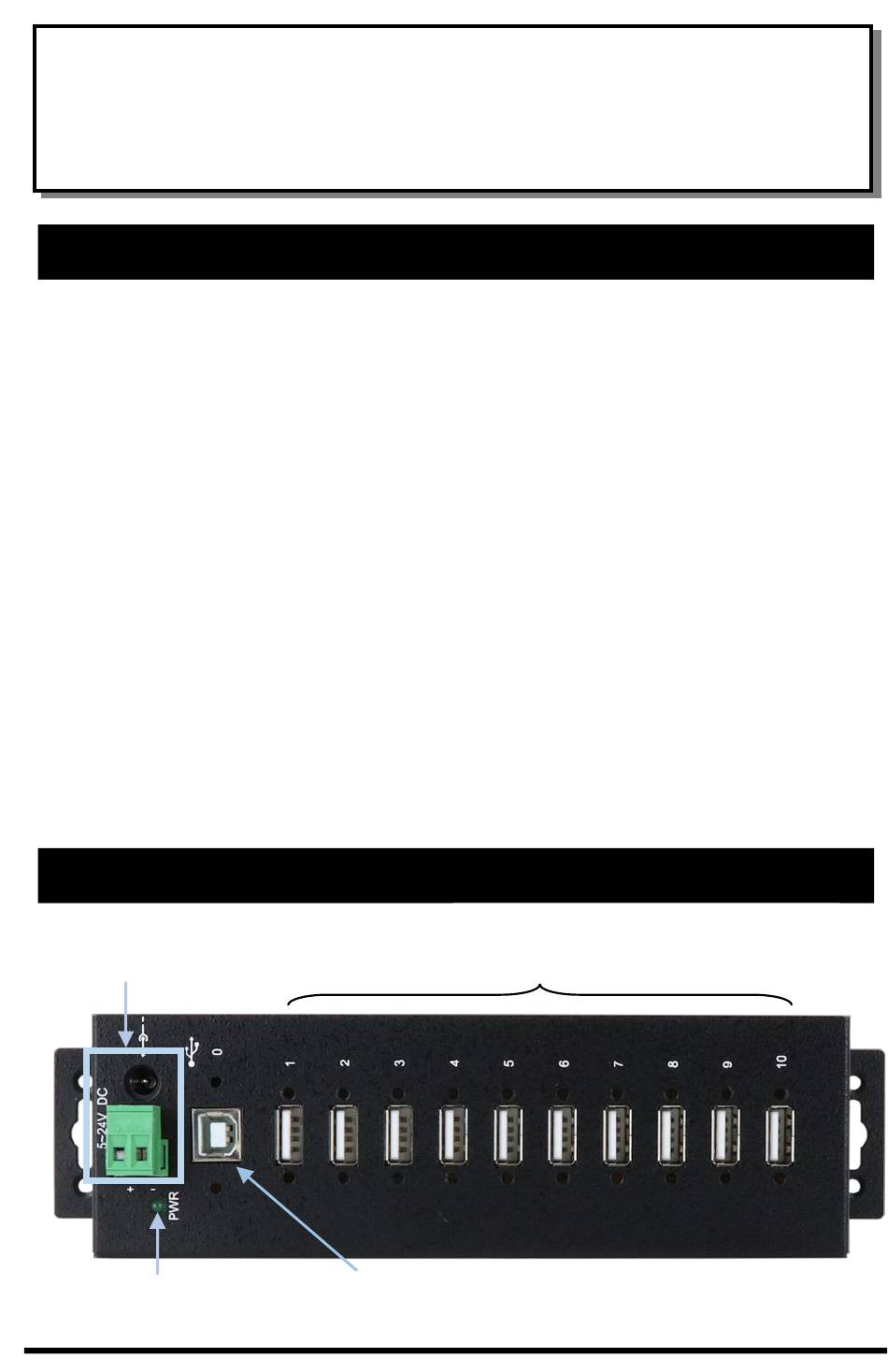

2. Connector Layout
+5~24V DC Power Input DC
Jack and Terminal Blocks
Power LED
Installation Guide
10 USB2.0 Downstream Port
Connectors
USB2.0 Upstream Port Connector
1
Advertisement
Table of Contents
Related Manuals for CoolGear CG-10U2AML
Summary of Contents for CoolGear CG-10U2AML
- Page 1 10-Port USB2.0 Metal Hub with 15KV ESD Surge Protection and Rack/DIN-RAIL Mounting Kit Installation Guide 1. Introduction Thank you for purchasing this high-speed 10-port USB2.0 hub. It provides an ideal solution to expand 10 USB2.0 ports from one single USB2.0 host port. It provides a wide range self power source (+5~24VDC from the 2-pin Terminal Blocks or DC Jack) to supply enough power on USB2.0 buses.
- Page 2 10-Port Managed USB2.0 Metal Hub with 15KV ESD Surge Protection USB2.0 Upstream Port Connector: Type-B connector from ⚫ upstream USB2.0 port. It is connected from host or another USB2.0 hub. Supports both normal and screw-lock type USB cables. USB2.0 Downstream Port Connectors: There are 10 Type-A ⚫...
- Page 3 10-Port Managed USB2.0 Metal Hub with 15KV ESD Surge Protection cable to your upstream USB port, then connect the type-B end connector to this hub. Since the USB hub is plug-and-play, you don’t have to turn off your host computer when installing the hub.
- Page 4 10-Port Managed USB2.0 Metal Hub with 15KV ESD Surge Protection 4. Checking the Hub Installation To check the USB2.0 hub installation in Windows device manager, please follow the following steps: 1. Click Start ➔ Control Panel ➔ System ➔ Device Manager button 2.
