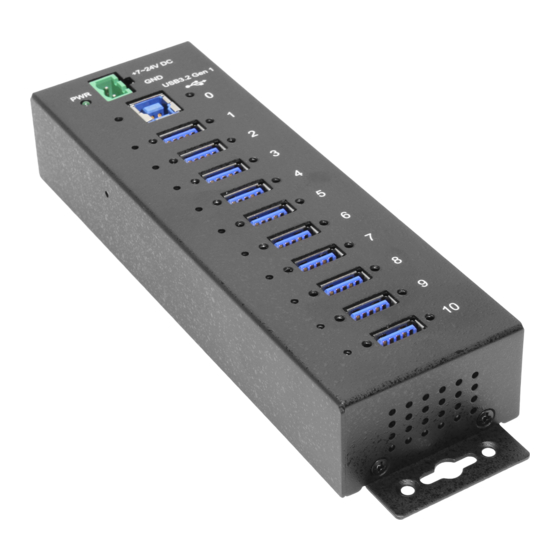

- Page 1 10-Port Managed USB3.2 Gen 1 Metal w/ DIN RAIL Mounting Kit Model Number: CG-10Pu3MGD Installation Guide Coolgear, Inc. Version: 1.0 Date: 04/03/2024...
-
Page 2: Connector Layout
First Release 1. Introduction Thank you for purchasing Coolgear’s 10-Port Managed USB3.2 Gen 1 Metal Hub. The Super-speed Hub is supplied with managing software utilities which can turn on/off the bus power of each downstream device or even reset the entire hub by user or application programs. -
Page 3: Hardware Installation
Connect the USB devices to the downstream ports of this hub. Mount your hub on the wall or DIN RAIL if required. Connect the USB devices to the downstream ports of this hub. Mount your hub on the wall or DIN RAIL if required. Need help? Visit: coolgear.com/support... - Page 4 The Hub supports managing utilities called USB Hub Administrator for major recent Windows (XP and above) and Linux: The above folders include the software for different platforms. If you are installing it on Windows, please find the executable setup program in Windows folder, double-click it: Need help? Visit: coolgear.com/support...
- Page 5 You can save the current port states by clicking the Save Port States button ● 3. To use the console utility CUSBC to control the USB devices, please run Command Prompt as follows: To see all CUSBC commands, type: CUSBC /? To query all Hubs connected: CUSBC /Q Need help? Visit: coolgear.com/support...
-
Page 6: Restore To Factory Settings
All ports are On ● The password: pass ● 6. Environmental Specifications Operating temp.: 0 to 55°C (32 to 131°F) Operating humidity: 5 to 95% RH Dimensions (LxWxH): 197.7x55.5x31.0 mm (7.78 x 2.18 x 1.22 in) Need help? Visit: coolgear.com/support... - Page 7 Technical Support When you reach out to Coolgear support, you’ll find yourself in the hands of a solution-oriented and knowledgeable expert ready to answer whatever question you throw at them. If you ever need help with your product, visit coolgear.com/support for support tickets, downloads, and other support resources.
- Page 8 (iv) normal wear and tear; (v) damage to or loss of repaired or replaced Products during shipping by Coolgear except when such damage or loss is caused by poor or inadequate packaging by Coolgear; or (vi) Products purchased outside the United States.
