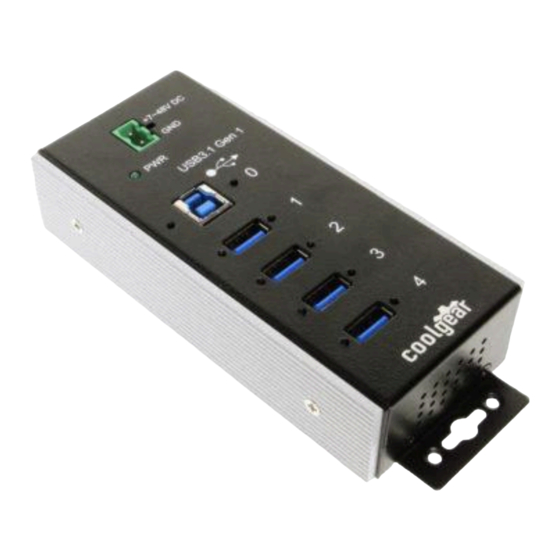

- Page 1 4 Port Industrial High Temperature USB 3.2 Gen 1 Hub w/Surge Protection Model Number: CG-G14PHHT Installation Guide Coolgear, Inc. Version: 1.0 Date: 04/17/2024...
- Page 2 First Release 1. Introduction Thank you for purchasing Coolgear’s 4 Port Industrial High Temperature USB 3.2 Gen 1 Hub.Thank you for purchasing this Super-speed 4-port USB3.1 Gen 1 (or called USB3.0 before) industrial hub. It provides an ideal solution to expand 4 USB3.1 Gen 1 ports from one single USB3.1 host port.
-
Page 3: Connector Layout
GND) terminal block connector is used to connect external power to the hub, the voltage can be in the range from +7V to 48V DC. WARNING!! Please make sure the polarity of the input power should be correctly matched with the terminal block pins to function properly. Need help? Visit: coolgear.com/support... -
Page 4: Hardware Installation
To check the USB3.1 Gen 1 hub installation in Windows device manager, please follow the following steps: Click Start Control Panel System Device Manager button Double click Universal Serial Bus Controller Double click Generic USB Hub, the message will show that this device is working properly. Need help? Visit: coolgear.com/support... -
Page 5: Environmental Specifications
– Installation Guide 4 Port Industrial High Temperature USB 3.2 Gen 1 Hub 5. Environmental Specifications Operating temp.: 0 to 55°C (32 to 131°F) Operating humidity: 5 to 95% RH Dimensions (LxWxH): 6.41”(L)x2.48”(W)x1.71”(H) (163.0x63.0x31.0 mm) Need help? Visit: coolgear.com/support... - Page 6 Technical Support When you reach out to Coolgear support, you’ll find yourself in the hands of a solution-oriented and knowledgeable expert ready to answer whatever question you throw at them. If you ever need help with your product, visit coolgear.com/support for support tickets, downloads, and other support resources.
- Page 7 (iv) normal wear and tear; (v) damage to or loss of repaired or replaced Products during shipping by Coolgear except when such damage or loss is caused by poor or inadequate packaging by Coolgear; or (vi) Products purchased outside the United States.
