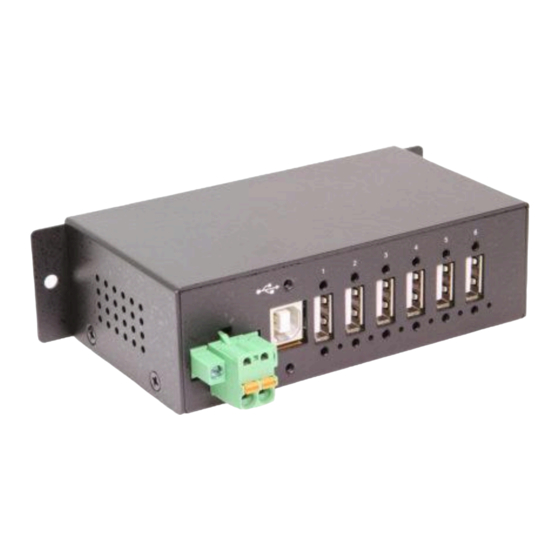

- Page 1 6 port Managed USB 2.0 Hub w/15KV ESD Surge Protection Model Number: CG-6PU2MGD Installation Guide Coolgear, Inc. Version: 1.0 Date: 05/06/2024...
-
Page 2: Table Of Contents
First Release 1. Introduction Thank you for purchasing Coolgear’s 6 port Managed USB 2.0 Hub. Thank you for purchasing this 6-port Managed USB2.0 hub. The High-speed Hub is supplied with managing software utilities which can turn on/off the bus power of each downstream device or even reset the entire hub by user or application programs. -
Page 3: Hardware Installation
If the wire is too soft to be inserted into the contact hole, you need to release the latch string with the above tool, insert the wire then release the latch spring to latch the wire. Need help? Visit: coolgear.com/support... -
Page 4: Usb Hub Administrator Utilities Installation
The Hub supports managing utilities called USB Hub Administrator for major recent Windows (XP and above) and Linux: The above folders include the software for different platforms. If you are installing it on Windows, please find the executable setup program in Windows folder, double-click it: Need help? Visit: coolgear.com/support... - Page 5 ● Click on the numeric (indicate the Port number) button to turn On/Off the USB port ● You can save the current port states by clicking the Save Port States button To use the console utility CUSBC to control the USB devices, please run Command Prompt as follows: Need help? Visit: coolgear.com/support...
-
Page 6: Environmental Specifications
All ports are On ● The password: pass ● 5. Environmental Specifications Operating temp.: 0 to 55°C (32 to 131°F) Operating humidity: 5 to 95% RH Dimensions (LxWxH): 133.0 x 61.5x 36.3 mm (5.2 x 2.42 x 1.43 in) Need help? Visit: coolgear.com/support... - Page 7 Technical Support When you reach out to Coolgear support, you’ll find yourself in the hands of a solution-oriented and knowledgeable expert ready to answer whatever question you throw at them. If you ever need help with your product, visit coolgear.com/support for support tickets, downloads, and other support resources.
- Page 8 (iv) normal wear and tear; (v) damage to or loss of repaired or replaced Products during shipping by Coolgear except when such damage or loss is caused by poor or inadequate packaging by Coolgear; or (vi) Products purchased outside the United States.
