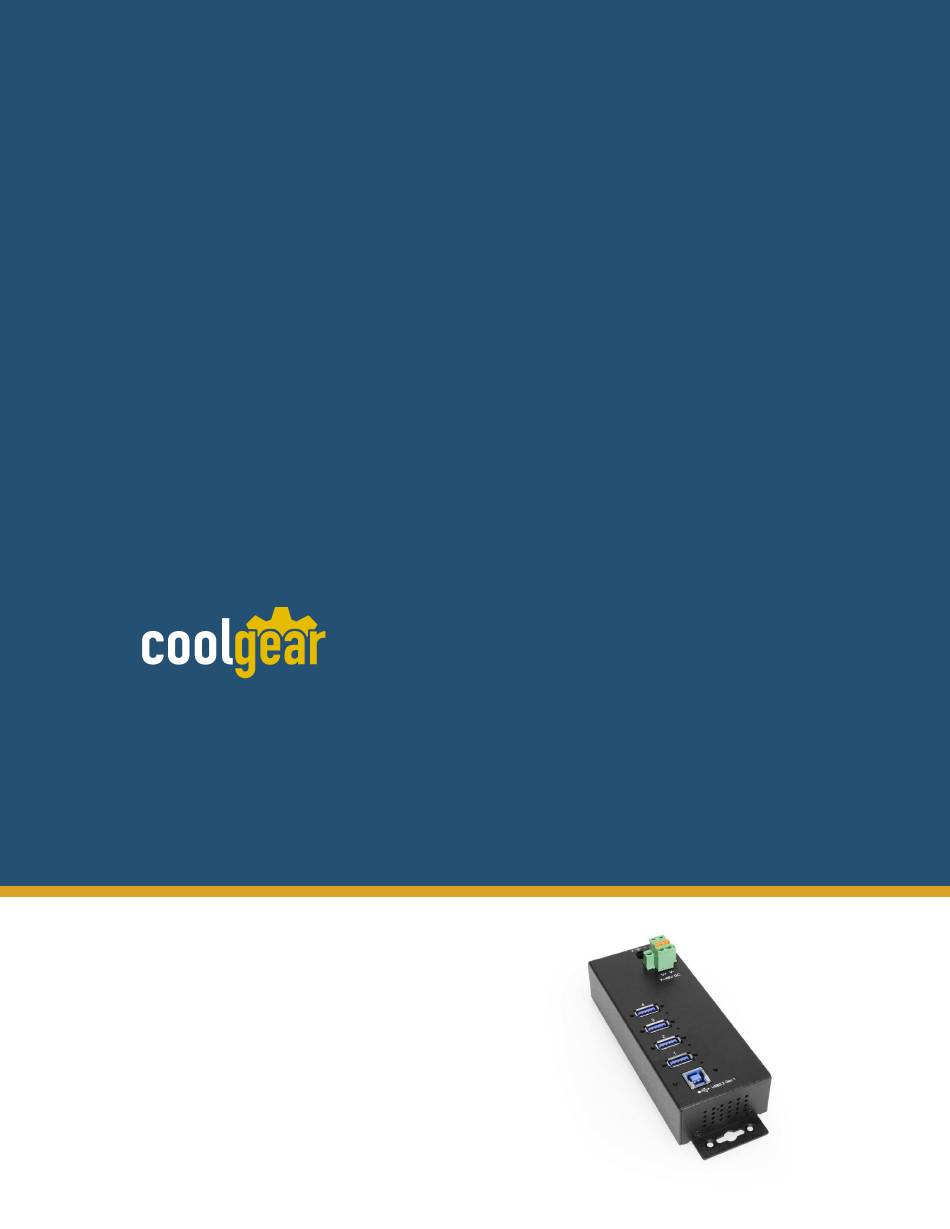

- Page 1 4-Port Managed USB3.2 Gen 1 Metal Hub w/15KV ESD Surge Protection and Rack/DIN-RAIL Mounting Model Number: CG-4Pu3MGDv2 Installation Guide Coolgear, Inc. Version: 1.0 Date: 04/03/2024...
-
Page 2: Table Of Contents
First Release 1. Introduction Thank you for purchasing Coolgear’s 4-Port Managed USB3.2 Gen 1 Metal Hub. The Super-speed Hub is supplied with managing software utilities which can turn on/off the bus power of each downstream device or even reset the entire hub by user or application programs. -
Page 3: Connector Layout
+7V to 48V DC. Please note that don’t connect power on both connectors simultaneously. WARNING!! Please make sure the polarity of the input power should be correctly matched with the terminal block pins to function properly. Need help? Visit: coolgear.com/support... -
Page 4: Hardware Installation
4. Connect the USB devices to the downstream ports of this hub. 5. Mount your hub on the wall or DIN RAIL (with optional mounting kit) if required. Need help? Visit: coolgear.com/support... -
Page 5: Usb Hub Administrator Utilities Installation
To check the USB3.2 Gen 1 hub installation in Windows Device Manager, please follow the following steps: 1. Click Start Control Panel System Device Manager button 2. Double click Universal Serial Bus Controller 3. Double click Generic USB Hub, the message will show that this device is working properly. Need help? Visit: coolgear.com/support... - Page 6 ● Click the item on the list to select the Hub to control ● Click on the numeric (indicate the Port number) button to turn On/Off the USB port ● You can save the current port states by clicking the Save Port States button Need help? Visit: coolgear.com/support...
-
Page 7: Restore To Factory Settings
2. On the side of your hub, locate the hole of the Restore Factory Settings button: 3. Use a paper clip or similar object to press and hold the Restore Factory Settings button, while still holding the button power on the hub. Need help? Visit: coolgear.com/support... -
Page 8: Environmental Specifications
Within Every Great Machine For over 20 years our rugged, off-the-shelf USB hubs, chargers, and serial products are ready to go for your next project. Based in the US, Coolgear has successfully engineered and deployed millions of connectivity solutions into industrial, medical, automotive, commercial, and aerospace industries. - Page 9 (iv) normal wear and tear; (v) damage to or loss of repaired or replaced Products during shipping by Coolgear except when such damage or loss is caused by poor or inadequate packaging by Coolgear; or (vi) Products purchased outside the United States.
