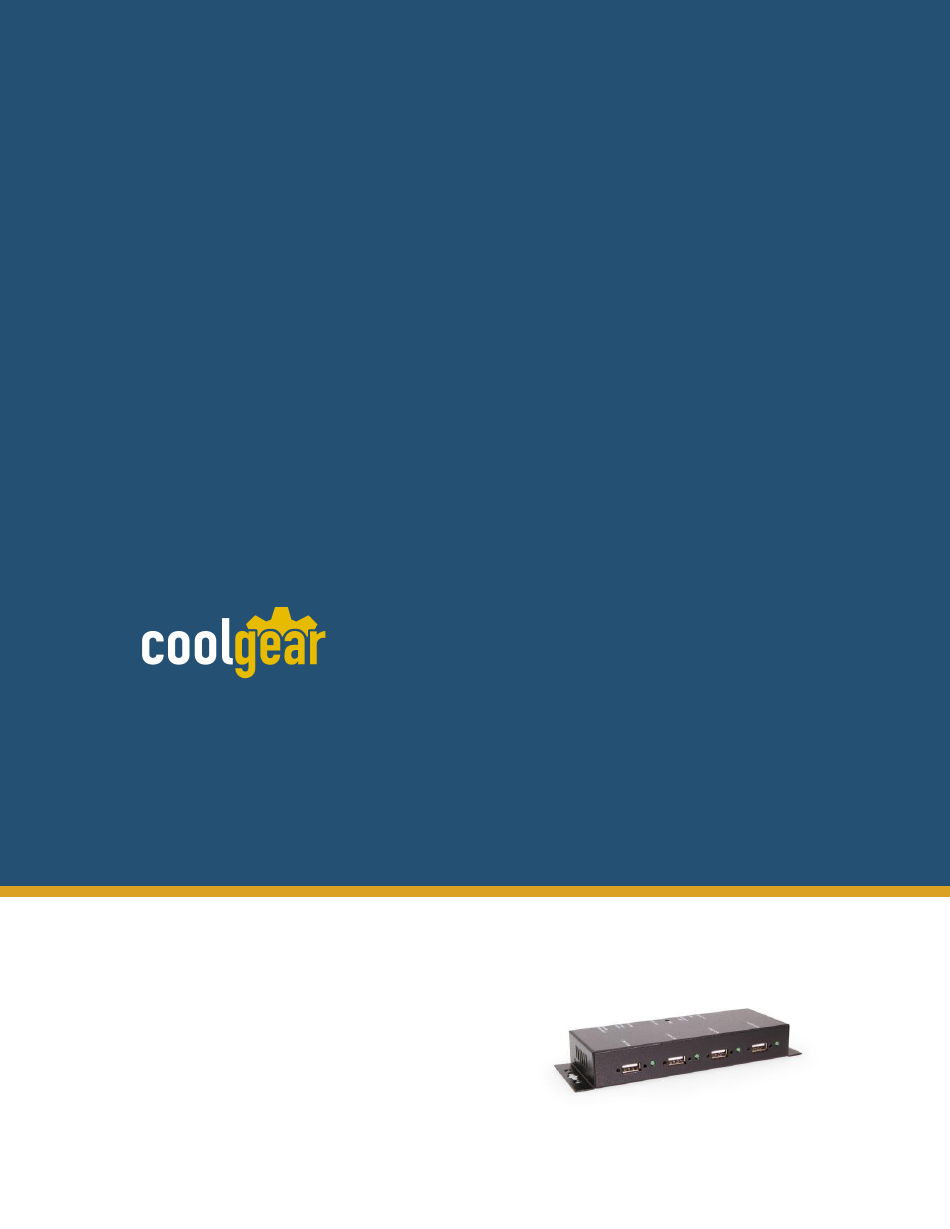

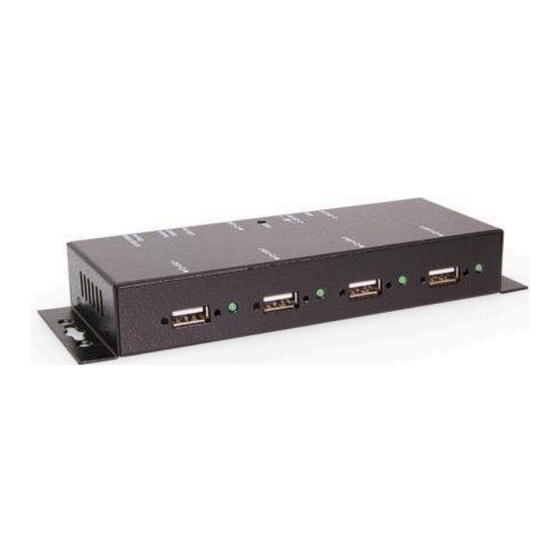

- Page 1 16-Port USB3.1 Gen 1 Metal Hub w/ 15KV ESD Surge Protection and DIN RAIL Mounting Kit Model Number: CG-16PU31H Installation Guide Coolgear, Inc. Version: 1.0 Date: 04/03/2024...
- Page 2 First Release 1. Introduction Thank you for purchasing Coolgear’s 16-Port USB3.1 Gen 1 Metal Hub. It provides an ideal solution to expand 16 USB3.1 Gen 1 ports from the USB3.1 Gen 1 host port. It provides a wide range self power source (+7~24VDC from its 2-pin Terminal Blocks) to supply enough power on USB3.1 Gen 1 buses.
- Page 3 Gen 1 cable. Please connect the type-A end connector of the cable to your PC’s host USB3.1 Gen 1 port, then insert the type-B end plug to this hub. Since the USB hub is plug-and-play, you don’t have to turn off your host computer when installing the hub. Need help? Visit: coolgear.com/support...
- Page 4 To check the USB3.1 Gen 1 hub installation in Windows Device Manager, please follow the following steps: Click Start Control Panel System Device Manager button Double click Universal Serial Bus Controller Double click Generic USB Hub, the message will show that this device is working properly. Need help? Visit: coolgear.com/support...
- Page 5 16-Port USB3.1 Gen 1 Metal Hub – Installation Guide 5. Environmental Specifications Operating temp.: 0 to 55°C (32 to 131°F) Operating humidity: 5 to 95% RH Dimensions (LxWxH): 5.22”(L)x2.56”(W)x1.89”(H) (132.50x65.0x48.2mm) 6. Mechanical Drawings Unit: mm Need help? Visit: coolgear.com/support...
- Page 6 Technical Support When you reach out to Coolgear support, you’ll find yourself in the hands of a solution-oriented and knowledgeable expert ready to answer whatever question you throw at them. If you ever need help with your product, visit coolgear.com/support for support tickets, downloads, and other support resources.
- Page 7 (iv) normal wear and tear; (v) damage to or loss of repaired or replaced Products during shipping by Coolgear except when such damage or loss is caused by poor or inadequate packaging by Coolgear; or (vi) Products purchased outside the United States.
