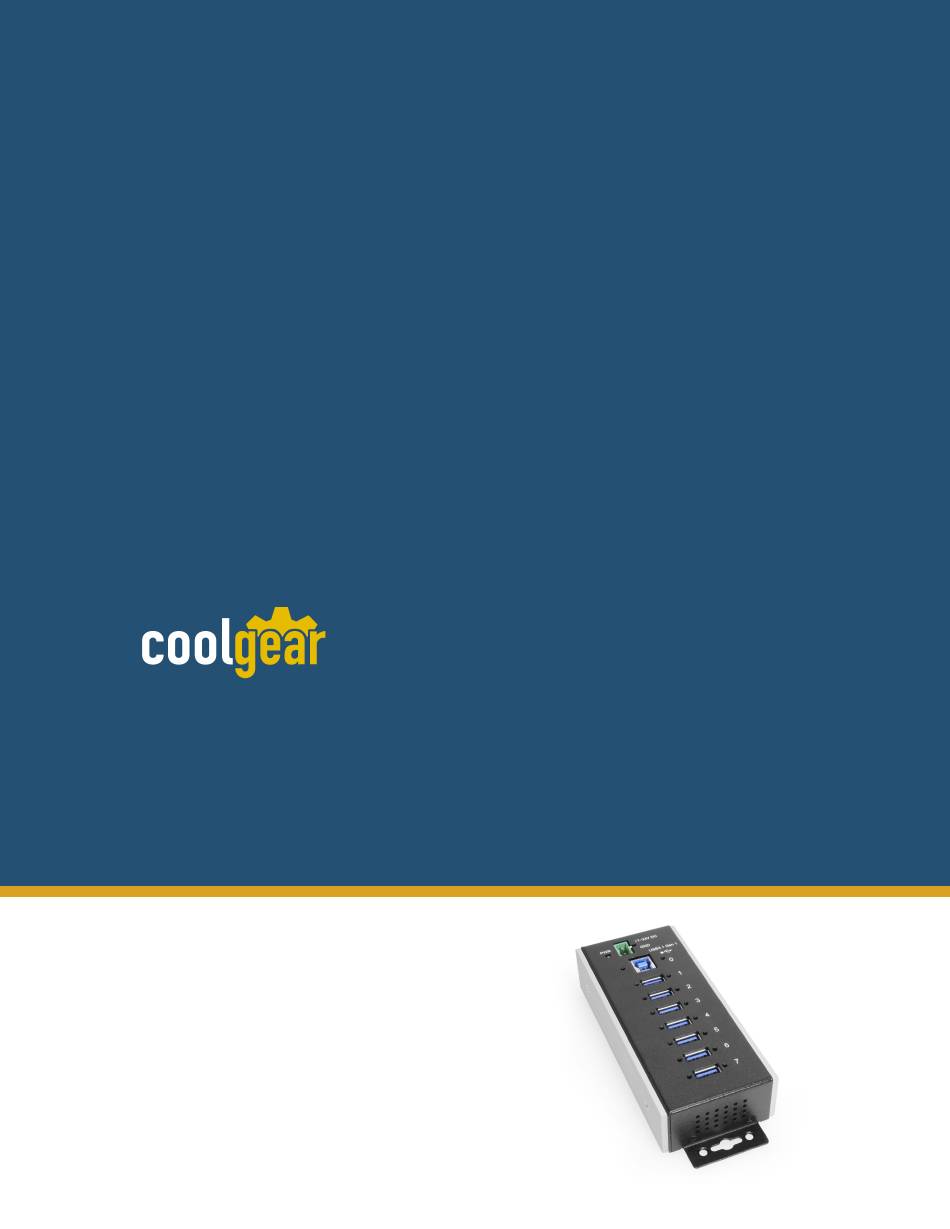

- Page 1 7 Port USB 3.2 Gen 1 Industrial Wide Temp. Range Hub Model Number: CG-G17PHHT Installation Guide Coolgear, Inc. Version: 1.0 Date: 05/07/2024...
-
Page 2: Connector Layout
First Release 1. Introduction Thank you for purchasing Coolgear’s 7 Port USB 3.2 Gen 1 Industrial Wide Temp. Range Hub. It provides an ideal solution to expand 7 USB3.0 ports from one single USB3.0 host port. It provides a wide range self power source (+7~40VDC from 2-pin Terminal Blocks) to provide enough power on USB3.0 buses. -
Page 3: Hardware Installation
This can be accomplished by touching a bare metal chassis rail after you have turned off the power. Apply DC power (range from +7V to 40V) to the 2-pin Terminal Block Connector. The hub was self-powered by this connector. Need help? Visit: coolgear.com/support... - Page 4 To check the USB3.0 hub installation in Windows device manager, please follow the following steps: Click Start Control Panel System Device Manager button Double click Universal Serial Bus Controller Double click Generic USB Hub, the message will show that this device is working properly. Need help? Visit: coolgear.com/support...
-
Page 5: Environmental Specifications
Within Every Great Machine For over 20 years our rugged, off-the-shelf USB hubs, chargers, and serial products are ready to go for your next project. Based in the US, Coolgear has successfully engineered and deployed millions of connectivity solutions into industrial, medical, automotive, commercial, and aerospace industries. - Page 6 (iv) normal wear and tear; (v) damage to or loss of repaired or replaced Products during shipping by Coolgear except when such damage or loss is caused by poor or inadequate packaging by Coolgear; or (vi) Products purchased outside the United States.
