- Page 1 4 Port USB 3.2 Gen 1 Type-C Hub w/ESD Surge Protection & Screw Locking Ports Model Number: CG-4U3CML Installation Guide Coolgear, Inc. Version: 1.0 Date: 05/06/2024...
-
Page 2: Connector Layout

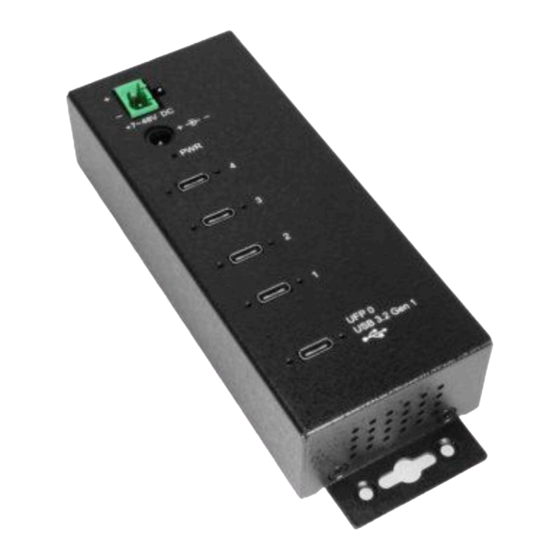

First Release 1. Introduction Thank you for purchasing Coolgear’s 4 Port USB 3.2 Gen 1 Type-C Hub .this Super-speed 4-port USB3.2 Gen 1 (usually called USB3.0, USB3.1 Gen 1 too) Type-C hub. It provides an ideal solution to expand 4 Type-C USB3.2 Gen 1 ports. It provides a self power input (+7~48V DC from 2-pin Terminal Blocks or the DC-Jack) to provide enough power on USB3.2 downstream facing ports. -
Page 3: Hardware Installation
It will NOT affect your USB function. Connect the USB devices to the downstream ports of this hub. Mount your hub on the wall or DIN RAIL if required. Need help? Visit: coolgear.com/support... -
Page 4: Checking The Hub Installation
Double click Generic USB Hub, the message will show that this device is working properly. 5. Environmental Specifications Operating temp.: 0 to 55°C (32 to 131°F) Operating humidity: 5 to 95% RH Dimensions (LxWxH): 163 x 55.0x 31.2 mm (6.41 x 2.16 x 1.22 in) Need help? Visit: coolgear.com/support... -
Page 5: Power Requirements
Within Every Great Machine For over 20 years our rugged, off-the-shelf USB hubs, chargers, and serial products are ready to go for your next project. Based in the US, Coolgear has successfully engineered and deployed millions of connectivity solutions into industrial, medical, automotive, commercial, and aerospace industries. - Page 6 (iv) normal wear and tear; (v) damage to or loss of repaired or replaced Products during shipping by Coolgear except when such damage or loss is caused by poor or inadequate packaging by Coolgear; or (vi) Products purchased outside the United States.
