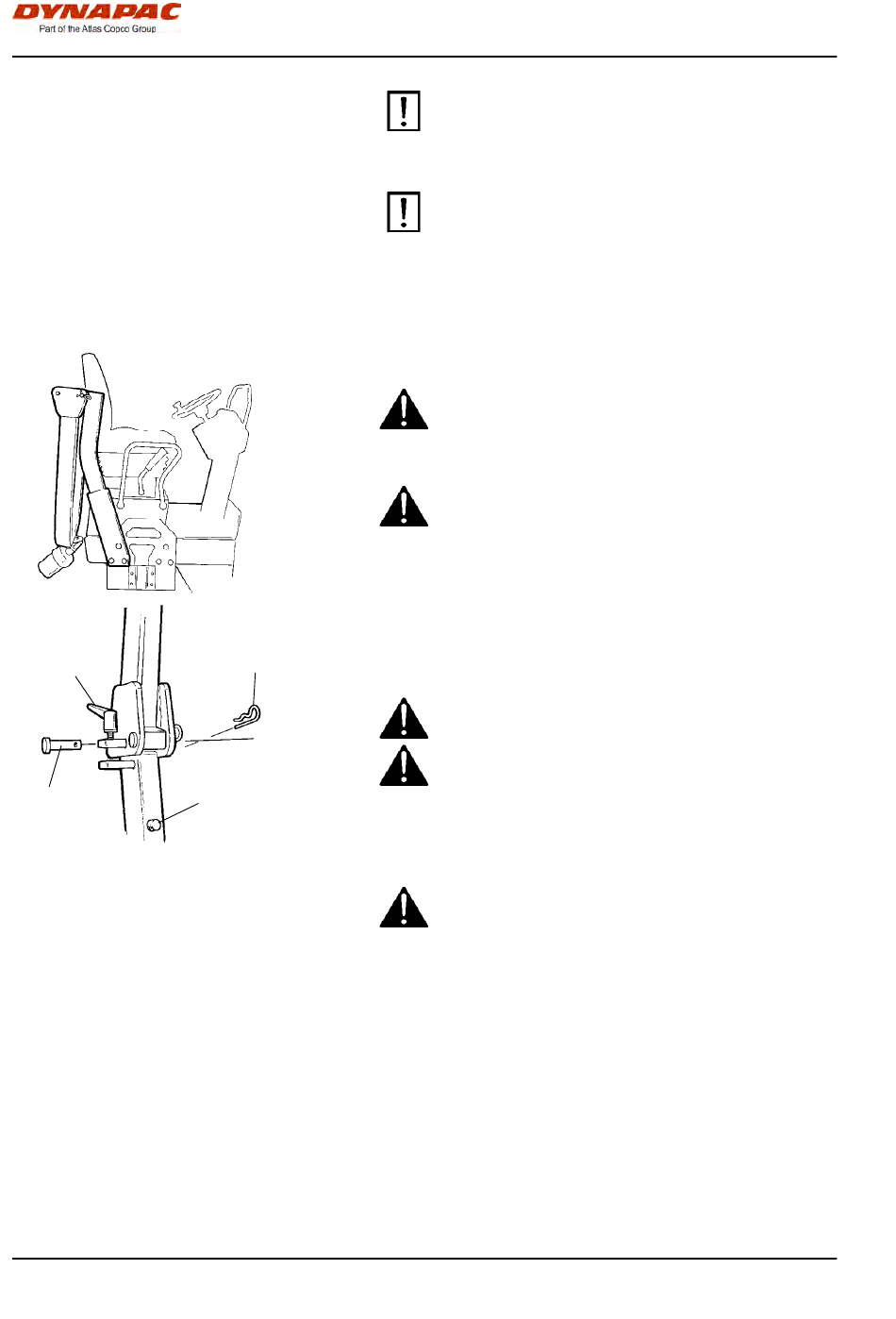

Retractable Rops (Optional) - Dynapac CC1200 Instruction Manual

Fig. Retractable ROPS
1
3
Fig. ROPS locking device
1. Tensioning screw
2. Pin
3. Stud
4. Rubber buffer
52
2
4
ICC1200-1EN2.pdf
Make sure that the chains, blocks and Make sure that the chains, blocks and
attachments in the transport vehicle are approved attachments in the transport vehicle are approved
and have the requisite breaking strain. Check at and have the requisite breaking strain. Check at
regular intervals that the chains are not slack. regular intervals that the chains are not slack.
Remember to reset the steering joint lock to its Remember to reset the steering joint lock to its
open position before starting the roller again. open position before starting the roller again.

Retractable ROPS (Optional)

The machine can be equipped with retractable ROPS.
Risk of crush injury when raising and lowering Risk of crush injury when raising and lowering
ROPS. ROPS.
If the roller is equipped with a retractable ROPS, If the roller is equipped with a retractable ROPS,
the machine must only be operated when it is lifted the machine must only be operated when it is lifted
up and locked. up and locked.
To retract the ROPS, release the tensioning screw (1),
and pull out the pin (2) and stud (3). Do the same on
both sides. Lower the ROPS backwards if there is
space.
Remember to dismantle the rotating warning light Remember to dismantle the rotating warning light
before lowering the ROPS. before lowering the ROPS.
After lowering the ROPS, replace the pin and stud. After lowering the ROPS, replace the pin and stud.
To lift the ROPS proceed in the reserve order.
Always make sure the ROPS is locked in raised Always make sure the ROPS is locked in raised
position before operation. position before operation.
Grease the tensioning screw (1) and stud (3)
periodically.
