RUKO F11 User Manual

Hide thumbs Also See for F11:
Table of Contents

Advertisement

Quick Links

14+
for age
User Manual
v1 . 0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F11 and is the answer not in the manual?

Questions and answers

Bob kaufman
June 6, 2025

I’ve got a strong GPS signal. My battery is charged and I’ve calibrated and yet when I push the joystick to five and seven, the motor does not start.

0

Related Manuals for RUKO F11

Summary of Contents for RUKO F11

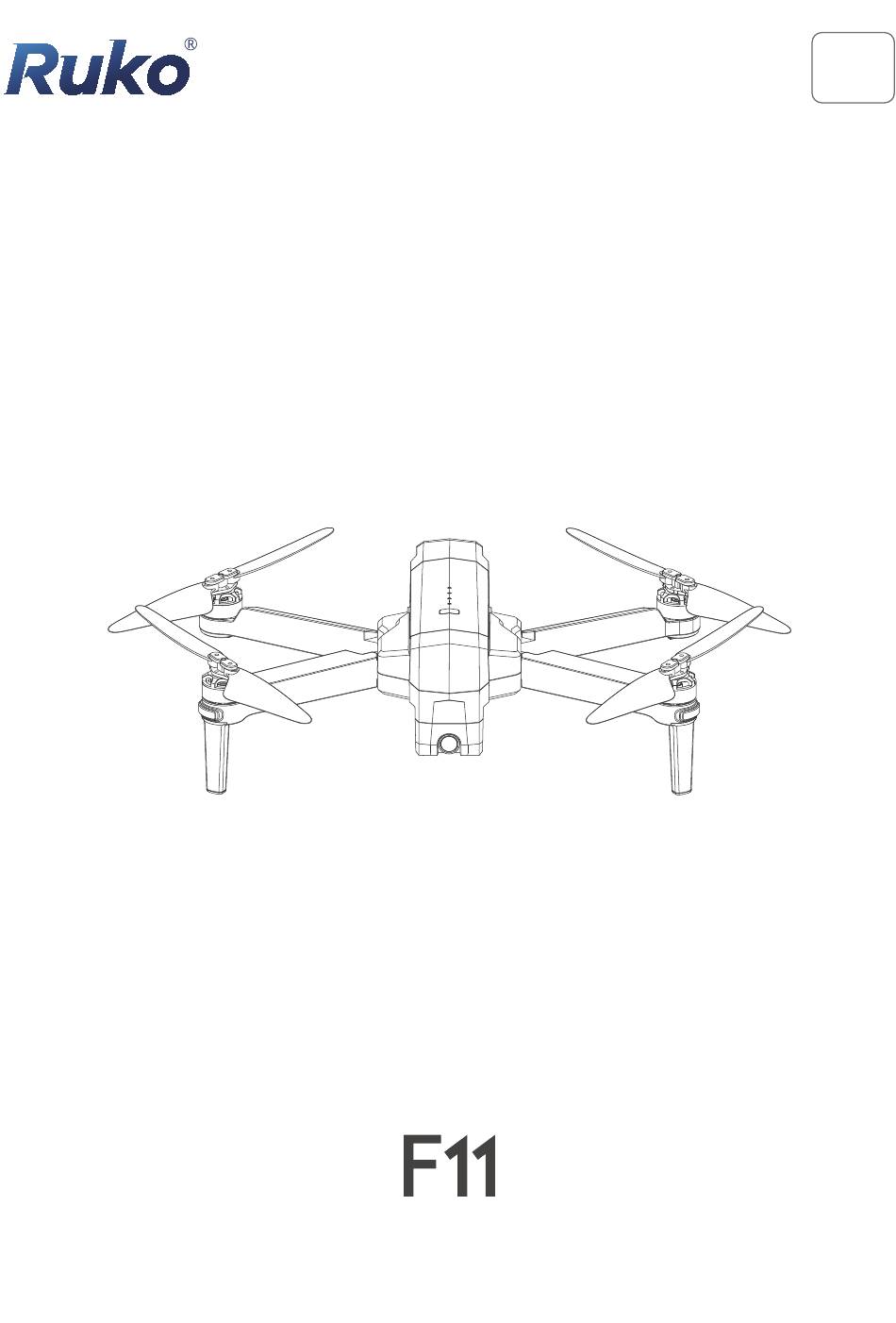

  • Page 1 for age User Manual v1 . 0...

  • Page 3: Table Of Contents

    Contents 1 Using This Manual 1.1 Legend 1.2 Read Before the First Flight 1.3 Download the Ruko Pro APP 1.4 Video Tutorials 2 Product Profile 2.1 Important 2.2 Product List 2.3 Preparing the Aircraft 2.4 Aircraft Diagram 2.5 Transmitter Diagram 3 Aircraft 3.1 Three Gears Speed of the Aircraft...
  • Page 4 6.1 Flight Environment Requirements 6.2 Pre-Flight Checklist 6.3 Calibration Before Flight 6.4 Starting/Stopping the Motors 6.5 Automatic Take-off / Automatic Landing 6.6 How to take off the Ruko F11 Drone 6.7 Aerial Photography Tips & Tricks 7 Appendix 7.1 Specifications 7.2 Accessories Support 7.3 Common Problems and Solutions...

  • Page 5: Using This Manual

    2 Product Profile Thank you for purchasing from Ruko. Please read all instructions and warnings carefully before operating. Please also keep this instruction manual for future reference and maintenance. Copyright ©2021 Ruko All Rights Reserved.

  • Page 6: Important

    F11 User Manual 2.1 Important The Ruko F11 is NOT a toy and is not suitable for people under the age of 14. It requires correct assembly and debugging to avoid any accident before every flight. Inappropriate use of the product could result in personal injury or property damages.

  • Page 7: Preparing The Aircraft

    2.4 Aircraft Diagram High-definition Camera LED Indicator Light ④ ① Propellers Flight battery ② ⑤ Power button Motor (pointing unclear) ③ ⑥ Copyright ©2021 Ruko All Rights Reserved.

  • Page 8: Transmitter Diagram

    GPS signal problems (commercial class), the landing position may be slightly different from the take-off position. The deviation range is about in 10 feet(3 meter) diameter); Press the RTH button once again to cancel the intelligent return. Copyright ©2021 Ruko All Rights Reserved.
  • Page 9 Transmitter. Mobile Phone Holder Flip up to open the holder for placing mobile devices. The width of the phone holder is adjustable. The maximum adjustable width is up to 3 inches. Copyright ©2021 Ruko All Rights Reserved.

  • Page 10: Aircraft

    3.1 Three Gears Speed of the Aircraft The F11 has three speed ranges: 14.76 ft/s, 29.53 ft/s, and 39.37 ft/s. The default speed is medium speed. Turn the speed wheel to the right to adjust the flight speed up to 39.37 ft/s, and turn the wheel to the left to slow the Aircraft down to 14.76 ft/s, which provides diverse...

  • Page 11: Return To Home

    Transmitter or tap the return home icon on the Ruko Pro APP to activate RTH. When the Aircraft executes smart RTH within a radius of 98 feet(30 meters), and the Aircraft will return fromthe current altitude to the take-off point. (Pay attention to mainta-ining the flying height to avoid hitting people or obstacles)
  • Page 12 Must pay attention to the flight altitude when the battery is low. Avoid hitting obstacles due to the low flying altitude when returning home with the second-level low battery. The remaining power after returning is related to the return distance, wind speed, and wind direction. Copyright ©2021 Ruko All Rights Reserved.
  • Page 13 3.4 Intelligent Flight Mode F11 has four intelligent flight modes: Route rules, follow mode, surround mode and gesture mode. According to the user's shooting needs, the operation can be completed by one click, which is simple and fast.
  • Page 14 Push the right joystick to cancel the waypoint flight function. Follow Mode Ensure that the Ruko Pro APP has been downloaded and installed on the smartphone; ① Turn on the GPS positioning of the smartphone to connect to the Aircraft WiFi;...
  • Page 15 F 11 User Manual Surround Mode Make sure th at the Ruko Pro APP has been downloaded and installed on the smartphone; ① Connect your smartphone to Aircraft WiFi; ② After the Aircraft takes off, fly it in GPS mode;...

  • Page 16: Propellers 1

    F11 User Manual 3.5 Propellers The propellers on the adjacent motors of the F11 are forward and reverse propellers. The two propellers on the same motor are the same, and the propellers are marked with A and B respectively. The rotation directions of the propellers with the same mark are different.
  • Page 17 F 11 User Manual 3.6 Intelligent Flight Battery The F11 intelligent flight battery has a capacity of 2500mAh, a rated voltage of 11.1 V, and with charge and discharge management functions. This battery uses high-energy and large -capacity batteries to increase the flight time of the Aircraft.
  • Page 18 In a low temperature environment, due to the battery output power limitation, the Aircraft's wind resistance and flight performance will be reduced. Please be careful. You need to be extra cautious when flying in low-temperature and high-altitude environments. Copyright ©2021 Ruko All Rights Reserved.
  • Page 19 It is recommended to use a 5V/2A or 5V/3A charger. If the Aircraft has not been used for a month, the battery must be removed to prevent the battery from being discharged for a long time. Copyright ©2021 Ruko All Rights Reserved.

  • Page 20: Camera Overview

    Rough ground Storing Photos and Videos F11 is equipped with a micro SD card slot for storage space expansion. Card speed: 10M/s; File format: support FAT32 format; Memory capacity: a memory card with a memory capacity of 32G or less.

  • Page 21: Transmitter

    4 Transmitter 4.1 Transmitter Profile F11 Transmitter uses the 2.4 GHz frequency band, and the Transmitter distance is up to 4000 FT (unobstructed and interference-free environment). The foldable handle can stably place the mobile device, and the maximum adjustable width is 3.1 inches.
  • Page 22 Headless mode: ⑦ a. Turn on the headless mode; b. Turn on the blue light. The Transmitter cannot be turned on during charging, and the Transmitter can be turned on after unplugging the charging cable. Copyright ©2021 Ruko All Rights Reserved.
  • Page 23 Recording Button: Press once to switch to recording mode or start/stop recording. Camera Button: Press once to switch to camera mode or take a photo. Camera Button Recording Button Joystick Control Aircraft The control method of the Transmitter joystick is as follows: Copyright ©2021 Ruko All Rights Reserved.
  • Page 24 The joystick offset corresponds to the angle of the Aircraft left and right tilt. The greater the offset, the greater the tilt angle and the faster the flight speed. Copyright ©2021 Ruko All Rights Reserved.

  • Page 25: Communication Range Of Transmitter

    Install the mobile phone into the Transmitter bracket, refer to the aircraft flight direction of the Attitude Indicator in the APP, and the Attitude Indicator points straight ahead (perpendicular to the coordinates), indicating that the Transmitter is facing the Aircraft. Remote controller position Aircraft orientation Copyright ©2021 Ruko All Rights Reserved.

  • Page 26: Linking The Transmitter

    • Flick the left stick of Transmitter up and down, and after the Aircraft emits a beep, it means the linking is successful. • Connect your mobile phone to Aircraft’s WiFi "RUKO-F11-XXXX", tap the APP to enter the control interface; the mobile phone screen displays information such as the Transmitter’s battery signal and camera screen.

  • Page 27: Camera View

    Used to display the GPS signal strength, 3 bars indicate that the GPS signal meets the flight requirements, 1 or 2 bars indicate that the GPS signal is weak, and the flight position needs to be changed. Copyright ©2021 Ruko All Rights Reserved.
  • Page 28 D N/A: Flying distance H N/A: Flying height DS N/A: Flying speed VS N/A: Ascent/decrease speed Attitude Indicator Display information of the orientation of the aircraft, and position of the Transmitter . Remote controller position Aircraft orientation Copyright ©2021 Ruko All Rights Reserved.
  • Page 29 Point and turn off the motors. Auto Takeoff / Landing Click to expand the control panel, long press to make the Aircraft take off or land automatically. Back Tap to return to the home screen. Parameter Copyright ©2021 Ruko All Rights Reserved.
  • Page 30 Show route: turn on or off all flight records of map tracks in the track menu. Display prompt message: Turn on or off the Aircraft status prompt message in the APP. Voice prompt: turn on or off the aircraft status voice prompt of the APP. Copyright ©2021 Ruko All Rights Reserved.

  • Page 31: Flight

    Before using the Ruko Pro App, make sure that the phone has sufficient power. When you use the Ruko Pro App on your mobile phone, please focus on controlling the Aircraft. Do not answer incoming calls, send and receive text messages or use other mobile phone functions during the flight.

  • Page 32: Pre-Flight Checklist

    Connect drone WiFi with your phone, make sure that you have connected the WIFI name. RUKO-F11-XXXX "exactly after App access right and Internets permission with your phone. Make sure the camera is clean. If you need to replace parts, be sure to use original parts. The use of non-original accessories may cause danger to the safe use of the Aircraft.
  • Page 33 Aircraft’s calibration compass. Screen, Transmitter’s battery signal and other information. When the Android phone is connected to Aircraft WiFi (named RUKO-F11-XXXX), as the Aircraft WiFi has no network, wait for about 10-40 seconds on the phone Wifi setting page, the phone will pop up the network setting option to ask whether to continue to connect to Aircraft wifi, please set it continue to use Aircraft wifi, so as not to cause the...
  • Page 34 At this time, the front arm of the Aircraft has a white light and the rear arm has a blue light, and the App prompts that the compass calibration is complete. GeomagneticHor Calibration Geocalibration finished! 3.28ft Please place the airctaft 1 meter high on the ground, nose up, and rorate it 2-3 times. Copyright ©2021 Ruko All Rights Reserved.
  • Page 35 ④ and the rear light becomes steady blue; indicating that the calibration is complete. After the calibration is completed, "Fly" is displayed in the APP, and you can now prepare ⑤ to take off. Copyright ©2021 Ruko All Rights Reserved.

  • Page 36: Starting/Stopping The Motors

    Click the One-key Takeoff button on Transmitter or enter the APP and click OK to take ② off. The Aircraft will take off automatically and hover at a distance of 4 ft from the ground. ③ Copyright ©2021 Ruko All Rights Reserved.
  • Page 37 When the Aircraft is descending, push the throttle lever of the Transmitter up and immediately ② open it to exit the automatic landing process. The Aircraft landed on the ground and turned off the motors by itself. ③ Copyright ©2021 Ruko All Rights Reserved.

  • Page 38: How To Take Off The Ruko F11 Drone

    Turn on the power of Transmitter, push the left joystick up to 12 o'clock and pull it down ③ to 6 o'clock to unlock and pair with Aircraft. Connect the mobile phone to Aircraft's WiFi RUKO-F11-XXXX, open the Ruko Pro APP, and ④ enter the camera interface.

  • Page 39: Appendix

    F 11 User Manual 7 Appendix 7.1 Specifications Parameter Model: F11 Weight (including battery): 520g/18.3oz Flight time: About 30 minutes (under a constant-speed flight in a no-wind environment) WiFi distance: 500m-800m (outdoor, unobstructed, independent) Motor model: 1806 Recovery: Enabled Operating temperature range: 32 degrees Celsius to 104 degrees Celsius (0 degrees...
  • Page 40 Mobile device bracket: 4.7 inches to 6.5* smart phone (mobile phone diagonal) Length) / 2 feet to 3 inches smartphone (mobile phone width) Working temperature: 32 degrees Celsius to 104 degrees Celsius USB Cable Rated power: ≤15W Copyright ©2021 Ruko All Rights Reserved.

  • Page 41: Accessories Support

    Transmitter All of the above accessories can be searched and purchased on Amazon, and you can enter the Ruko store to buy them yourself. Be sure to use original accessories. The use of non-original accessories may cause danger to the safe use of the Aircraft.

  • Page 42: Common Problems And Solutions

    flying direction of the Aircraft to maintain the short direction of the drone strongest signal connection Close unused apps running in the background to Phone performance freezes maintain the best performance of the phone Copyright ©2021 Ruko All Rights Reserved.
  • Page 43 Aircraft before shipping. The product has slight We tested all Aircraft before Therefore, it is inevitable that there will be marks shipping slight traces. However, it can be guaranteed that all Aircraft are 100% brand new Copyright ©2021 Ruko All Rights Reserved.
  • Page 45 rukotoy.com...
