protech prox KS-M333 Quick Reference Manual

KS-M333
Quick
Reference
Guide

Specifications

System
CPU Type Rockchip RK3399 Dual Core A72 +Quad Core A53
Memory 2G LPDDR4 / 4G LPDDR4
Storage 1 x eMMC 16GB / 32GB NAND Flash Memory
Network 1 x 10/100/1000 Base-T Gigabit Ethernet (RJ45)
Power Supply AC 100~240V Power Supply 200W(24V)
System Weight 41 kg (without floor stand) / 71 kg (with floor stand)
Dimensions (WxHxD) 478 x 966 x 73 mm (without stand)
440 x 1780 x 550 mm (with stand)
O.S. Support Android 11
Speaker 2 x 4W Speaker
System Fan 2 x system fan
LED Indicator 1 x LED Indicator available (with Green/Orange/Red)
EMC & Safety CE / FCC / LVD
Operating Display
LCD 32" TFT Backlight (LED) LCD
Max. Resolution FHD 1920 x 1080
Brightness Typ. 400 cd/m²
Touchscreen Projected capacitive touch (USB interface)
Viewing Angle Horizontal: (R) 89°/ (L) 89° / Vertical: (U) 89°/ (D) 89°
External I/O Ports
Ethernet LAN 1 x RJ45 (for System)
Payment LAN 1 x RJ45 (for Credit Card Reader)
Reserved LAN 1 x RJ45 (for Ethernet Printer)
AC Power 1 x AC power socket
Add-ons (optional)
Face Camera 2.0M Face Camera
Barcode Scanner 1D/2D Barcode
Thermal Printer 2" or 3" standalone thermal printer for 80 mm paper roll
Wi-Fi Bluetooth Module WLAN 802.11ac 2T2R+BT4.2 Half Mini Combo Card
Environment
Temperature Operating: 5°C ~ 35°C (41°F ~ 95°F)
Storage: 0°C ~ 60°C (32°F ~ 140°F)
Humidity 20% ~ 85% (no condensation)
Ver. Q1
All Rights Reserved. Copyright 2023
KS-M333

Packing Checklist

If you discover any of the items below are
damaged or lost, please contact your vendor
immediately.
KS-M333
This Quick Reference Guide
Manual / Driver DVD
Door Key

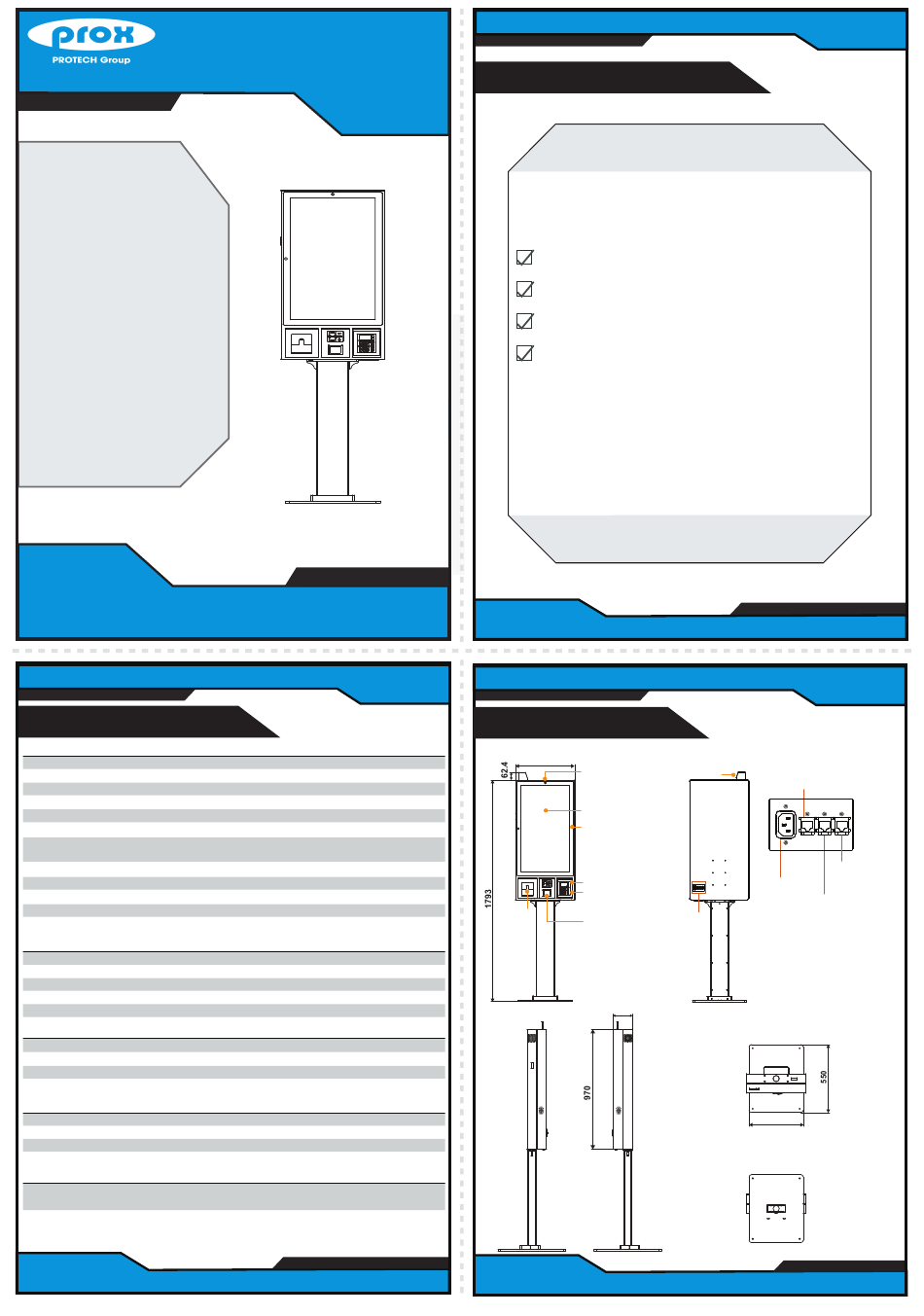

System View

Front View
480
2.0M Face
Camera
32" FHD Display
32" P-CAP Touch
Unattended Credit
Card Holder
Attended Credit
Card Holder Available
2" or 3"
1D/2D Barcode
Thermal
Scanner
Printer
Side View 156.25
KS-M333
x 1
x 1
x 1
x 2
KS-M333
Rear View Rear I/O View
LED
Indication Light
Payment LAN (RJ45)
(for credit card use)
System LAN (RJ45)
(for system use)
AC Power
Socket
Reserved LAN (RJ45)
(for Ethernet Printer)
Rear I/O
Ports
Top View
440
Bottom View
Unit: mm
