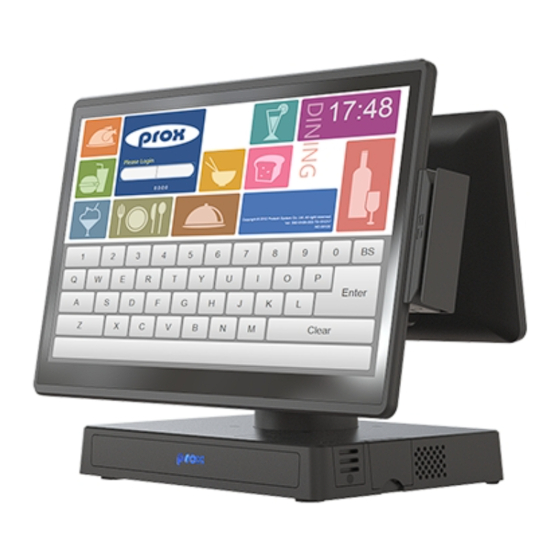

15" high performance pos terminal
Hide thumbs Also See for PA-J511:
Table of Contents

Advertisement

Quick Links

Download this manual
USER
MANUAL
PA-J511 M2
PA-J511
15" High Performance
POS Terminal

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PA-J511 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for protech PA-J511

Summary of Contents for protech PA-J511

  • Page 1 USER MANUAL PA-J511 15" High Performance POS Terminal PA-J511 M2...
  • Page 2 PA-J511 15” High Performance POS Terminal COPYRIGHT NOTICE & TRADEMARK All trademarks and registered trademarks mentioned herein are the property of their respective owners. This manual is copyrighted in Apr. 2023. You may not reproduce or transmit in any form or by any means, electronic, or mechanical, including photocopying and recording.
  • Page 3 FCC NOTICE This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 4: Table Of Contents

    Contents Revision History ..................... v Introduction ..................1-1 About This Manual ..............1-2 Getting Started ..................2-1 Package List ................2-2 System Overview ............... 2-3 2.2.1 Panel PC ................2-3 2.2.2 Normal Stand Only.............. 2-4 2.2.3 Normal Stand with 10.1" 2nd Display ......... 2-5 System Specifications ..............
  • Page 5 3.5.8 Dual USB 2.0 Ports (USB2) ..........3-13 3.5.9 Dual USB 3.0 Ports (USB1) ..........3-13 3.5.10 2nd Display Port (MDP2) ..........3-14 3.5.11 HDMI Port Connector (HDMI1) ......... 3-15 3.5.12 Cash Drawer Port (DRW) ..........3-16 3.5.13 Internal USB Wafer (JUSB9) ..........3-19 3.5.14 Internal USB Wafer (JUSB7) ..........
  • Page 6 3.8.7 Backlight Voltage Selection (JP_INV1) ......3-39 3.8.8 LVDS Panel Voltage Control Selection (JP_VDD1) ..3-39 3.8.9 LVDS Backlight Control Selection (JP1) ......3-40 Software Utilities ................. 4-1 Introduction................. 4-2 ® 4.1.1 Installing Intel Chipset Software Installation Utility ... 4-3 4.1.2 Installing Graphics Driver Utility ..........
  • Page 7 Appendix A System Diagrams ............ A-1 PPC Memory Maintenance ...............A-2 PPC M.2 2280 Maintenance ..............A-4 PA-J511 Memory Maintenance ..............A-5 PA-J511 M.2 2280 Maintenance ..............A-7 How To Turn System Touchscreen ............A-8 2nd Display Assembly ................A-9 VFD Module Assembly ................A-12 iButton Module Assembly ...............A-14 Fingerprint Module Assembly ..............A-15...

  • Page 8: Revision History

    Revision History The revision history of PA-J511 User Manual is described below: Version No. Revision History Date The description of Section 3.5.12 Cash Drawer 2023/04/25 Port (DRW) has been revised. (Page 3-16) Initial Release 2023/4/10...

  • Page 9: Introduction

    Introduction This chapter provides the introduction for PA-J511 system as well as the framework of the user manual. The following topic is included: • About This Manual PA-J511 SERIES USER MANUAL Page: 1-1...

  • Page 10: About This Manual

    Chapter 1 Introduction 1.1 About This Manual Thank you for purchasing our PA-J511 system. The PA-J511 is an updated system designed to be comparable with the highest performance of IBM AT personal computers. The PA-J511 provides faster processing speed, greater expandability and can handle more tasks than before.

  • Page 11: Getting Started

    Getting Started This chapter provides the introduction for the PA-J511 system as well as the framework of the user manual. The following topic is included: • About This Manual • POS System Illustration • System Specifications • Safety precautions Experienced users can jump to Chapter 3 on page 3-1 for a quick start.

  • Page 12: Package List

    2.1 Package List If you discover any of the items listed below are damaged or lost, please contact your local distributor immediately. Item Q’ty PA-J511 POS System Manual / Driver DVD Power Adapter Power Cord PA-J511 Series User Manual Page: 2-2...

  • Page 13: System Overview

    Chapter 2 Getting Started 2.2 System Overview Unit: mm 2.2.1 Panel PC Front View Rear View VESA 75 Side View 60.4 24.4 PA-J511 Series User Manual Page: 2-3...

  • Page 14: Normal Stand Only

    Chapter 2 Getting Started 2.2.2 Normal Stand Only Unit: mm Front View Rear View Type C HDMI DC In LAN COM2 COM1 DRW 1st Dis. 2nd Dis. Side View 24.4 PA-J511 Series User Manual Page: 2-4...

  • Page 15: Normal Stand With 10.1" 2Nd Display

    Chapter 2 Getting Started 2.2.3 Normal Stand with 10.1" 2nd Display Unit: mm Front View Rear View Type C HDMI DC In LAN COM2 COM1 DRW 1st Dis. 2nd Dis. Side View 198.8 24.4 20.2 PA-J511 Series User Manual Page: 2-5...

  • Page 16: System Specifications

    SATA  1 x M.2 2242 / 1 x M.2 2280, SATA interface I/O Ports  1 x Mini DP for Primary display (for Protech original display only) Display  1 x Mini DP for 2nd display (for Protech original display only) ...
  • Page 17  10.1” Monitor with Touch Environment EMC & Safety  CE / FCC Operating Temp.  0°C ~ 35°C (32°F ~ 95°F) Storage Temp.  -5°C ~ 60°C (23°F ~ 140°F) Humidity  20% ~ 90% PA-J511 Series User Manual Page: 2-7...

  • Page 18: Safety Precautions

    Avoid direct sunlight exposure for a long period of time (for example, in a closed car in summer time. Also avoid the system from any heating device.). Or do not use PA-J511 when it has been left outdoors in a cold winter day. •...

  • Page 19: System Configuration

    System Configuration This chapter provides the information for the PA-J511 system. It describes the jumper and connector settings, component locations, and pin assignment. The following topics are included: • System External I/O Port Diagram • Mainboard Component Locations & Jumper Setting •...

  • Page 20: System External I/O Ports Diagram

    USB 3.0 USB 2.0 DC OUT Power USB Side I/O Open up the cover from the right side of PA-J511 Box as shown and find the Side I/O USB7 and Power Button. USB7 Power Button PA-J511 Series User Manual Page: 3-2...

  • Page 21: Mainboard Component Locations & Jumper Setting

    M.2 M Key M2_M1 JPWRBTN1 JUSB7 M.2 E Key USB7 M.2 M Key M2_M2 M2_E1 COM3 COM4 JBAT1 JPCMOS1 HDMI1 USB4 DC_IN1 USB2 USB1 MDP2 MDP1 LAN1 DRW1 COM2 COM1 HDMI COM2 COM1 DC IN PA-J511 Series User Manual Page: 3-3...

  • Page 22: How To Set Jumpers

    PIN1 and PIN2 to create one setting and shorting. You can also select to connect PIN2 and PIN3 to create another setting. The same jumper diagrams are applied all through this manual. The figure below shows what the manual diagrams look and what they represent. PA-J511 Series User Manual Page: 3-4...
  • Page 23 Chapter 3 System Configuration Jumper diagrams Jumper settings PA-J511 Series User Manual Page: 3-5...

  • Page 24: Main Board Connector & Jumper Quick Reference Table

    Power Output 24V Wafer 24V_OUT1 System LED Wafer JSYS_LED1 CPU FAN Wafer CPU_FAN1 Power Button Wafer JPWRBTN1 Battery Wafer JBAT1 System Reset Wafer JRST1 M.2 M-Key Connector for SSD M2_M1, M2_M2 M.2 E-Key Connector for Wi-Fi M2_E1 PA-J511 Series User Manual Page: 3-6...

  • Page 25: Setting Main Board Connectors And Jumpers

    3.5 Setting Main Board Connectors and Jumpers 3.5.1 Power Switch Connector Location: Power Switch Description: To turn on the system, open up the cover from the right side of PA-J511 Box and press the power switch briefly. ACTION ASSIGNMENT Click Release +3.3V...

  • Page 26: 1St Display Port (Mdp1)

    Chapter 3 System Configuration 3.5.3 1st Display Port (MDP1) Connector Location: MDP1 Description: 1st Display Port Proprietary Pin Assignment for Protech Original Display Only: ASSIGNMENT EDP_HPD_C_A DDIA_LANE0_DP_C EDP_BKLT_EN_R DDIA_LANE0_DN_C EDP_BKLT_CTRL_R MDP1 EDP_VDD_EN_R DDIA_LANE1_DP_C USB2_P3_DN_C DDIA_LANE1_DN_C USB2_P3_DP_C HD_GND LINE-OUT-R DDIA_AUX_DP_C LINE-OUT-L...

  • Page 27: Com Ports (Com1, Com2)

    COM1/2_DTRJ_I COM1 / COM1/2_DSRJ_I COM2 COM1/2_RTSJ_I COM1/2_CTSJ_I COM1/2_RI_SEL 3.5.5 COM Connector (COM3, COM4) Connector Location: COM3, COM4 Description: COM Ports, COM4 fixed as RS-232 ASSIGNMENT ASSIGNMENT COM3 / DCD# DSR# RTS# COM4 CTS# DTR# PA-J511 Series User Manual Page: 3-9...
  • Page 28 BIOS for your convenience. Please refer to the descriptions of Serial Port 1, Serial Port 2 and Serial Port 3 Configuration under Advanced > F81967 Super IO Configuration menu in Chapter 5 BIOS Setup. PA-J511 Series User Manual Page: 3-10...

  • Page 29: Lan Port (Lan1)

    LAN1_MDI2_DP Right: Green LAN1_MDI2_DN LAN1_MDI3_DP LAN1 LAN1_MDI3_DN LAN LED Indicator: Orange Color Blinking 1G Giga LAN Message Active Green Color Blinking 2.5G Giga LAN Message Active Yellow Color On LAN switch / hub connected. PA-J511 Series User Manual Page: 3-11...

  • Page 30: Usb 2.0 Port (Usb4)

    Chapter 3 System Configuration 3.5.7 USB 2.0 Port (USB4) Connector Location: USB4 Description: USB 2.0 Port ASSIGNMENT USB_PW4 USB2_P4_DN USB2_P4_DP USB4 (USB 2.0) PA-J511 Series User Manual Page: 3-12...

  • Page 31: Dual Usb 2.0 Ports (Usb2)

    Dual USB 3.0 Ports (USB1) Connector Location: USB1 Description: USB 3.0 Type A Ports USB 3.0 ASSIGNMENT ASSIGNMENT USB_PWR1 USB_PWR2 USB2_P1_DN USB2_P2_DN USB2_P1_DP USB2_P2_DP USB31_P1_RX_DN USB31_P2_RX_DN USB31_P1_RX_DP USB31_P2_RX_DP USB1 (USB3.0) USB31_P1_TX_DN USB31_P2_TX_DN USB31_P1_TX_DP USB31_P2_TX_DP PA-J511 Series User Manual Page: 3-13...

  • Page 32: 2Nd Display Port (Mdp2)

    Chapter 3 System Configuration 3.5.10 2nd Display Port (MDP2) Connector Location: MDP2 Description: 2nd Display Port Proprietary Pin Assignment for Protech Original Display Only: ASSIGNMENT EDP_HPD_C_B DDIB_LANE0_DP_C 2ND_BKLT_EN DDIB_LANE0_DN_C 2ND_BKLT_CTRL MDP2 2ND_VDD_EN DDIB_LANE1_DP_C USB2_P6_DN_C DDIB_LANE1_DN_C USB2_P6_DP_C DDIB_AUX_DP_C DDIB_AUX_DN_C V24P0 PA-J511 Series User Manual...

  • Page 33: Hdmi Port Connector (Hdmi1)

    Chapter 3 System Configuration 3.5.11 HDMI Port Connector (HDMI1) Connector Location: HDMI1 Description: Display Port Connector HDMI1 ASSIGNMENT ASSIGNMENT HDMI_P2 HDMI_N2 HDMI_P1 HDMI_N1 HDMI_P0 HDMI_N0 HDMI_CLKP HDMI_CLKN HDMI_SCL_5V HDMI_SDA_5V V5P0S_HDM HDMI_HPD PA-J5111 Series User Manual Page: 3-15...

  • Page 34: Cash Drawer Port (Drw)

    2E (hex), then write/read data to/from the assigned register through data port 2F (hex). SIO Address LDN06, Cash drawer Open 0x81, bit1 LDN06, Cash drawer Status 0x81, bit0 PA-J511 Series User Manual Page: 3-16...
  • Page 35 To exit the Extended Function Mode, writing 0xAA to the EFER is required. Once the chip exits the Extended Function Mode, it is in the normal running mode and is ready to enter the configuration mode. PA-J511 Series User Manual Page: 3-17...
  • Page 36 ; ------------------------- Enter to extended function mode ------------------------------- ; ----------------------- Select Logical Device 6 of Cash Drawer --------------------- ;---------------------------------Open the Cash Drawer ------------------------------ ;---------------------------------Close the Cash Drawer ------------------------------ ;---------------------------------Exit the extended function mode ------------------------- PA-J511 Series User Manual Page: 3-18...

  • Page 37: Internal Usb Wafer (Jusb9)

    Chapter 3 System Configuration 3.5.13 Internal USB Wafer (JUSB9) Connector Location: JUSB9 Description: Internal USB Wafer JUSB9 ASSIGNMENT USB_PWR9 JUSB9 USB2_P9_DN USB2_P9_DP PA-J511 Series User Manual Page: 3-19...

  • Page 38: Internal Usb Wafer (Jusb7)

    Chapter 3 System Configuration 3.5.14 Internal USB Wafer (JUSB7) Connector Location: JUSB7 Description: Internal USB Wafer (Co-lay with side I/O USB7) JUSB7 ASSIGNMENT USB_PWR7 USB2_P7_DN USB2_P7_DP JUSB7 PA-J511 Series User Manual Page: 3-20...

  • Page 39: M-Key Connector For Ssd (M2_M1)

    Description: M.2 M-Key Connector for SSD M2_M1 ASSIGNMENT ASSIGNMENT V3P3S_M2_CPU V3P3S_M2_CPU PCIE4_RX_N3 PCIE4_RX_P3 M2_LED1 V3P3S_M2_CPU PCIE4_TX_N3 V3P3S_M2_CPU PCIE4_TX_P3 V3P3S_M2_CPU V3P3S_M2_CPU PCIE4_RX_N2 PCIE4_RX_P2 PCIE4_TX_N2 PCIE4_TX_P2 PCIE4_RX_N1 PCIE4_RX_P1 PCIE4_TX_N1 PCIE4_TX_P1 PCIE4_RX_N0_SATA1_RXP PCIE4_RX_P0_SATA1_RXN PCIE4_TX_N0_SATA1_TXN M2_KEYM_CPU_SSD_RST_R_N PCIE4_TX_P0_SATA1_TXP GPPC_D5_SRCCLKREQ0_N WAKE_N CLK_SRC0_DN PA-J511 Series User Manual Page: 3-21...
  • Page 40 Chapter 3 System Configuration ASSIGNMENT ASSIGNMENT CLK_SRC0_DP M_KEY M_KEY M_KEY M_KEY V3P3S_M2_CPU PCIE_SEL V3P3S_M2_CPU V3P3S_M2_CPU PA-J511 Series User Manual Page: 3-22...
  • Page 41 M.2 M-Key Connector for SSD (M2_M2) Connector Location: M2_M2 Description: M.2 M-Key Connector for SSD M2_M1 ASSIGNMENT ASSIGNMENT V3P3S_M2_CPU V3P3S_M2_CPU M2_LED2 V3P3S_M2_CPU V3P3S_M2_CPU V3P3S_M2_CPU V3P3S_M2_CPU PCIE4_RX_N1 SATA_0_RX_DP SATA_0_RX_DN SATA_0_TX_DN M2_KEYM_CPU_SSD_RST_R_N SATA_0_TX_DP GPPC_D5_SRCCLKREQ0_N WAKE_N CLK_SRC1_DN PA-J511 Series User Manual Page: 3-23...
  • Page 42 Chapter 3 System Configuration ASSIGNMENT ASSIGNMENT CLK_SRC1_DP M_KEY M_KEY M_KEY M_KEY V3P3S_M2_1 V3P3S_M2_1 V3P3S_M2_1 PA-J511 Series User Manual Page: 3-24...

  • Page 43: E-Key Connector For Wi-Fi (M2_E1)

    Description: M.2 E-Key Connector for Wi-Fi M2_E1 ASSIGNMENT ASSIGNMENT V3.3A_WLAN V3.3A_WLAN M_USB2_P10_DP M.2_WLAN_LED1_N M_USB2_P10_DN AVS_I2S2_SCLK_R AVS_I2S2_SFRM_R AVS_I2S2_RXD_R AVS_I2S2_TXD_R M.2_BT_LED2_N UART_BT_WAKE_N_R SIO_UART0_RXD_R E-KEY E-KEY E-KEY E-KEY E-KEY E-KEY E-KEY SIO_UART0_TXD_R E-KEY SIO_UART0_CTS_R SIO_UART0_RTS_R PCIE3_P10_M2_WLAN_TX_DP PCIE3_P10_M2_WLAN_TX_DN PCIE_P4_RXP PCIE_P4_RXN PA-J511 Series User Manual Page: 3-25...
  • Page 44 Chapter 3 System Configuration ASSIGNMENT ASSIGNMENT CLK_SRC5_M2_WLAN_DP M.2_BTWIFI_SUS_CLK CLK_SRC5_M2_WLAN_DN M.2_WLAN_PERST_R_N BT_RF_KILL_N PCIE_CLKREQ1_N WIFI_RF_KILL_N M.2_WLAN_PE_WAKE_N_R V3.3A_WLAN V3.3A_WLAN PA-J511 Series User Manual Page: 3-26...

  • Page 45: Speaker Wafer (Jspk1)

    VOUTN JSPK1 3.5.19 Microphone Connector (JMIC1) Connector Location: JMIC1 Description: Mic Pin Header ASSIGNMENT HD_MIC1-R_L HD_GND HD_MIC1-L_L JMIC1 3.5.20 Power Output 24V Wafer (J24V_OUT1) Connector Location: J24V_OUT1 Power Output 24V Wafer Description: ASSIGNMENT J24V_OUT1 PA-J511 Series User Manual Page: 3-27...

  • Page 46: System Led Wafer (Jsys_Led1)

    Chapter 3 System Configuration 3.5.21 System LED Wafer (JSYS_LED1) Connector Location: JSYS_LED1 Wafer Description: System LED ASSIGNMENT V5P0 JSYS_LED1 3.5.22 CPU Fan Wafer (CPU_FAN1) Connector Location: CPU_FAN1 Description: CPU Fan Wafer ASSIGNMENT V12P0 CPU_FAN1 sense Control PA-J511 Series User Manual Page: 3-28...

  • Page 47: Power Button Wafer (Jpwrbtn1)

    Description: Power Button Wafer ASSIGNMENT V3P3A JPWRBTN1 3.5.24 Battery Wafer (JBAT1) Connector Location: JBAT1 Description: Battery Wafer ASSIGNMENT VRTC_BATT JBAT1 3.5.25 System Reset Wafer (JRST1) Connector Location: JRST1 Description: System Reset Wafer ASSIGNMENT RST_SW JRST1 PA-J511 Series User Manual Page: 3-29...

  • Page 48: Cash Drawer Voltage Selection (Jp3)

    Chapter 3 System Configuration 3.5.26 Cash Drawer Voltage Selection (JP3) Jumper Location: JP3 Description: Cash Drawer Voltage Selection SELECTION JUMPER SETTING JUMPER ILLUSTRATION (Default Setting) PA-J511 Series User Manual Page: 3-30...

  • Page 49: Clear Cmos Data Selection (Jcmos1)

    Note: To clear CMOS data, you must power off the computer and set the jumper to “Clear CMOS” as illustrated above. After five to six seconds, set the jumper back to “Normal” and power on the computer. PA-J511 Series User Manual Page: 3-31...

  • Page 50: A/D Board Component Locations & Jumper Setting

    Chapter 3 System Configuration 3.6 A/D Board Component Locations & Jumper Setting A/D Board: PR-J500 PA-J511 Series User Manual Page: 3-32...

  • Page 51: A/D Board Connector & Jumper Quick Reference Table

    LVDS Panel Voltage Selection JP_VDD1 LVDS Backlight Control CONNECTOR NAME 1st Display Port Connector MDP1 Embedded DisplayPort JEDP2 Connector Speaker Connector JSPK1 Inverter Connector JINV1 LVDS Connector LVDS1 USB 2.0 Connector JUSB1, JUSB2, JUSB3 PA-J511 Series User Manual Page: 3-33...

  • Page 52: Setting A/D Board Connectors And Jumpers

    Chapter 3 System Configuration 3.8 Setting A/D Board Connectors and Jumpers 3.8.1 1st Display Port Connector (MDP1) Connector Location: MDP1 Description: 1st Display Port Connector Proprietary Pin Assignment for Protech Original Display Only: ASSIGNMENT EDP_HPD_C_A DDIA_LANE0_DP_C EDP_BKLT_EN_R DDIA_LANE0_DN_C EDP_BKLT_CTRL_R EDP_VDD_EN_R...

  • Page 53: Embedded Displayport Connector (Jedp2)

    Embedded DisplayPort Connector (JEDP2) Connector Location: JEDP2 Description: Embedded DisplayPort Connector JEDP2 ASSIGNMENT ASSIGNMENT LVDS_VDD EDP_SELF_TEST EDP_HPD NGND EDP_LANE1_DN_C EDP_LANE1_DP_C EDP_LANE0_DN_C EDP_BKLT_EN EDP_LANE0_DP_C DP_BKLT_CTRL EDP_DCR_EN EDP_AUX_DN_C EDP_AUX_DP_C INV_VCC INV_VCC LVDS_VDD INV_VCC LVDS_VDD INV_VCC LVDS_VDD PA-J511 Series User Manual Page: 3-35...

  • Page 54: Speaker Connector (Jspk1)

    Chapter 3 System Configuration 3.8.3 Speaker Connector (JSPK1) Connector Location: JSPK1 Description: Speaker Connector ASSIGNMENT VOUTP VOUTN JSPK1 3.8.4 Inverter Connector (JINV1) Connector Location: JINV1 Description: Inverter Connector ASSIGNMENT INV_VCC INV_VCC LVDS_BKLCTL LVDS_BKLTEN JINV1 PA-J511 Series User Manual Page: 3-36...

  • Page 55: Lvds Connector (Lvds1)

    LVDS Connector (LVDS1) Connector Location: LVDS1 Description: LVDS Connector ASSIGNMENT ASSIGNMENT LVDS_VDD LVDS_CLKB_DN LVDS_CLKB_DP LVDS_B2_DN LVDS_B2_DP LVDS_B1_DN LVDS_B1_DP LVDS_B3_DP LVDS_B3_DN LVDS_B0_DP LVDS_B0_DN LVDS_CLKA_DP LVDS_CLKA_DN LVDS_A2_DP LVDS_A2_DN LVDS_A1_DP LVDS_A1_DN LVDS_A0_DP LVDS_A0_DN LVDS1 LVDS_A3_DP LVDS_A3_DN LVDS_VDD LVDS_VDD PA-J511 Series User Manual Page: 3-37...

  • Page 56: Usb 2.0 Connector (Jusb1, Jusb2, Jusb3)

    USB 2.0 Connector (JUSB1, JUSB2, JUSB3) Connector Location: JUSB1, JUSB2, JUSB3 Description: USB 2.0 Connector JUSB1 ASSIGNMENT ASSIGNMENT V5P0S_USB2 V5P0S_USB1 HUB1_DN2 HUB1_DN1 HUB1_DP2 HUB1_DP1 JUSB1 JUSB2 ASSIGNMENT V5P0S_USB3 HUB1_DN3 HUB1_DP3 JUSB2 JUSB3 ASSIGNMENT V5P0S_USB4 HUB1_DN42 HUB1_DP42 JUSB3 PA-J511 Series User Manual Page: 3-38...

  • Page 57: Backlight Voltage Selection (Jp_Inv1)

    (Default Setting) (VIN_INV) JP_INV1 (VIN_INV) JP_INV1 3.8.8 LVDS Panel Voltage Control Selection (JP_VDD1) Jumper Location: JP_VDD1 LVDS Panel Voltage Control Selection Description: SELECTION JUMPER SETTING JUMPER ILLUSTRATION 3.3V (LVDS_VDD) (Default Setting) JP_VDD1 (LVDS_VDD) JP_VDD1 PA-J511 Series User Manual Page: 3-39...

  • Page 58: Lvds Backlight Control Selection (Jp1)

    Chapter 3 System Configuration 3.8.9 LVDS Backlight Control Selection (JP1) Jumper Location: JP1 LVDS Backlight Control Selection Description: SELECTION JUMPER SETTING JUMPER ILLUSTRATION 3.3V (LVDS_BKLCTL) (Default Setting) (LVDS_BKLCTL) PA-J511 Series User Manual Page: 3-40...

  • Page 59: Software Utilities

    Chipset Software Installation Utility • Installing Graphics Driver Utility ® • Installing Intel Management Engine Components Driver Installer • Installing LAN Driver Utility • Installing Intel Serial I/O Driver Utility ® • Installing Sound Driver Utility PA-J511 Series User Manual Page 4-1...
  • Page 60 Chapter 4 Software 4.1 Introduction Enclosed with the PA-J511 Series package is our driver utilities, which comes in a DVD-ROM format. Refer to the following table for driver locations Filename (Assume that Purpose DVD- ROM drive is D :) D:\Driver\Platform\1_Main...
  • Page 61 The utility pack is to be installed only for Windows 10 64Bit, and it should be installed immediately after the OS installation is finished. Please follow the steps below: Connect the USB DVD-ROM device to PA-J511 and insert the driver disk. Enter the “Main Chip” folder where the Chipset driver is located.
  • Page 62 Chapter 4 Software 4.1.2 Installing Graphics Driver Utility The GRAPHICS interface embedded in PA-J511 can support a wide range of display types. You can have dual displays via LCD and LVDS interfaces and make the system work simultaneously. To install the Graphics driver utility, follow the steps below: Connect the USB DVD-ROM device to PA-J511 and insert the driver disk.
  • Page 63 Intel Management Engine Components Installer Installation To install the ME Driver, follow the steps below: Connect the USB DVD-ROM device to PA-J511 and insert the driver disk Enter the “ME” folder where the driver is located. Click “SetupME.exe” file for driver installation.
  • Page 64 4.1.4 Installing LAN Driver Utility Follow the steps below to install LAN Driver: Connect the USB DVD-ROM device to PA-J511 and insert the driver disk Enter the “LAN Chip” folder where the driver is located. Click “Wired_driver_27.0_x64.exe” file for driver installation.
  • Page 65 The sound function enhanced in this system is fully compatible with Windows 10. To install the Sound Driver, follow the steps below: Connect the USB DVD-ROM device to PA-J511 and insert the driver disk. Open the “sound” folder where the driver is located.

  • Page 66: Bios Setup

    The BIOS Setup Utilities consist of the following menu items: Main Menu • Advanced Menu • Chipset Menu • Security Menu • Boot Menu • Save & Exit Menu • PA-J511 Series User Manual Page 5-1...

  • Page 67: Introduction

    Chapter 5 BIOS Setup 5.1 Introduction The PA-J511 uses an AMI Aptio BIOS that is stored in the Serial Peripheral Interface Flash Memory (SPI Flash) and can be updated. The SPI Flash contains the BIOS Setup program, Power-on Self-Test (POST), the PCI auto-configuration utility, LAN EEPROM information, and Plug and Play support.
  • Page 68 3. The system configuration is reset after the user configures to clear CMOS data via the JCMOS1 jumper. 4. The power of the CMOS RAM became lost and the system configuration has been erased. All the menu settings are described in details in this chapter. PA-J511 Series User Manual Page 5-3...

  • Page 69: Accessing Setup Utility

    Setup program. In a moment, the main menu of the Aptio Setup Utility will appear on the screen: PA-J511 Series User Manual Page 5-4...
  • Page 70 English. You may use <↑> or <↓> key to select among the items and press <Enter> to confirm and enter the sub-menu. The following table provides the list of the navigation keys that you can use while operating the BIOS setup menu. PA-J511 Series User Manual Page 5-5...
  • Page 71 Load the previous configuration values. <F3> Load the default configuration values. <F4> Save the current values and exit the BIOS setup menu. Close the sub-menu. <Esc> Trigger the confirmation to exit BIOS setup menu. PA-J511 Series User Manual Page 5-6...

  • Page 72: Main

    Build Date and Displays the date of the current BIOS No changeable options Time version. Name No changeable options Displays the name of the PCH PCH SKU No changeable options Displays the SKU for the PCH PA-J511 Series User Manual Page 5-7...

  • Page 73: Advanced

    This menu provides advanced the sub-menu items such as CPU Configuration, PCH-FW Configuration, Trusted Computing, ACPI Settings, F81967 Super IO Configuration, Hardware Monitor, F81967 Watchdog, S5 RTC Wake Settings, USB Configuration, Network Stack Configuration and NVMe Configuration. BIOS Advanced Menu PA-J511 Series User Manual Page 5-8...
  • Page 74 F81967 Watchdog F81967 Watchdog parameters. Sub-Menu S5 RTC Wake Settings S5 RTC Wake Parameters. Sub-Menu USB Configuration USB Configuration Parameters. Sub-Menu Network Stack Configuration Network Stack Settings. Sub-Menu NVMe Configuration Sub-Menu NVMe Device Options Settings. PA-J511 Series User Manual Page 5-9...

  • Page 75: Advanced - Cpu Configuration

    Displays the size of L3 Cache. L4 Cache No changeable options Displays the size of L4 Cache. CPU/VMX hardware support for virtual No changeable options machines. SMX/TXT No changeable options Secure Mode extensions support. PA-J511 Series User Manual Page 5-10...

  • Page 76: Advanced - Pch-Fw Configuration

    Description/Purpose ME Firmware Version No changeable options Displays the ME Firmware Version. ME Firmware Mode No changeable options Displays the ME Firmware Mode. ME Firmware SKU No changeable options Displays the ME Firmware SKU. PA-J511 Series User Manual Page 5-11...

  • Page 77: Advanced - Trusted Computing

    Active PCR banks No changeable options Displays the Active PCR banks. Available PCR banks No changeable options Displays the Available PCR banks. - Disabled SHA256 PCR Bank Enables or Disables SHA256 PCR Bank. Enabled (Default) PA-J511 Series User Manual Page 5-12...

  • Page 78: Advanced - Acpi Settings

    OS. - Suspend Disabled Selects the highest ACPI sleep state the ACPI Sleep State S3 (Suspend to RAM) system will enter when the SUSPEND (Default) button is pressed. PA-J511 Series User Manual Page 5-13...

  • Page 79: Advanced - F81967 Super Io Configuration

    Configure the parameters of Serial Port 2 Serial Port 2 Configuration Sub-Menu (COM2). Configure the parameters of Serial Port 3 Serial Port 3 Configuration Sub-Menu (COM3). Configure the parameters of Serial Port 4 Serial Port 4 Configuration Sub-Menu (COM4). PA-J511 Series User Manual Page 5-14...
  • Page 80 - IO=3F8h; IRQ=3,4,5,6,7,9,10,11.12; Selects IRQ and I/O resource Change Settings - IO=2F8h; IRQ=3,4,5,6,7,9,10,11,12; settings for Serial Port 1. - IO=3E8h; IRQ=3,4,5,6,7,9,10,11,12; - IO=2E8h; IRQ=3,4,5,6,7,9,10,11,12; RI (Default) Voltage - 5V Selects COM port voltage - 12V PA-J511 Series User Manual Page 5-15...
  • Page 81 - IO=3F8h; IRQ=3,4,5,6,7,9,10,11.12; Selects IRQ and I/O resource for Change Settings - IO=2F8h; IRQ=3,4,5,6,7,9,10,11,12; the serial port 2. - IO=3E8h; IRQ=3,4,5,6,7,9,10,11,12; - IO=2E8h; IRQ=3,4,5,6,7,9,10,11,12; RI (Default) Voltage - 5V Selects COM port voltage - 12V PA-J511 Series User Manual Page 5-16...
  • Page 82 - IO=3E8h; IRQ=3,4,5,6,7,9,10,11.12; Selects IRQ and I/O resource for Change Settings - IO=2E8h; IRQ=3,4,5,6,7,9,10,11,12; the serial port 3. - IO=3F0h; IRQ=3,4,5,6,7,9,10,11,12; - IO=2E0h; IRQ=3,4,5,6,7,9,10,11,12; RI (Default) Voltage - 5V Selects COM port voltage - 12V PA-J511 Series User Manual Page 5-17...
  • Page 83 No changeable options Serial Port 4. - Auto (Default) - IO=2E8h; IRQ=7; - IO=3E8h; IRQ=3,4,5,6,7,9,10,11.12; Selects IRQ and I/O resource for Change Settings - IO=2E8h; IRQ=3,4,5,6,7,9,10,11,12; the serial port 4. - IO=2F0h; IRQ=3,4,5,6,7,9,10,11,12; - IO=2E0h; IRQ=3,4,5,6,7,9,10,11,12; PA-J511 Series User Manual Page 5-18...

  • Page 84: Advanced - Hardware Monitor

    BIOS Setting Options Description/Purpose Smart Fan Mode Smart Fan Mode Selection. Sub-Menu Configuration Note: No CPU Fan is used on PA-J511. CPU Temperature No changeable options Displays the processor's temperature. System Temperature No changeable options Displays the system's temperature. Displays CPU Fan speed.
  • Page 85 No changeable options VSB5V in supply. Detects and displays the voltage level of VCC12V No changeable options VCC12 in supply. Detects and displays the voltage level of VBAT No changeable options VBAT in supply. PA-J511 Series User Manual Page 5-20...
  • Page 86 Numeric (from 1 to 100) follow different temperature by different duty cycle 1-100. Auto fan speed control. Fan speed will Duty Cycle 1~4 Numeric (from 1 to 100) follow different temperature by different duty cycle 1-100. PA-J511 Series User Manual Page 5-21...

  • Page 87: Advanced - F81967 Watchdog

    255-level watchdog timer. F81967 Watchdog Screen BIOS Setting Options Description/Purpose - Enabled Enables / Disables F81967 Enable Watchdog Disabled (Default) Watchdog timer. Watchdog Timer Count Numeric (from 10 to 255) The number of count for Timer. PA-J511 Series User Manual Page 5-22...

  • Page 88: Advanced - S5 Rtc Wake Settings

    Wake up second Numeric (from 0 to 59) Enters 0-59 to set the wake-up second. Enters 1-5 to set the increased minute(s) for Wake up minute Numeric (from 1 to 5) increase dynamic wake-up time. PA-J511 Series User Manual Page 5-23...

  • Page 89: Advanced - Usb Configuration

    Mass Storage - Floppy their media format. Optical drives are emulated as 'CD-ROM'. Drives with no Devices: - Forced FDD [drive(s)] - Hard Disk media will be emulated according to a drive - CD-ROM type. PA-J511 Series User Manual Page 5-24...

  • Page 90: Advanced - Network Stack Configuration

    Wait time to press ESC key to abort the Numeric (from 0 to 5) time PXE boot. Media detect Numbers of times presence of media will Numeric (from 1 to 50) count be checked. PA-J511 Series User Manual Page 5-25...

  • Page 91: Advanced - Nvme Configuration

    Advanced - NVMe Configuration Menu Path Advanced > NVMe Configuration The NVMe Configuration allows users to view the information about NVMe Device. NVMe Configuration Screen BIOS Setting Options Description/Purpose NVMe Configuration No changeable options Displays NVMe device. PA-J511 Series User Manual Page 5-26...

  • Page 92: Chipset

    (SA) and PCH-IO configuration parameters. Chipset Menu Screen BIOS Setting Options Description/Purpose System Agent (SA) Sets the Parameter for System Agent (SA) Sub-Menu Parameters configuration. PCH-IO Configuration Sub-Menu Sets the Parameter for PCH configuration. PA-J511 Series User Manual Page 5-27...

  • Page 93: System Agent (Sa) Configuration

    System Agent (SA) Configuration Menu Path Chipset > System Agent (SA) Configuration System Agent (SA) Configuration Screen BIOS Setting Options Description/Purpose Memory Sub-Menu Memory Configuration parameters Configuration - Disabled VT-d Enables or Disables VT-d function. Enabled (Default) PA-J511 Series User Manual Page 5-28...
  • Page 94 Size No changeable options Displays the Memory size in the slot. Displays the Number of Ranks in the Number of Ranks No changeable options slot. Display the DIMM Manufacturer Manufacturer No changeable options name. PA-J511 Series User Manual Page 5-29...

  • Page 95: Pch Io Configuration

    Restore AC Power - Power On power is re-applied after a power failure Loss - Power Off (Default) (G3 state). - Disabled (Default) Enables or Disables LPC Debug 80 LPC Debug 80 Port - Enabled Port. PA-J511 Series User Manual Page 5-30...
  • Page 96 Sub-Menu PCI Express M.2 M_KEY settings. (M.2 M_KEY) PCI Express Root Port 5 Sub-Menu PCI Express I225 LAN settings. (I225 LAN) PCI Express Root Port 7 Sub-Menu PCI Express M.2 E_KEY settings. (M.2 E_KEY) PA-J511 Series User Manual Page 5-31...
  • Page 97 Options Description/Purpose - Disabled Enables or Disables the PCI Express PCI Express Root Port 1 - Enabled (Default) Root Port. - Auto (Default) - Gen1 PCIe Speed Configures PCIe Speed. - Gen2 - Gen3 PA-J511 Series User Manual Page 5-32...
  • Page 98 Options Description/Purpose - Disabled Enables or Disables the PCI Express PCI Express Root Port 5 - Enabled (Default) Root Port. - Auto (Default) - Gen1 PCIe Speed Configures PCIe Speed. - Gen2 - Gen3 PA-J511 Series User Manual Page 5-33...
  • Page 99 Options Description/Purpose - Disabled Enables or Disables the PCI Express PCI Express Root Port 7 - Enabled (Default) Root Port. - Auto (Default) - Gen1 PCIe Speed Configures PCIe Speed. - Gen2 - Gen3 PA-J511 Series User Manual Page 5-34...
  • Page 100 SATA Mode Selection - AHCI (Default) operate. - Enabled Enables / Disables SATA Test Mode SATA Test Mode Disabled (Default) (For test only) Serial ATA Port 0~1 No changeable options Displays the SATA device’s name. PA-J511 Series User Manual Page 5-35...

  • Page 101: Security

    Setup utility. Security Menu Screen BIOS Setting Options Description/Purpose Administrator Password can be 3-20 Specifies the administrator password. Password alphanumeric characters. Password can be 3-20 User Password Specifies the user password. alphanumeric characters. PA-J511 Series User Manual Page 5-36...
  • Page 102 <Enter>, and the password dialog entry box appears. 2. Select the configured Administrator Password or User Password that you want to delete. Leave the dialog box blank and press <Enter>. 3. Press <Enter> again when the password confirmation box appears. PA-J511 Series User Manual Page 5-37...

  • Page 103: Boot

    NumLock State - Off powered on. • Off: Disable the NumLock function after the system is powered on. Disabled (Default) Quiet Boot Enables or Disables Quiet Boot options. - Enabled PA-J511 Series User Manual Page 5-38...
  • Page 104 Chapter 5 BIOS Setup BIOS Setting Options Description/Purpose Boot Option - [Drive(s)] Sets the system boot order. #1~#n - Disabled Disabled (Default) Fast Boot Enables or Disables Fast Boot options. - Enabled PA-J511 Series User Manual Page 5-39...

  • Page 105: Save & Exit

    Discard Changes and Reset to discard any changes you have made and restore the factory BIOS defaults. Load User Defaults You may simply press F3 at any time to load the Optimized Values which resets all BIOS settings to the factory defaults. PA-J511 Series User Manual Page 5-40...
  • Page 106 Saves the changes done so far as User No changeable options Defaults Defaults. Restore User Restores the User Defaults to all the setup No changeable options Defaults options. Boot Override - [Drive(s)] Forces to boot from selected [drive(s)]. PA-J511 Series User Manual Page 5-41...

  • Page 107: Appendix A System Diagrams

    Appendix A System Diagrams This appendix includes the easy maintenance diagrams, exploded diagrams of the system and the parts list as well as the part numbers of the PA-J511 system. PPC Memory Maintenance • PPC M.2 2280 Maintenance • PA-J511 Memory Maintenance •...

  • Page 108: Ppc Memory Maintenance

    Step 2: Follow the directions (red arrows) below to separate the PCB Box from the touchscreen of Panel PC. Step 3: Unfasten 5 screws as shown: Unfasten 5 screws. (continued on the next page) PA-J511 Series User Manual Page A-2...
  • Page 109 Step 5: Open the cover and unplug all the connected cables. Step 6: Change the memory and heating pad. Step 7: Re-connect all the unplugged cables and replace all removed screws in the order you dismantled and complete. PA-J511 Series User Manual Page A-3...

  • Page 110: Ppc M.2 2280 Maintenance

    Step 2: Slide a new M.2 2280 into the M2. slot and fasten up the screw to secure the cover and complete. Slide a new M.2 2280 into the M2. slot and fasten up the screw to secure the cover. PA-J511 Series User Manual Page A-4...

  • Page 111: Pa-J511 Memory Maintenance

    Step 3: Move the PCB box outwards slightly as shown (red arrow) and lay the PCB box down on a flat surface. Warning: If you force to move the PCB Box too far away from the POS system, the connected cables inside the system could be damaged. PA-J511 Series User Manual Page A-5...
  • Page 112 LED cable and Wi-Fi antenna if Wi-Fi function is available.) Step 5: Change the memory and heating pad. Step 6: Re-connect all the unplugged cables and replace all removed screws in the order you dismantled. The memory replacement has been finished. PA-J511 Series User Manual Page A-6...

  • Page 113: Pa-J511 M.2 2280 Maintenance

    Appendix A System Diagrams PA-J511 M.2 2280 Maintenance Step 1: Follow the orange arrow to turn the system touchscreen leftwards. Follow the arrow to turn the system touchscreen leftwards. Note: Please refer to the “How To Turn System Touchscreen” section on the next page on how to turn the primary touchscreen properly.

  • Page 114: How To Turn System Touchscreen

    You can turn the POS touchscreen either way. Heed that after you turn the primary touchscreen to the rear side, you must turn the primary touchscreen only in the direction you previously turned. PA-J511 System Top View The primary touchscreen In this example, the primary has been turned as illustrated.

  • Page 115: 2Nd Display Assembly

    Step 5: Fasten the 2 HEX CU BOSS (P/N: 22-298-25018001) to secure the small LCD support cover onto the Tube. Step. 5 M2.5_L6_H18_BOSS P/N: 22-298-25018001 Step. 3 M2.5_L6_H6_ BOSS P/N: 22-298-25006301 Step. 4 Install small LCD support cover on to the Tube. PA-J511 Series User Manual Page A-9...
  • Page 116 Appendix A System Diagrams Step 6: Fasten the 2 screws (P/N: 22-232-40008211) and install 2nd Display onto the back of PA-J511 Panel PC. 2nd Display Step. 6 M4_L8_S+W_Ni P/N: 22-232-40008211 DP cable The small LCD support cover has been installed in the previous step.
  • Page 117 Note 2 screws in Step 2 are used in this step. Step 12: Replace Tube Cap to finish the 2nd Display assembly. Step. 11 M2.5_L6_R_Ni Step. 12 P/N: 22-232-25006811 Replace Tube Cap. Step. 10 Install big LCD support cover. 2nd Display PA-J511 Series User Manual Page A-11...

  • Page 118: Vfd Module Assembly

    P/N: 22-235-40008311 Cable In Step. 5 Wire the USB signal cable into the Tube and out from the top side of the rear I/O panel as illustrated. Cable Out (continued on the next page) PA-J511 Series User Manual Page A-12...
  • Page 119 Step 7: Cut the pieces of Hinge Cover as shown to allow the cable to wire through. Step 8: Replace Tube Cap and Hinge Cover to finish the assembly. Install back Tube Cap. Install back Hinge Cover. PA-J511 Series User Manual Page A-13...

  • Page 120: Ibutton Module Assembly

    Device Connector Step 3: Fasten 2 screws (P/N: 22-215-30060011) to secure i-Button device onto Panel PC. Step. 3 M3_L6_F_B P/N: 22-215-30060011 The i-Button module assembly has been finished as below: i-Button module PA-J511 System PA-J511 Series User Manual Page A-14...

  • Page 121: Fingerprint Module Assembly

    Step 3: Tighten 2 screws (P/N: 82-275-30006018) to secure Fingerprint module onto Panel PC. Step. 3 M3_L6_I_B P/N: 82-275-30006018 Fingerprint module The Fingerprint module assembly has been finished as below: Left Side View of PA-J511 system Fingerprint module PA-J511 Series User Manual Page A-15...

  • Page 122: Barcode Scanner Assembly

    Connector Step 3: Fasten 2 screws (P/N: 22-215-30060011) to secure Barcode Scanner onto Panel PC. Step. 3 M3_L6_F_B P/N: 22-215-30060011 The Barcode Scanner assembly has been finished as below: Barcode Scanner module PA-J511 System PA-J511 Series User Manual Page A-16...

  • Page 123: Msr Module Assembly

    Step 3: Tighten 2 screws (P/N: 82-275-30006018) to secure MSR module onto Panel PC. Step. 3 MSR module M3_L6_I_B P/N: 82-275-30006018 The MSR module assembly has been finished as below: MSR module PA-J511 System PA-J511 Series User Manual Page A-17...

  • Page 124: Pos Type Assembly Exploded Diagram

    POS Type Assembly Exploded Diagram Component Name P/N No. Q’ty 15” LCD PA-J501 Hinge Cover (Black) 30-002-12210514 Round Head With Spring Washer Screw 22-232-40010011 #2 / M4x0.7Px10mm PA-J511 2nd Display PA-J500 Cable Cover (Black) 30-002-12110514 PA-J511 Series User Manual Page A-18...

  • Page 125: Ppc Type Assembly Exploded Diagram

    Appendix A System Diagrams PPC Type Assembly Exploded Diagram Component Name P/N No. Q’ty PA-J511 PPC Box ASM Fillister Head Screw #2 / M4x0.7Px6mm 22-272-40006911 Mini DP Cable (L=270mm) 27-072-51405111 15” LCD Locking Cable Clamp 30-042-32100000 Round Head With Spring Washer Screw 22-232-30060211 M3x0.5Px6mm...

  • Page 126: Appendix B Technical Summary

    This appendix will give you a brief introduction of the allocation maps for the system resources. The following topics are included: • Block Diagram • Interrupt Map • I/O Map • Memory Map • Configuring WatchDog Timer • Flash BIOS Update PA-J511 Series User Manual Page B-1...

  • Page 127: Block Diagram

    Type A x1 Single USB 2.0 USB2.0 SLM9670 Type A x1 COM1 eSPI F81967AD-I USB2.0 (Super IO) Wafer COM2 USB2.0 USB2.0 AUDIO CODEC MIC Wafer Wafer ALC888S-VD2 AUDIO Out USB2.0 USB2.0 Wafer NAU82011VG SPK Wafer PA-J511 Series User Manual Page B-2...

  • Page 128: Interrupt Map

    IRQ 68 Microsoft ACPI-Compliant System IRQ 69 Microsoft ACPI-Compliant System IRQ 70 Microsoft ACPI-Compliant System IRQ 71 Microsoft ACPI-Compliant System IRQ 72 Microsoft ACPI-Compliant System IRQ 73 Microsoft ACPI-Compliant System IRQ 74 Microsoft ACPI-Compliant System PA-J511 Series User Manual Page B-3...
  • Page 129 IRQ 98 Microsoft ACPI-Compliant System IRQ 99 Microsoft ACPI-Compliant System IRQ 100 Microsoft ACPI-Compliant System IRQ 101 Microsoft ACPI-Compliant System IRQ 102 Microsoft ACPI-Compliant System IRQ 103 Microsoft ACPI-Compliant System IRQ 104 Microsoft ACPI-Compliant System PA-J511 Series User Manual Page B-4...
  • Page 130 IRQ 128 Microsoft ACPI-Compliant System IRQ 129 Microsoft ACPI-Compliant System IRQ 130 Microsoft ACPI-Compliant System IRQ 131 Microsoft ACPI-Compliant System IRQ 132 Microsoft ACPI-Compliant System IRQ 133 Microsoft ACPI-Compliant System IRQ 134 Microsoft ACPI-Compliant System PA-J511 Series User Manual Page B-5...
  • Page 131 IRQ 158 Microsoft ACPI-Compliant System IRQ 159 Microsoft ACPI-Compliant System IRQ 160 Microsoft ACPI-Compliant System IRQ 161 Microsoft ACPI-Compliant System IRQ 162 Microsoft ACPI-Compliant System IRQ 163 Microsoft ACPI-Compliant System IRQ 164 Microsoft ACPI-Compliant System PA-J511 Series User Manual Page B-6...
  • Page 132 IRQ 188 Microsoft ACPI-Compliant System IRQ 189 Microsoft ACPI-Compliant System IRQ 190 Microsoft ACPI-Compliant System IRQ 191 Microsoft ACPI-Compliant System IRQ 192 Microsoft ACPI-Compliant System IRQ 193 Microsoft ACPI-Compliant System IRQ 194 Microsoft ACPI-Compliant System PA-J511 Series User Manual Page B-7...
  • Page 133 IRQ 269 Microsoft ACPI-Compliant System IRQ 270 Microsoft ACPI-Compliant System IRQ 271 Microsoft ACPI-Compliant System IRQ 272 Microsoft ACPI-Compliant System IRQ 273 Microsoft ACPI-Compliant System IRQ 274 Microsoft ACPI-Compliant System IRQ 275 Microsoft ACPI-Compliant System PA-J511 Series User Manual Page B-8...
  • Page 134 IRQ 299 Microsoft ACPI-Compliant System IRQ 300 Microsoft ACPI-Compliant System IRQ 301 Microsoft ACPI-Compliant System IRQ 302 Microsoft ACPI-Compliant System IRQ 303 Microsoft ACPI-Compliant System IRQ 304 Microsoft ACPI-Compliant System IRQ 305 Microsoft ACPI-Compliant System PA-J511 Series User Manual Page B-9...
  • Page 135 IRQ 329 Microsoft ACPI-Compliant System IRQ 330 Microsoft ACPI-Compliant System IRQ 331 Microsoft ACPI-Compliant System IRQ 332 Microsoft ACPI-Compliant System IRQ 333 Microsoft ACPI-Compliant System IRQ 334 Microsoft ACPI-Compliant System IRQ 335 Microsoft ACPI-Compliant System PA-J511 Series User Manual Page B-10...
  • Page 136 IRQ 359 Microsoft ACPI-Compliant System IRQ 360 Microsoft ACPI-Compliant System IRQ 361 Microsoft ACPI-Compliant System IRQ 362 Microsoft ACPI-Compliant System IRQ 363 Microsoft ACPI-Compliant System IRQ 364 Microsoft ACPI-Compliant System IRQ 365 Microsoft ACPI-Compliant System PA-J511 Series User Manual Page B-11...
  • Page 137 IRQ 389 Microsoft ACPI-Compliant System IRQ 390 Microsoft ACPI-Compliant System IRQ 391 Microsoft ACPI-Compliant System IRQ 392 Microsoft ACPI-Compliant System IRQ 393 Microsoft ACPI-Compliant System IRQ 394 Microsoft ACPI-Compliant System IRQ 395 Microsoft ACPI-Compliant System PA-J511 Series User Manual Page B-12...
  • Page 138 IRQ 419 Microsoft ACPI-Compliant System IRQ 420 Microsoft ACPI-Compliant System IRQ 421 Microsoft ACPI-Compliant System IRQ 422 Microsoft ACPI-Compliant System IRQ 423 Microsoft ACPI-Compliant System IRQ 424 Microsoft ACPI-Compliant System IRQ 425 Microsoft ACPI-Compliant System PA-J511 Series User Manual Page B-13...
  • Page 139 IRQ 449 Microsoft ACPI-Compliant System IRQ 450 Microsoft ACPI-Compliant System IRQ 451 Microsoft ACPI-Compliant System IRQ 452 Microsoft ACPI-Compliant System IRQ 453 Microsoft ACPI-Compliant System IRQ 454 Microsoft ACPI-Compliant System IRQ 455 Microsoft ACPI-Compliant System PA-J511 Series User Manual Page B-14...
  • Page 140 IRQ 479 Microsoft ACPI-Compliant System IRQ 480 Microsoft ACPI-Compliant System IRQ 481 Microsoft ACPI-Compliant System IRQ 482 Microsoft ACPI-Compliant System IRQ 483 Microsoft ACPI-Compliant System IRQ 484 Microsoft ACPI-Compliant System IRQ 485 Microsoft ACPI-Compliant System PA-J511 Series User Manual Page B-15...
  • Page 141 Microsoft ACPI-Compliant System IRQ 511 Microsoft ACPI-Compliant System IRQ 4294967286 Intel(R) Management Engine Interface #1 IRQ 4294967287 Intel(R) Ethernet Controller (3) I225-LM IRQ 4294967288 Intel(R) Ethernet Controller (3) I225-LM IRQ 4294967289 Intel(R) Ethernet Controller (3) I225-LM PA-J511 Series User Manual Page B-16...
  • Page 142 Intel(R) USB 3.10 eXtensible Host Controller - 1.20 (Microsoft) IRQ 4294967293 Intel(R) UHD Graphics IRQ 4294967294 Standard SATA AHCI Controller Note: These resource information were gathered using Windows 10. (The IRQ could be assigned differently depending on OS) PA-J511 Series User Manual Page B-17...

  • Page 143: I/O Map

    Motherboard resources 0x00000067-0x00000067 Motherboard resources 0x00000070-0x00000070 Motherboard resources 0x00000070-0x00000070 System CMOS/real time clock 0x00000080-0x00000080 Motherboard resources 0x00000092-0x00000092 Motherboard resources 0x000000A0-0x000000A1 Programmable interrupt controller 0x000000A4-0x000000A5 Programmable interrupt controller 0x000000A8-0x000000A9 Programmable interrupt controller 0x000000AC-0x000000AD Programmable interrupt controller PA-J511 Series User Manual Page B-18...
  • Page 144 0x00003000-0x00003FFF Intel(R) PCI Express Root Port #0 - 4B38 0x00004000-0x0000403F Intel(R) UHD Graphics 0x00004060-0x0000407F Standard SATA AHCI Controller 0x00004080-0x00004083 Standard SATA AHCI Controller 0x00004090-0x00004097 Standard SATA AHCI Controller 0x0000EFA0-0x0000EFBF Intel(R) SMBus Controller - 4B23 PA-J511 Series User Manual Page B-19...

  • Page 145: Memory Map

    Motherboard resources 0xFD6F0000-0xFDFFFFFF Motherboard resources 0xFE000000-0xFE01FFFF Motherboard resources 0xFE200000-0xFE7FFFFF Motherboard resources 0xFF000000-0xFFFFFFFF Motherboard resources 0xFD6B0000-0xFD6CFFFF Motherboard resources 0xFD6B0000-0xFD6CFFFF Motherboard resources 0x80800000-0x80801FFF Standard SATA AHCI Controller 0x80803000-0x808030FF Standard SATA AHCI Controller 0x80802000-0x808027FF Standard SATA AHCI Controller PA-J511 Series User Manual Page B-20...
  • Page 146 0xE4000-0xE7FFF PCI Express Root Complex 0xE8000-0xEBFFF PCI Express Root Complex 0xEC000-0xEFFFF PCI Express Root Complex 0xF0000-0xFFFFF PCI Express Root Complex Intel(R) PCI Express Root Port #0 - 0x7FC00000-0x805FFFFF 4B38 0x7FC00000-0x805FFFFF PCI Express Root Complex PA-J511 Series User Manual Page B-21...

  • Page 147: Configuring Watchdog Timer

    To exit the Extended Function Mode, writing 0xAA to the EFER is required. Once the chip exits the Extended Function Mode, it is in the normal running mode and is ready to enter the configuration mode. PA-J511 Series User Manual Page B-22...
  • Page 148 ; ---------------- Set timeout interval as 30seconds and start counting -------------- mov al, mov al, ;------------------------------- Enable Watch PME-------------------------------------------- ;-------------------------- Set second as counting unit -------------------------------------- mov al, ;-------------------------- Start the watchdog timer -------------------------------------- ;---------------------------------Exit the extended function mode ------------------------- PA-J511 Series User Manual Page B-23...
  • Page 149 To exit the Extended Function Mode, writing 0xAA to the EFER is required. Once the chip exits the Extended Function Mode, it is in the normal running mode and is ready to enter the configuration mode. PA-J511 Series User Manual Page B-24...
  • Page 150 ; ----------------------- Select Logical Device 6 of Cash Drawer --------------------- dx, al dx, al ;---------------------------------Open the Cash Drawer ------------------------------ dx, al dx, al ;---------------------------------Close the Cash Drawer ------------------------------ dx, al dx, al ;---------------------------------Exit the extended function mode ------------------------- dx, al PA-J511 Series User Manual Page B-25...

  • Page 151: Flash Bios Update

    (2) Turn on the computer and press <ESC> or <DEL> key during boot to enter BIOS Setup. (3) Select [Boot] menu and set the USB bootable device to be the boot device. (4) Press <F4> to save the configuration and exit the BIOS setup menu. PA-J511 Series User Manual Page B-26...
  • Page 152 /?” to view the definition of each control option. The recommended options for BIOS ROM update include the following parameters: Program main BIOS image. /B: Program Boot Block. /N: Program NVRAM. /X: Don’t check ROM ID. PA-J511 Series User Manual Page B-27...
  • Page 153 After the BIOS update procedure is completed, the following messages will be shown: Restart the system and boot up with the new BIOS configurations. The BIOS Update is completed after the system is restarted. PA-J511 Series User Manual Page B-28...
  • Page 154 Appendix B Technical Summary Reboot the system and verify if the BIOS version shown on the initialization screen has been updated. PA-J511 Series User Manual Page B-29...

This manual is also suitable for:

Pa-j500

Table of Contents
