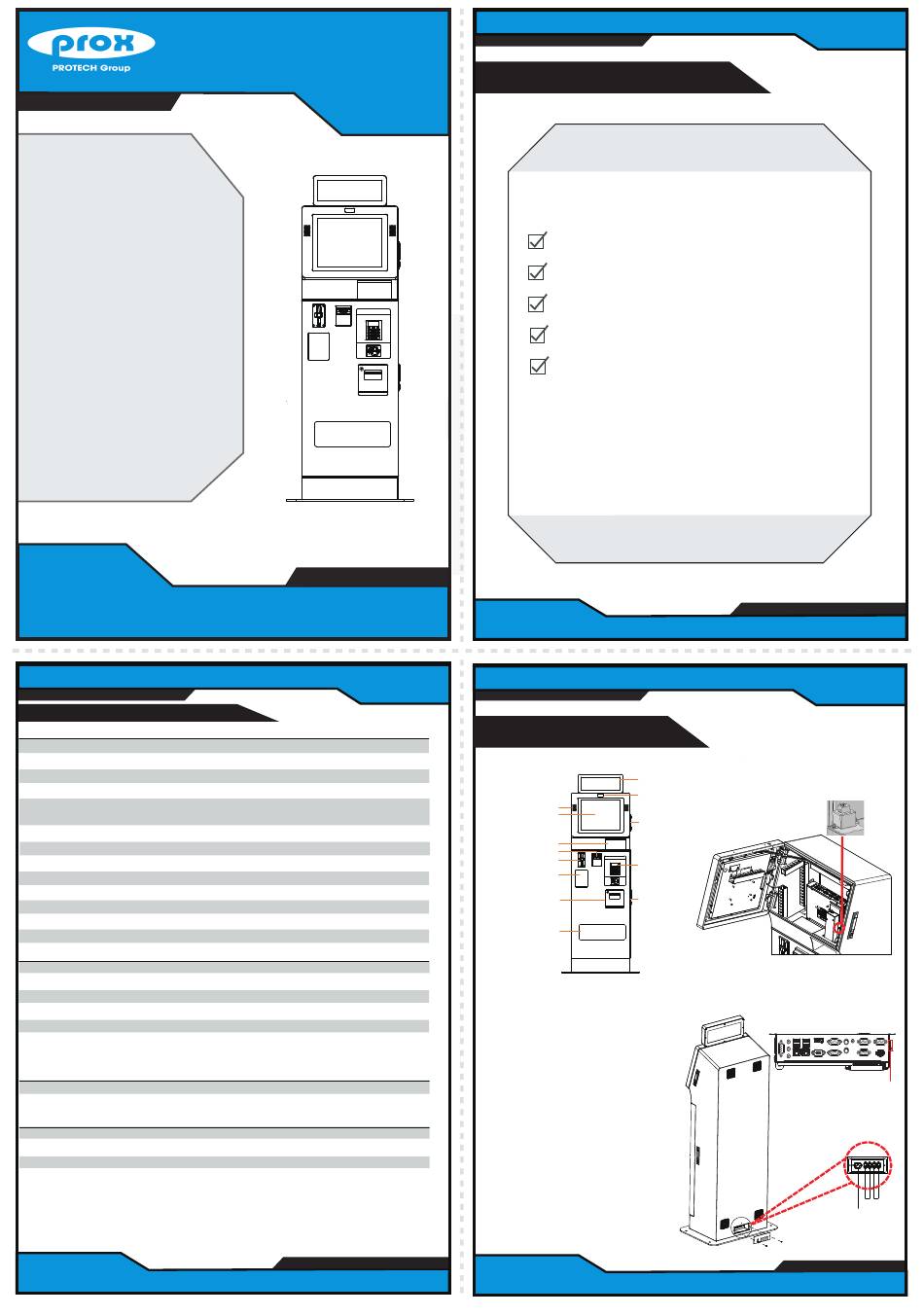

KF-P231
Quick
Reference
Guide
Specifications
System
CPU Type
Intel
ApolloLake Celeron J3455 SoC
®
Chipset
Apollolake SoC
Memory Support
2 x DDR3L SO-DIMM socket
Storage (HDD/SSD)
1 x 2.5" solid state SATA III, HDD, TLC
LAN
Dual LAN (2 x RJ45 on rear I/O)
Supports Wake-On-LAN / Controller: 2 x Intel
Power Supply
DC In 12V~24V/ Connector:1 x DC jack (rear I/O), 1x internal 4pin (2x2)
System Weight
Dimensions (WxHxD)
670 x 1719 x 340mm
O.S. Support
Windows 10 (64) / Windows 7 Pro (32/64)
Fan
2 x system fans
Material
SPCC, SECC
Speaker
2 x 4W HD speaker
Painting
Powder-paint coating
Operating Display
Touch
17" Bezel free P-CAP Touch
LCD
17" (4:3) LED backlight
Resolution
18/24bit LVDS 1280x1024 dots SXGA
Brightness
350 cd/m²
Touchscreen
Projected Capacitive Touch
Estimated luminance lifetime 50,000h
Integrated Devices
Thermal Printer
Paper width: 79.5 ± 0.5mm/Printing speed: 250 mm/s maximum
Barcode Reader
1D/2D Barcode Scanner
Environment
Operating Temp.
5°C~ 35°C (40°F ~ 95°F)
Storage Temp.
0°C~ 40°C (32°F~ 103°F)
Humidity
20%~ 85%
Ver. Q1
All Rights Reserved. Copyright 2022
KF-P231
I210 (GbE)
®
Packing Checklist
If you discover any item below damaged or lost,
If you discover any item below are damaged
please contact your vendor.
or lost, please contact your vendor.
KF-P231 Kiosk Main Unit
Light Box
This Quick Reference Guide
AC Power Cord Cable
This Quick Reference Guide
Panel Key
Door Key
System View
Front View
Light Box
Camera
Speaker
17" Bezel free P-CAP
Panel Key
Touchscreen
Barcode Scanner
Bill Acceptor
Coin Acceptor
Credit Card
Financial Contacless
Reader
IC Card Reader
Door Key
Printer
Coin Return
Power On and Connect KF-P231 to Network
From the lower bottom on the rear of the system,
connect the AC power cord to the AC power jack
and connect the Ethernet cables to the dual LAN ports.
Two RJ11 ports are also provided.
After the I/O ports are all connected properly, attach
the I/O panel cover bracket onto the I/O ports panel
compartment and secure it with two screws.
To power on the system, unlock the LCD panel and
switch on the Power On/Off Button or Power Switch,
and turn the system on. The Power On/Off Button is
located on the left side of Barcode Scanner case.
(See the picture of Location of Power On/Off Button
above).
The power switch is located on the right side of the
internal main board Box inside the LCD panel.
Please see the picture on the right.
KF-P231
X1
X1
x1
X1
x1
X2
X2
KF-P231
Location of Power On/Off Button
Power On / Off Button
Internal Main Board Box I/O Panel
KF-P231 Kiosk System
LAN RJ-11
AC Power
Jack
Tighten the two screws to
secure the I/O panel bracket.
Power
Switch
ports
