- Page 1 VS-10 Veterinary Scale Operation Manual September 8, 2023 PN 220913 Rev A...
- Page 2 All information contained within this publication is, to the best of our knowledge, complete and accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.
- Page 3 September 8, 2023 Established revision history Table i. Revision Letter History Technical training seminars are available through Rice Lake Weighing Systems. Course descriptions and dates can be viewed at www.ricelake.com/training or obtained by calling 715-234-9171 and asking for the training department.
-
Page 4: Table Of Contents
6.0 Specifications ............... . . 12 Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. -
Page 5: Introduction
Do not operate or work on this equipment unless this manual has been read and all instructions are understood. Failure to follow the instructions or heed the warnings could result in injury or death. Contact any Rice Lake Weighing Systems dealer for replacement manuals. -
Page 6: Setup
Figure 2-1. AC Power Connection Site The VS-10 can also be powered by four AA alkaline batteries if an additional power source is not available. A battery powered scale automatically turns off after two minutes of not being used to save battery life. Replace the batteries or connect to an AC power source as soon as possible if the low battery indicator (Lo) displays. -
Page 7: Operation

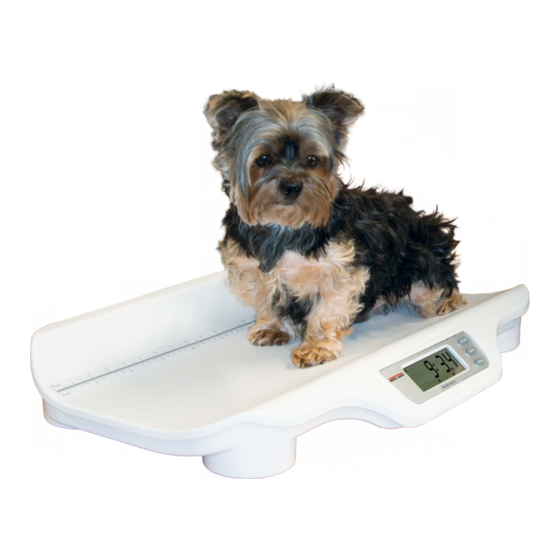

Operation The VS-10 accurately weighs small animals up to 44 lb (20 kg). The weighing surface also includes a ruler for measuring the length of the animal. The built-in ruler can measure small animals up to 22.5 in (57 cm). -
Page 8: Initial Setup
10. If the problem is not resolved, refer to a qualified service provider. Set Units The VS-10 can be set to display weights in lb/oz only, kg only, or to toggle between lb/oz and kg units on the scale. 3.3.1 KG Units Only Lock the weight units to display in kg only. -
Page 9: Weigh With A Tare
2. Place an animal on the scale. Ο displays when the weight reading is complete. 3. Remove the animal from the scale. 4. Press to display the weight again, if necessary. RECALL © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 10: Maintenance
VS-10 Veterinary Scale Maintenance The following section provides instructions for maintaining, cleaning and troubleshooting the VS-10. IMPORTANT: Maintenance operations not described in this section must be performed by qualified service personnel. Basic Maintenance • Check the scale for proper operation and function before first use and after periods of non-use. -
Page 11: Limited Warranty
Limited Warranty Limited Warranty Rice Lake Weighing Systems (RLWS) warrants that all RLWS equipment and systems properly installed by a Distributor or Original Equipment Manufacturer (OEM) will operate per written specifications as confirmed by the Distributor/OEM and accepted by RLWS. All systems and components are warranted against defects in materials and workmanship for two years. -
Page 12: Specifications
VS-10 Veterinary Scale Specifications Capacity: 44 lb x 0.5 oz (20 kg x 10 g) Power Requirements: Four AA alkaline batteries (included) 120 V adapter (included) Adapter is UL and C-UL approved Environmental: Operating temperature: 50 to +104º F (10 to +40º C) Storage temperature: -4 to +140º... - Page 14 © Rice Lake Weighing Systems Content subject to change without notice. 230 W. Coleman St. • Rice Lake, WI 54868 • USA USA: 800-472-6703 • International: +1-715-234-9171 September 8, 2023 PN 220913 Rev A www.ricelake.com...
