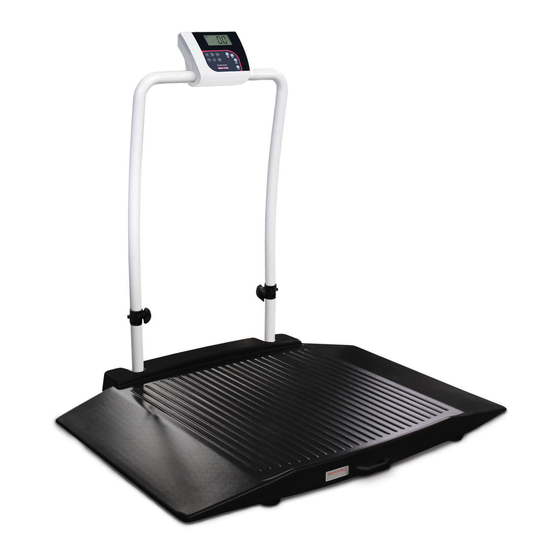

Rice Lake RL350-10 Series Technical Manual
Digital wheelchair scale
Hide thumbs
Also See for RL350-10 Series:
- Technical and operating instructions (30 pages) ,
- Operation manual (25 pages)
Subscribe to Our Youtube Channel
Related Manuals for Rice Lake RL350-10 Series
Summary of Contents for Rice Lake RL350-10 Series
- Page 1 RL350-10 Digital Wheelchair Scale 350-10 Series Software Revision 11439 Technical Manual Model 350-10-3 Model 350-10-2 Model 350-10-7 Model 350-10-8 April 4, 2018 PN 152495 Rev D...
- Page 2 All information contained within this publication is, to the best of our knowledge, complete and accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.
-
Page 3: Table Of Contents
Wheelchair Scale Limited Warranty ..............22 Technical training seminars are available through Rice Lake Weighing Systems. - Page 4 RL350-10 Digital Wheelchair Scale Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. Visit www.ricelake.com/webinars Visit our website www.RiceLake.com...
-
Page 5: Introduction
Introduction Introduction The Rice Lake Digital Wheelchair Scale is a user-friendly, quality scale, designed for safe weighing of the handicapped and mobility challenged individuals. Movement compensation technology ensures sound, accurate weighments. The scale has roll on ramp access and comes in four different configurations: •... -
Page 6: Safety
Do not operate or work on this equipment unless this manual has been read and all instructions are understood. Failure to follow the instructions or heed the warnings could result in injury or death. Contact any Rice Lake Weighing Systems dealer for replacement manuals. -
Page 7: Scale Assembly
• Box containing six AA batteries and four feet Repacking If the Rice Lake Digital Wheelchair Scale must be returned or moved, it must be properly packed with sufficient packing materials. When possible, use the original carton and packing material. - Page 8 RL350-10 Digital Wheelchair Scale 4. Turn each foot counterclockwise two full rotations, to ensure there is adequate clearance between the scale and the floor. 5. Lower the scale base down to the floor carefully. There should be minimal clearance between the scale base and the floor. Figure 2-2 shows the width of a finger being slid between the scale base and the floor.
-
Page 9: Inserting Batteries
When using battery or USB power supply, the back light power is deducted to 60%. AC Power Connections Use the optional 120 VAC or 230 VAC adapter when power is available. Rice Lake Weighing Systems offers optional AC adapters that plug into the back of the indicator as shown in Figure 2-5. -
Page 10: Scale Operation
RL350-10 Digital Wheelchair Scale Scale Operation The Rice Lake Digital Wheelchair Scale display has various front panel keys as shown in Figure 3-1. Figure 3-1. Front Panel Display Keys Key Descriptions Table 3-1 describes each of the key functions. Item No... -
Page 11: Weighing
2. The default tare value is displayed (default is programmed to be 33.0 lb/15.0 kg), while the zero is flashing. 3. Use to adjust the value. 4. Press to start the tare function, NET displays. ENTER © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 12: Body Mass Index (Bmi) Function
RL350-10 Digital Wheelchair Scale Body Mass Index (BMI) Function Use the following steps in determining the BMI. LB Mode 1. Ensure that the scale is at zero. 2. Have the person step on the scale to obtain a weight. LOCK displays. 3. -
Page 13: Scale Configuration
Access to the setup switch is located under the tilt stand cover. Use a Phillips head screwdriver to remove the four screws holding the cover in place. Setup Switch Location Figure 4-1. Setup Switch Location © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 14: Main Menu
RL350-10 Digital Wheelchair Scale Use the following steps to enter into configuration mode. 1. Make sure the scale is turned off. 2. Turn the scale on by simultaneously pressing ENTER 3. Continue to hold both keys until Id appears. The unit cycles through its startup function and continues to display the software version. - Page 15 1. Enter the setup mode. See Section 4.2 on page 2. With PROG displayed, press ENTER 3. Using the navigation instructions in Section 4.1 on page 9, set all PROG parameters. © Rice Lake Weighing Systems ● All Rights Reserved...
-
Page 16: Default Menu
RL350-10 Digital Wheelchair Scale Default Menu The default menu is used to return the scale to the original factory settings. This will not change the calibration. DONE PROG CALIB Figure 4-3. Default Menu 4.5.1 Set to Default 1. Press displays ENTER 2. -
Page 17: Test Menu
Value Displays the current software version. Value Displays the current battery level. VALUE Value Displays the actual value. Value Displays the actual raw counts of the scale. Table 4-3. Test Menu © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 18: Rs-232 Communication
The scale comes with an RS-232 port that enables weight data to be transmitted to other equipment, such as a computer or printer. The RS-232 cable with DB-9 connector (PN 100719) is available from Rice Lake Weighing Systems. Figure 5-3 on page 17 shows where the RS-232 connection is. -
Page 19: Communication Protocols
RS-232 Communication Communication Protocols The Rice Lake Digital Wheelchair Scale has two communication protocols, escape and maintenance protocol. 5.2.1 Escape Protocol An escape protocol is where the escape (0X1B or ASCII 27) is used to indicate that there is a command following. On the PC side there must be a listener created by the vendor that will interpret this protocol. -
Page 20: Maintenance Protocol
RL350-10 Digital Wheelchair Scale Samples of Escape Protocol Examples of what is sent to the computer from the scale. direction of communication <SCALE> <PC> <SCALE> <PC> <ESC> R <ESC> W0210.9 <ESC> Nm <ESC> E <ESC>R <ESC>E Reading Reading Unit of Measure (request) (Command) = Metric... -
Page 21: Usb Connection
RS-232 Communication USB Connection The Rice Lake Digital Wheelchair Scale has the capability of connecting to a PC using a USB connection and a USB cable (not included). USB Connection RS-232 Connection Figure 5-3. USB Connection Port Connecting software and downloads should be addressed by an IT professional, and can vary depending on the computer ®... - Page 22 RL350-10 Digital Wheelchair Scale Figure 5-2. Software Download Page 3. Find Titanium USB Driver. Press Download to open and download the driver to a local computer. Figure 5-3. Example of Drivers List Page 4. When the USB cable is connected to the indicator and the scale is turned on, a display prompts to navigate through the software install process.
- Page 23 A single print ticket has four spaces after PATIENT WEIGHT, one space between the weight value and units (lb), and Note seven <CR><LF> after. PATIENT WEIGHT 199.8 <CR> <LF> <CR> <LF> <CR> <LF> <CR> <LF> <CR> <LF> <CR> <LF> <CR> <LF> Figure 5-7. IT Example (IT Information Only) © Rice Lake Weighing Systems ● All Rights Reserved...
-
Page 24: Troubleshooting And Maintenance
RL350-10 Digital Wheelchair Scale Troubleshooting and Maintenance Maintenance The following section provides instructions for maintaining and cleaning the Rice Lake line of scales. Do not immerse the scale in cleaning or other liquid solutions. IMPORTANT Do not use Isopropyl alcohol or other solutions to clean the indicator display surface. -
Page 25: Wheelchair Scale Specifications
85% relative humidity Capacity and Graduation 1000 lb (453 kg) 0.2 lb (0.1kg) Certifications and Approvals RoHS Compliant Dimensions Platform Dimensions 48.5 in W x 29.5 in L x 3 in H © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 26: Wheelchair Scale Limited Warranty
RL350-10 Digital Wheelchair Scale Wheelchair Scale Limited Warranty Rice Lake Weighing Systems (RLWS) warrants that all RLWS equipment and systems properly installed by a Distributor or Original Equipment Manufacturer (OEM) will operate per written specifications as confirmed by the Distributor/OEM and accepted by RLWS. -
Page 28: April
Specifications subject to change without notice. Rice Lake Weighing Systems is an ISO 9001 registered company. 230 W. Coleman St. • Rice Lake, WI 54868 • USA U.S. 800-472-6703 • Canada/Mexico 800-321-6703 • International 715-234-9171 • Europe +31 (0)26 472 1319...
