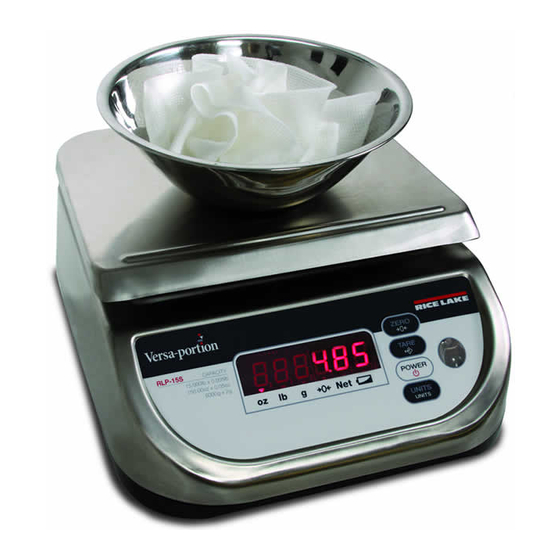

Versa-portion RLP-S/SM
Multi-Purpose Bench Scale
Operation Manual
115519

Advertisement

Table of Contents
loading

Related Manuals for Rice Lake Versa-portion RLP-S

Summary of Contents for Rice Lake Versa-portion RLP-S

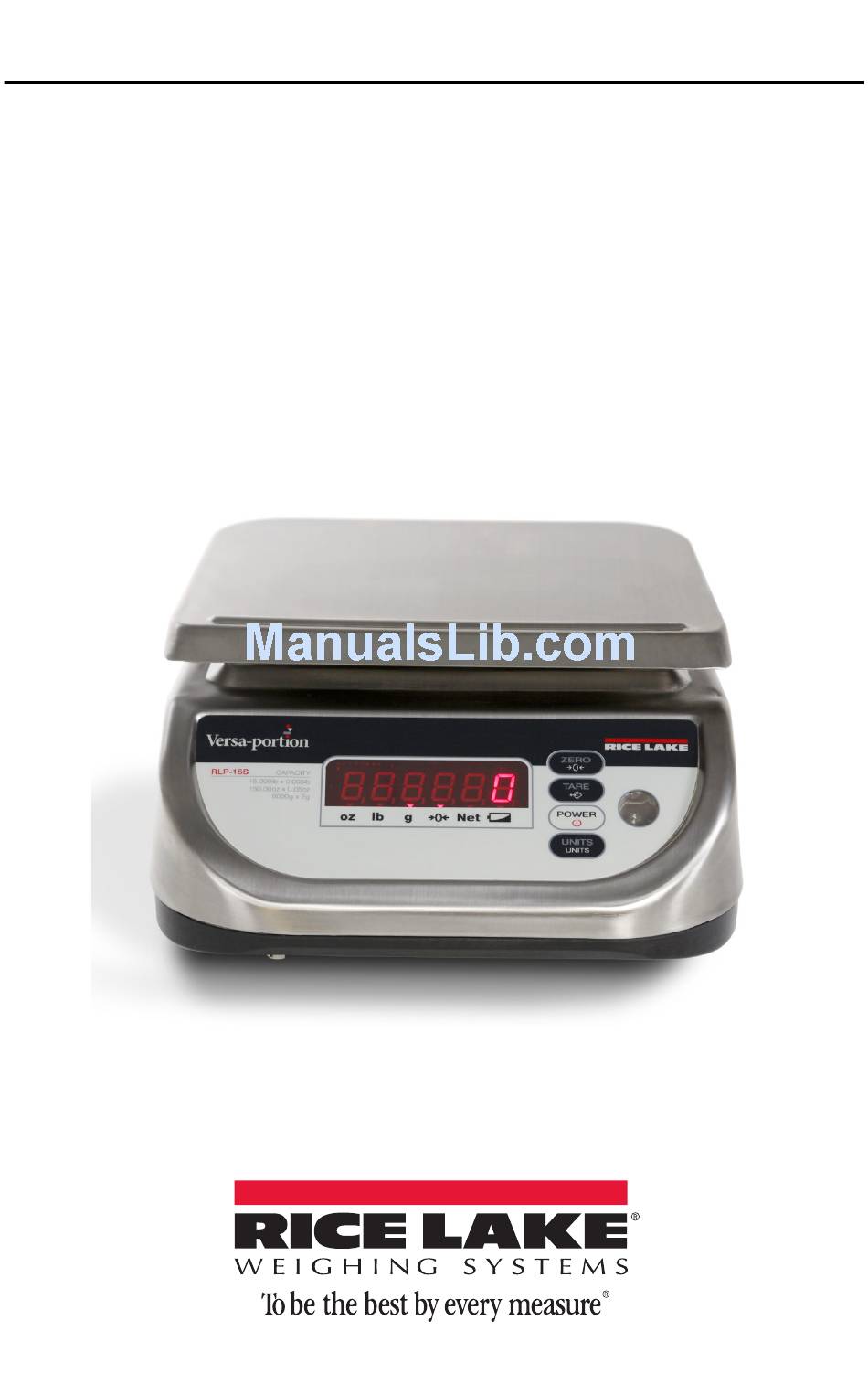

  • Page 1 Versa-portion RLP-S/SM Multi-Purpose Bench Scale Operation Manual 115519...

  • Page 3: Table Of Contents

    Error Messages ..........8 Specifications .....................9 Versa-portion RLP-S/SM Limited Warranty ..........10 © 2011 Rice Lake Weighing Systems. All rights reserved. Printed in the United States of America. Specifications subject to change without notice. Rice Lake Weighing Systems is an ISO 9001 registered company.

  • Page 5: Introduction

    Do not operate or work on this equipment unless you have read and understand instructions in the manual. Failure to follow the instructions or heed the warnings could result in injury or death. Contact any Rice Lake Weighing Systems dealer for replacement manuals. Proper care is your responsibility.

  • Page 6: Front Panel

    Resets the weight display to zero Sets or clears the tare value Turns the display on/off Changes measurement units between lb, oz, g, kg (not available in Versa-portion RLP-SM) Table 1-1. Versa-portion RLP-S/SM Indications and Front-Panel Buttons Versa-portion RLP-S/SM Operation Manual...

  • Page 7: Operation

    0.000 2.3 Automatic Shut-Off Timer The Versa-portion RLP-S/SM has a built-in automatic shut-off timer. This timer can be set to turn the unit off after three minutes of inactivity or 10 minutes of inactivity. Setting the Timer for Three Minutes 1.If the unit is powered on, press the...

  • Page 8: Default Primary Unit

    2.5 Default Primary Unit button cycles through g, lb, and oz. (Versa-portion RPL-SM is only available in Units Setting the Default Primary Unit 1.Hold the key and press the key three times. ZERO UNITS 2.Press the key to cycle through available units. POWER 3.When the desired default unit is displayed, press the key to save the setting and...

  • Page 9: Calibration

    After three seconds, the unit will return to weigh mode. Performing a Calibration The Versa-portion RLP-S/SM must be calibrated in grams or kilograms, and SPEC 01 and 02 must be set for the gram value (or kg in the SM version). See Section 3.4.

  • Page 10: Enclosure Security

    See Table 3-1 on page 5. UNIT 1.Press the setup switch (see Figure 3-1). 2.With the unit in weigh mode, press and hold the key. ZERO Versa-portion RLP-S/SM Operation Manual...
  • Page 11 3.With the key held, press and release the key, then press and ZERO TARE release the key twice. POWER The SPEC number is displayed. key.  4.To increment the SPEC setting value, press the POWER Refer to Table 3-1. 5.Press the key to save data and increase the SPEC count.

  • Page 12: Internal Count And A/D Count Display

    The display will show ,,,,,0, 3.Press the key to display the A/D count. POWER 4.To return to weigh mode, press the key. TARE (G) uppercase is the abbreviation for gross. (g) lowercase is the correct abbreviation for grams. Versa-portion RLP-S/SM Operation Manual...

  • Page 13: Appendix

    4.1.1 Battery Pack Replacement/Installation An optional DC battery pack (PN 108516) for the Versa-portion RLP-S/SM is available and can be purchased from RLWS to ship with the scale or retrofit in the field. The rechargeable 6V 5.0 AH battery pack allows for up to 60 hours of scale use without an AC power supply (with display set to Dimmer Level 2).

  • Page 14: Error Messages

    E R R 02 There is a data flash erase error. Contact the scale dealer or RLWS. E R R 03 There is a data flash program error. Contact the scale dealer or RLWS. Table 4-1. Error Messages Versa-portion RLP-S/SM Operation Manual...

  • Page 15: Specifications

    Specifications Display Power Source LED, 6 digits DC 12V/1.5A, DC 6V5Ah rechargeable battery (Optional) Capacity Dimensions RLP-6S 6.000 lb x 0.002 lb; 3000 g x 1 g; 60.00 251.6 mm x 289.7 mm x 134.6 mm oz x 0.02 oz Package Weight RLP-15S 15.000 lb x 0.005 lb;...

  • Page 16: Versa-Portion Rlp-S/Sm Limited Warranty

    RLWS and the Buyer. © 11/19/14 Rice Lake Weighing Systems, Inc. Rice Lake, WI USA. All Rights Reserved. RICE LAKE WEIGHING SYSTEMS • 230 WEST COLEMAN STREET • RICE LAKE, WISCONSIN 54868 •...
  • Page 18 230 W. Coleman St. • Rice Lake, WI 54868 • USA U.S. 800-472-6703 • Canada/Mexico 800-321-6703 • International 715-234-9171 • Europe +31 (0)26 472 1319 www.ricelake.com www.ricelake.mx www.ricelake.eu www.ricelake.co.in m.ricelake.com © Rice Lake Weighing Systems 11/19/14 PN 44141 Rev D...
