Summary of Contents for Rice Lake VS-20

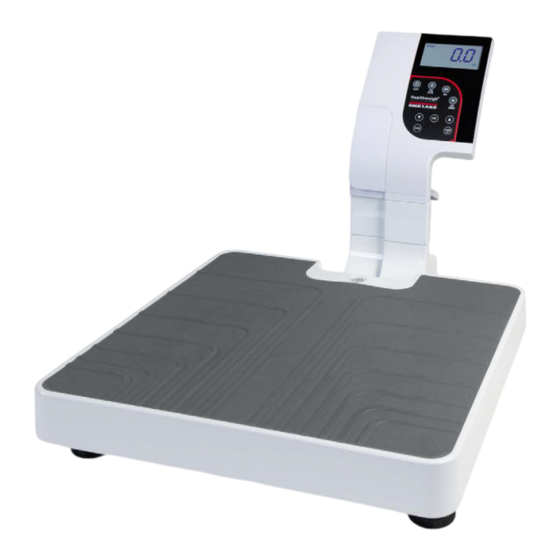

- Page 1 VS-20 Digital Veterinarian Scale Floor-Level Software Version 11599 Operation Manual August 28, 2024 PN 225770 Rev A...
- Page 2 All information contained within this publication is, to the best of our knowledge, complete and accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.
- Page 3 Established a revision history; software version 11599 Table i. Revision Letter History Technical training seminars are available through Rice Lake Weighing Systems. Course descriptions and dates can be viewed at www.ricelake.com/training or obtained by calling 715-234-9171 and asking for the training department.
-
Page 4: Table Of Contents
6.0 Specifications ............... . . 18 Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. -
Page 5: Introduction
BMI is displayed. The large digital display makes it easy to read the results. The VS-20 scale is used to establish weight, height and BMI (Body Mass Index). The scale is designed to adhere to the highest standards of measurement and compliance. -
Page 6: Safety
Do not operate or work on this equipment unless this manual has been read and all instructions are understood. Failure to follow the instructions or heed the warnings could result in injury or death. Contact any Rice Lake Weighing Systems dealer for replacement manuals. -
Page 7: Disposal
Dispose of old batteries to appropriate separate waste collection centers at the end of their life cycle. Users who dispose of the product illegally shall face administrative sanctions as provided by law. WARNING: Risk of fire and explosion. Do not burn, crush, disassemble or short-circuit lithium batteries. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 8: Assembly
Place the carton on a hard, level surface for unpacking, preferably in the area where it will be used. If parts were damaged in shipment, notify Rice Lake Weighing Systems and the shipper immediately. Parts contained in the shipping box include: •... -
Page 9: Inserting Batteries
The six AA batteries that come with the scale offer an average of 25 hours of continuous use. To install the batteries: 1. Open the battery chamber cover by loosening the thumb screw. 2. Insert batteries. Figure 2-4. Batteries in Battery Chamber 3. Close the battery chamber cover. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 10: Ac Power Connections
Use the optional 120 VAC adapter or 230 VAC adapter when power is available. The optional AC power adapter plugs into the back of the indicator as shown in Figure 2-5. Rice Lake Weighing Systems offers optional AC adapters, utilizing an adapter not supplied by Rice Lake Weighing Systems voids all warranties. Connect the optional AC RS-232 Connection power adapter. -
Page 11: Operation
Pressing and holding Enter during startup will display ID. This is the first setup on entering into configuration mode. Up/Down Arrows Adjusts the value of the flashing digit/number. Adjusts height input (0.5 in/0.5 cm) while in BMI mode. Table 3-1. Scale Key Functions © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 12: Weighing
VS-20 Digital Veterinarian Scale Weighing Use the following steps to weigh a patient. 1. Press to turn on the scale. 0.0 displays along with ZERO on the upper display. 2. Have the patient step on the scale. The patient’s weight is displayed, the LOCK annunciator is on and the indicator beeps to indicate the end of the weighing process. -
Page 13: Troubleshooting
Note: Load cell connection point is located underneath the curved plastic cover of the indicator. Remove four back retaining screws, remove curved back cover to access load cell connection point. Table 3-2. Troubleshooting © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 14: Communication
The unit comes with an RS-232 port that enables weight data to be transmitted to other equipment, such as a computer or printer. The RS-232 cable with DB-9 connector (PN 100719) is available from Rice Lake Weighing Systems. That connection is shown in USB Connection section on the next page. -
Page 15: Usb Connection
5. With weight on the scale, press and hold the Print button on the indicator for three seconds. The patient’s weight is sent to the PC. Figure 4-3. Patient Weight Displayed © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 16: Maintenance
150-10-8 Digital Physician Scale Maintenance The following section provides instructions for maintaining and cleaning the unit. IMPORTANT: Do not immerse the scale in cleaning or other liquid solutions. Do not use Isopropyl alcohol or other solutions to clean the indicator display surface. Basic Maintenance Before the first use of the scale and after periods of non-use, check the scale for proper operation and function. -
Page 17: Specifications
32°F to 176°F (0°C to 80°C) Humidity 85% relative humidity Capacity 550 lb x 0.2 lb (250 kg x 100 g) Certifications and Approvals E113986 Complies with ANSI/AAMI ES60601-1:2005/A2:2010/(R)2012 CAN/CSA-C22.2 No. 60601-1:14 © Rice Lake Weighing Systems ● All Rights Reserved... - Page 18 VS-20 Digital Veterinarian Scale www.RiceLake.com Visit our website...
- Page 20 © Rice Lake Weighing Systems Content subject to change without notice. 230 W. Coleman St. • Rice Lake, WI 54868 • USA USA: 800-472-6703 • International: +1-715-234-9171 August 28, 2024 PN 225770 Rev A www.ricelake.com...
