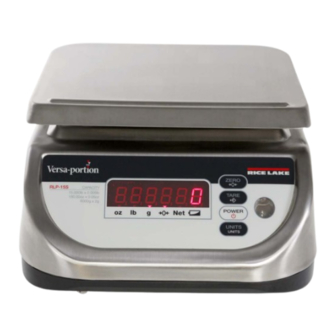

Rice Lake Versa-portion RLP-S Operation Manual
Multi-purpose bench scale
Hide thumbs
Also See for Versa-portion RLP-S:
- Operation manual (14 pages) ,
- Operation manual (18 pages)
Related Manuals for Rice Lake Versa-portion RLP-S
Summary of Contents for Rice Lake Versa-portion RLP-S

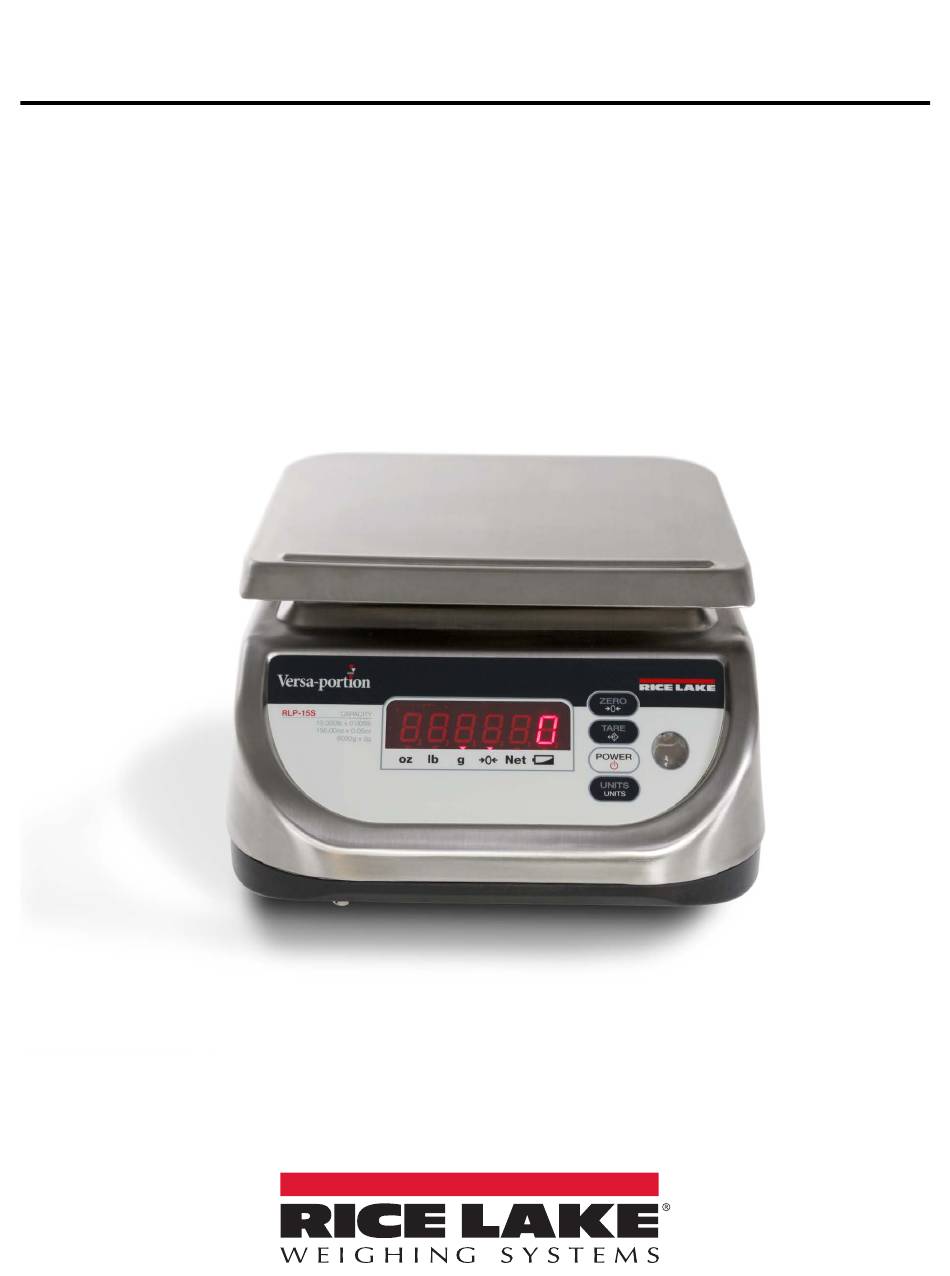

- Page 1 Versa-portion RLP-S/SM ® Multi-Purpose Bench Scale Operation Manual September 8, 2023 PN 115519 Rev B...
- Page 2 All information contained within this publication is, to the best of our knowledge, complete and accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.
- Page 3 September 8, 2023 Established revision history; Added error message details Table i. Revision Letter History Technical training seminars are available through Rice Lake Weighing Systems. Course descriptions and dates can be viewed at www.ricelake.com/training or obtained by calling 715-234-9171 and asking for the training department.
-
Page 4: Table Of Contents
5.0 Specifications ............... . . 12 Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. -
Page 5: Introduction
CAUTION: Procedures that require working inside the scale base are to be performed by qualified service personnel only. The Versa-portion RLP-S/SM is a multi-purpose bench scale that offers practical solutions for a full range of applications. Its internal resolution of 1/90,000 gives you maximum precision and accuracy. Its backlit LCD display enables operators to easily see weights. -
Page 6: Operation
3. The display will show 0.000. Automatic Shut-Off Timer The Versa-portion RLP-S/SM has a built-in automatic shut-off timer. This timer can be set to turn the unit off after three minutes of inactivity or 10 minutes of inactivity. Setting the Timer for Three Minutes 1. -
Page 7: Display Brightness
Operation Display Brightness The Versa-portion RLP-S/SM display brightness can be set to one of three levels. Changing the brightness setting 1. Hold the ZERO key and press TARE three times. 2. Press the ZERO key to increase the dimmer level and the POWER button to decrease the dimmer level. -
Page 8: Calibration
After three seconds, the unit will return to weigh mode. Performing a Calibration The Versa-portion RLP-S/SM must be calibrated in grams or kilograms, and SPEC 01 and 02 must be set for the gram value (or kg in the SM version). See Section 3.4 on page... -
Page 9: Enclosure Security
Minimum display Net/gross multi-interval 00 - 1 0 - Gross 01 - 2 1 - Net 10 - 5 11 - 10 Table 3-1. SPEC number and bit explanation (defaults are bold) © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 10: Internal Count And A/D Count Display
Versa-portion RLP-S/SM SPEC Number Bit 2 Bit 1 Bit 0 Resolution Selection Weight single interval or multi-interval 00 - 1/2000 0 - Single interval 01 - 1/3000 10 - 1/6000 11 - 1/7500 Decimal point figure for numeral Negative weight display mask... -
Page 11: Appendix
Battery Pack Replacement/Installation An optional DC battery pack (PN 108516) for the Versa-portion RLP-S/SM is available and can be purchased from RLWS to ship with the scale or retrofit in the field. The rechargeable 6V 5.0 AH battery pack allows for up to 60 hours of scale use without an AC power supply (with display set to Dimmer Level 2). -
Page 12: Specifications
Versa-portion RLP-S/SM 5.0 Specifications Display: Warranty: LED, six-digit One-year limited Capacity: Approvals: NTEP Pound Gram Ounce CC 10-068 6.0 x 0.002 lb 3,000 x 1 g 60.0 x 0.02 oz Class III 3,000 d 15.0 x 0.005 lb 6,000 x 2 g 150.0 x 0.05 oz... - Page 14 © Rice Lake Weighing Systems Content subject to change without notice. 230 W. Coleman St. • Rice Lake, WI 54868 • USA USA: 800-472-6703 • International: +1-715-234-9171 September 8, 2023 PN 115519 Rev B www.ricelake.com...
