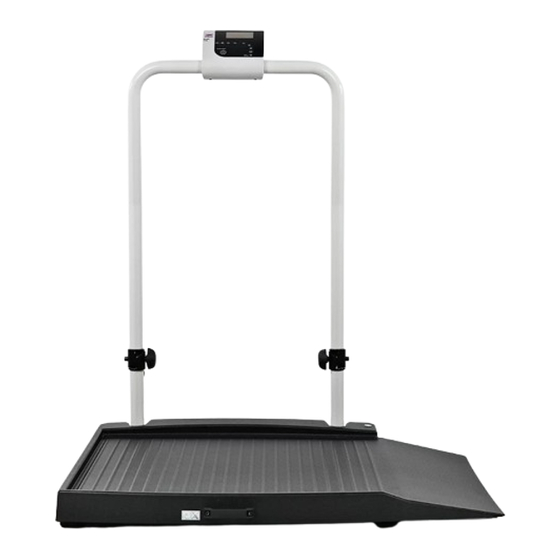

  • Page 1 Healthweigh H351-10 ® Class I MDR Wheelchair Scales Models 2, 3, 7, 8 Operation Manual August 13, 2024 PN 217563 Rev B...
  • Page 2 All information contained within this publication is, to the best of our knowledge, complete and accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.
  • Page 3 August 13, 2024 Updated compliance and certification sections Table i. Revision Letter History Technical training seminars are available through Rice Lake Weighing Systems. Course descriptions and dates can be viewed at www.ricelake.com/training or obtained by calling 715-234-9171 and asking for the training department.
  • Page 4: Table Of Contents

    6.0 Appendix ................22 Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost.
  • Page 5: Introduction

    Do not operate or work on this equipment unless this manual has been read and all instructions are understood. Failure to follow the instructions or heed the warnings could result in injury or death. Contact any Rice Lake Weighing Systems dealer for replacement manuals.
  • Page 6: Disposal

    Healthweigh H351-10 CAUTION: To prevent injury, never leave the person being weighed unattended while on the scale. To prevent injury, do not transport the scale while a patient is on the scale. Make sure no load is on the scale before transporting the scale.
  • Page 7: Setup

    • Power Adapter 230/120 ACV 50/60 Hz - 9 VDC 0.5 AMP • RS232 communication cable 2.0 meters Parts for Assembly No parts are required for assembly. Tools Required for Assembly No tools are required. © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 8: Assembling The Scale

    Healthweigh H351-10 Assembling the Scale Use the following procedure to unfold the scale: 1. Unpack scale making sure to lift and remove the scale from the packaging using only the carrying handle. 2. Assemble all four feet. Figure 2-1. Unpacking the Scale 3.
  • Page 9: Transporting The Scale

    4. Roll the scale to its new location. Be careful not to drop the scale. This might damage the measuring results. Use the handle for easy movement or lifting in curves. 5. Gently lay the scale on the ground. 6. Unfold the scale. 7. Plug the power adapter unit into the socket. © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 10: Operation

    Healthweigh H351-10 3.0 Operation Keypad Figure 3-1. Keypad Name Function On/Off Turns the scale on or off. Print kg/lb A long press will trigger a transmission of data sent out by RS232 (see Section 3.8 on page 14). When data is sent out from the port, the display flashes the word PRINT to acknowledge the data was sent.
  • Page 11: Display

    Indicates BMI calculation is on HOLD Indicates weight reading will remain on screen until release (by pressing the HOLD again) Unit of mass on the Imperial and US customary measurement systems Table 3-2. Display Descriptions © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 12: Scale Operation

    Healthweigh H351-10 Scale Operation 1. Power the scale using either method below: • Connect the scale to the wall outlet with the AC adapter. • Ensure rechargeable batteries are installed. 2. Press the ON/OFF button to turn the scale on. The display will show START, display test, version number and finally 0.000.
  • Page 13: Rechargeable Battery

    • When on battery, the backlight power is reduced to 60 percent. NOTE: Charge indicator LED will light RED upon connecting the power adapter. The LED will light GREEN when the rechargeable batteries are fully charged. © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 14: Power And Communication Connections

    Healthweigh H351-10 Power and Communication Connections Charge Indication LED USB Communication Port Serial Communication Port Power Supply Connection (9VDC /0.5 Amp) Figure 3-4. Back of Indicator Port Location Serial Communication Port The RS232 communication cable will be connected to the lower right connector, on the connectors’ panel marked with the word COM.
  • Page 15: Print Button

    For kg Unit of Measurement: PATIENT WEIGHT 60.1 kg PATIENT HEIGHT 170.0 cm PATIENT BMI 20.8 In case of underweight or overweight, the word UNDER or OVER will be sent accordingly. © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 16: Maintenance

    Healthweigh H351-10 4.0 Maintenance This section provides instructions for maintenance, cleaning and troubleshooting Healthweigh scale models. IMPORTANT: Before first use and after periods of non-use, check the scale and batteries for proper operation and function. If the scale does not operate correctly, refer to qualified service personnel.
  • Page 17: Troubleshooting

    Definition Check/Replace A/D saturation Check loadcell - Call technician Error in reading Real Time Clock Battery of real time is empty or faulty board - Call technician Table 4-2. Error List © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 18: Specifications

    Healthweigh H351-10 5.0 Specifications H351-10-2 Capacity and Graduation Max 300 kg, Min 2 kg, Graduation (“e”) 0.1 kg Power Requirements Adapter 240V/100V, 50/60Hz-9 VDC, 500 mA Use only medically approved mains adapters compliant with EN60601-1 standards. WARNING: Use only medical approved mains adapters compliant with EN60601-1 standard.
  • Page 19 Standing Platform Height: 6 cm WARNING: In order to comply with EN60601-1, use UL/CE approved AC/DC adapter UE15WPC-1201255PA. The scale is not intended for use in the presence of flammable mixtures. © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 20 Healthweigh H351-10 H351-10-7 Capacity and Graduation Max 300 kg, Min 2 kg, Graduation (“e”) 0.1 kg Power Requirements Adapter 230V/120V, 50/60Hz-9 VDC, 500 mA Use only medically approved mains adapters compliant with EN60601-1 standards. WARNING: Use only medical approved mains adapters compliant with EN60601-1 standard.
  • Page 21 Standing Platform Height: 6 cm WARNING: In order to comply with EN60601-1, use UL/CE approved AC/DC adapter UE15WPC-1201255PA. The scale is not intended for use in the presence of flammable mixtures. © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 22: Appendix

    Healthweigh H351-10 6.0 Appendix Guidance and Manufacture's Declaration – Electromagnetic Immunity The medical scale is suitable for use in the specified electromagnetic environment and it has meets the following immunity test levels. Higher immunity levels may cause the medical scale’s essential performance lost or degraded.
  • Page 23 DECT; LTE Band 1, 3, 4, 25; UMTS 2450 2400-2570 Bluetooth, Pulse modulation WLAN, 217Hz 802.11 b/g/n, RFID 2450, LTE Band 7 5240 5100-5800 WLAN 802.11 Pulse modulation 217Hz 5500 5785 © Rice Lake Weighing Systems ● All Rights Reserved...
