- Page 2 RL350-10 Digital Wheelchair Scale 350-10 Series Software Revision 11439 Operation Manual 151640 - Rev B...
-
Page 4: Table Of Contents
Course descriptions and dates can be viewed at www.ricelake.com or obtained by calling 715-234-9171 and asking for the training department © 2014 Rice Lake Weighing Systems. All rights reserved. Specifications subject to change without notice. Rice Lake Weighing Systems is an ISO 9001 registered company... - Page 5 Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. Visit www.ricelake.com/webinars. Rice Lake Digital Wheelchair Scale Operation Manual...
-
Page 6: Introduction

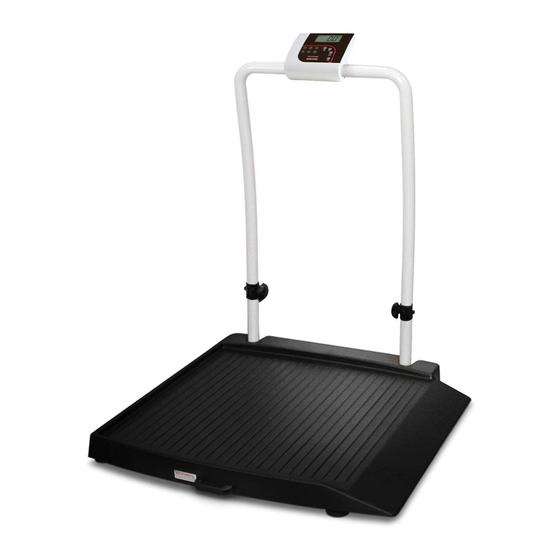

Introduction The Rice Lake Digital Wheelchair Scale is a user-friendly, quality scale, designed for safe weighing of the handicapped and mobility challenged individuals. Movement compensation technology ensures sound, accurate weighments. The scale has roll on ramp access and comes in four different configurations: •... -
Page 7: Safety
Do not operate or work on this equipment unless you have read and understand instructions in the manual. Failure to follow the instructions or heed the warnings could result in injury or death. Contact any Rice Lake Weighing Systems dealer for replacement manuals. Proper care is your responsibility. -
Page 8: Scale Assembly
Figure 3-1. Box Contents Including the Scale Surrounded by Styrofoam Packing Material Repacking If the Rice Lake Digital Wheelchair Scale must be returned for modification, calibration or repair, it must be properly packed with sufficient packing materials. Whenever possible, use the original carton when shipping the scale back. -
Page 9: Setting Up Your Scale
Figure 3-2. Lift the Scale From the Box 3. Stand the scale on its side as shown in Figure 3-3, so that the plastic packaging material can be removed. Figure 3-3. Remove Plastic Covering Material Rice Lake Digital Wheelchair Scale Operation Manual... -
Page 10: Attaching The Feet To The Scale
Attaching the Feet to the Scale The Rice Lake Digital Wheelchair Scale comes with four feet that must be attached to the scale base for proper operation. The four feet are located in the parts box in the original shipping box. Use the following steps to attach the feet to the scale. -
Page 11: Inserting Batteries
5. Loosen the handles (shown in Figure 3-6) and set upright. Figure 3-6. Loosen the Durable Hinges to Set Handles Upright 6. Tighten the two hinges on the Rice Lake Digital Wheelchair Scale by rotating the two handles. This will secure the handrail mounted indicator. -
Page 12: Ac Power Connections
AC Power Connections Use the optional 120 VAC or 230 VAC adapter when power is available. The optional AC power adapter plugs into the back of the indicator as shown in Figure 3-8. Connect the o p t i o n a l A C power source Figure 3-8. -
Page 13: Scale Operation
Scale Operation The Rice Lake Digital Wheelchair Scale display has various front panel keys as shown in Figure 4-1. Figure 4-1. Front Panel Display Keys Key Descriptions Table 4-1 describes each of the key functions. Name Function On/Off Switches the scale on or off. -
Page 14: Weighing
Used to adjust height input (0.5 in/0.5 cm) while in BMI mode. Adjusts the value of the flashing digit/number. Table 4-1. Rice Lake Digital Wheelchair Scale Key Functions The keys on the front panel display are very sensitive so only a gentle pushing motion is required to CAUTION obtain results. -
Page 15: Toggle Tare
6. The BMI value and BMI annunciator is shown on the display. Press the key to return to the CLEAR weighing mode or step off the scale and the BMI function will be turned off. Rice Lake Digital Wheelchair Scale Operation Manual... -
Page 16: Rs-232 Communication
PATIENT BMI 28.4 USB Connection The Rice Lake Digital Wheelchair Scale has the capability of connecting to a PC using a USB connection and a USB cable (not included). That connection location is shown in Figure 5-1. USB Connection RS-232 Connection... - Page 17 The USB driver can be downloaded from the Rice Lake Weighing Systems website at the following location; http://www.ricelake.com/software.aspx Select Medical/Health Scales, Software and Get Downloads. Opening any product will show a USB Driver download.
- Page 18 6. If you want to verify the installation, you can view the driver by looking at the device manager of your system. 7. To print a ticket using the USB driver, open the software driver (shown above) and the port assigned to that driver is shown.
-
Page 19: Troubleshooting And Testing
Check the load cells’ mechanical surroundings and see that nothing touches them and that the cables are properly welded. Damaged load cell cable. Replace load cell cable. Table 6-1. Troubleshooting Table for the Rice Lake Scale Line Rice Lake Digital Wheelchair Scale Operation Manual... -
Page 20: Maintenance
Maintenance The following section provides instructions for maintaining and cleaning the Rice Lake line of scales. Maintenance operations other than those described in this section should be performed by qualified service personnel. Basic Maintenance Before the first use of the scale and after periods of non-use, check the scale for proper operation and function. If the scale does not operate correctly, contact qualified service personnel. -
Page 21: Rice Lake Digital Wheelchair Scale Specifications
32 to 158°F (0 to 70°C) Humidity 85% relative humidity Capacity and Graduation 1000 lb (453kg) 0.2 lb (0.1kg) Certifications and Approvals RoHS Compliant Dimensions Platform Dimensions 48.5 in W x 29.5 in L x 3 in H Rice Lake Digital Wheelchair Scale Operation Manual... -
Page 22: For More Information
U.S. sales and product information at prodinfo@ricelake.com • International (non-U.S.) sales and product information at intlsales@ricelake.com Mailing Address Rice Lake Weighing Systems 230 West Coleman Street Rice Lake, WI 54868 USA Digital Wheelchair Scale Operation Manual - Rice Lake Digital Wheelchair Scale Specifications... -
Page 23: Rice Lake Digital Wheelchair Scale Limited Warranty
Rice Lake Digital Wheelchair Scale Limited Warranty Rice Lake Weighing Systems (RLWS) warrants that all RLWS equipment and systems properly installed by a Distributor or Original Equipment Manufacturer (OEM) will operate per written specifications as confirmed by the Distributor/OEM and accepted by RLWS. All systems and components are warranted against defects in materials and workmanship for two years. - Page 25 230 W. Coleman St. Rice Lake, WI 54868 USA U.S. 800-472-6703 Canada/Mexico 800-321-6703 International 715-234-9171 Europe +31 (0) 88 2349171 www.ricelake.com www.ricelake.mx www.ricelake.eu www.ricelake.co.in m.ricelake.com © Rice Lake Weighing Systems 09/2014 PN 151640, Rev B...
