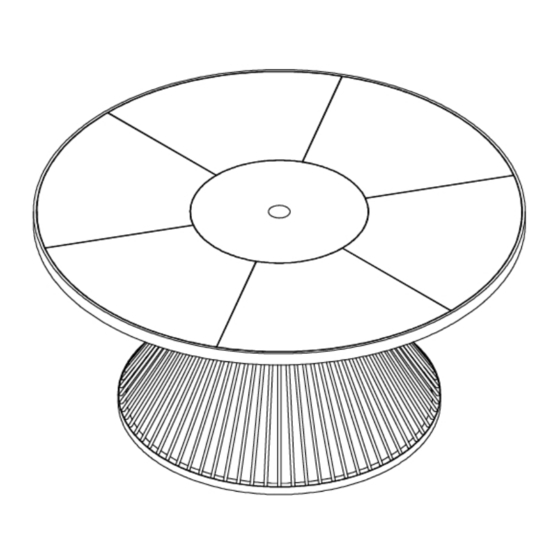

60” round dining table

Advertisement

Quick Links

Assembly Instructions & User's Manual
For
Member's Mark
60" Round Dining Table
Item Number: 990018885
Model Number: GT-12345-AAM
Customer Assistance
: 1-888-691-2824
(spare/replacement parts)
or Email:
customerservice@coronadocasuals.com
THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
1 |
P a g e

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GT-12345-AAM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Member's Mark GT-12345-AAM

  • Page 1 Assembly Instructions & User’s Manual Member’s Mark 60” Round Dining Table Item Number: 990018885 Model Number: GT-12345-AAM Customer Assistance : 1-888-691-2824 (spare/replacement parts) or Email: customerservice@coronadocasuals.com THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
  • Page 2 Table of Contents Quality Statement ............................3 Important Safety Information ........................3 Before Assembly .............................3 Care & Use ..............................3 Package Contents ...........................4 Product Information ..........................5 Components ..............................5 Hardware ..............................5 Tools ................................5 Step 1 .................................6 Step 2 .................................7 Warranty Information ..........................8 P a g e...
  • Page 3 Quality Statement Important Safety Information  Please read all instructions carefully before assembling this product.  Where applicable, and for your safety, assembly by an adult is strongly recommended.  Use only vendor-supplied hardware to assemble this item. Using unauthorized hardware could jeopardize the structural integrity of the item.
  • Page 4 Package Contents Component Description Quantity Component Description Quantity Allen/Hex Head Bolt Table top M6x25mm Table base 1 M12 Washer Table base 2 Need Assistance? Visit us at: samsclub.com/membersmarkhelp P a g e...
  • Page 5 Product Information Product Dimensions Table: φ60” x 29” (φ152.5cm x 73.5cm) Product Weight Capacity Table: Supports up to 100 lbs. (45 kg) Components Table top Table base 1 Table base 2 Qty: 1pc Qty: 1pc Qty: 1pc Hardware Allen/Hex Head Bolt M6 Washer Qty: 10pcs M6x25mm...
  • Page 6 Step 1 Table base 1 Table base 2 Allen/Hex Head Bolt M6 Allen Wrench M6 Washer Qty: 1pc Qty: 1pc Qty: 4pcs M6x25mm Qty: 1pc Qty: 4pcs Carefully place the table base 1 (B) upside down on a non-abrasive surface. Assemble the table base 1 (B) to the table base 2 (C) with M6 bolts (D) and M6 Washer (E) by using M6 Allen Wrench (F).
  • Page 7 Step 2 Table top Allen/Hex Head Bolt M6 Allen Wrench M6 Washer Qty: 1pc Qty: 6pcs M6x25mm Qty: 1pc Qty: 6pcs Carefully place the table top (A) upside down on a non-abrasive surface. Assemble the table top (A) to table base with M6 bolts (D) and M6 Washer (E) by using M6 Allen Wrench (F).
  • Page 8 Warranty Information This product component has a 5 year guarantee against defects in material and/or workmanship. If you have any questions regarding the warranty or spare / replacement parts, please call our toll-free number customerservice@coronadocasuals.com 1-888-691-2824 or email us at NOTE: Please consider recycling all applicable packaging material.
