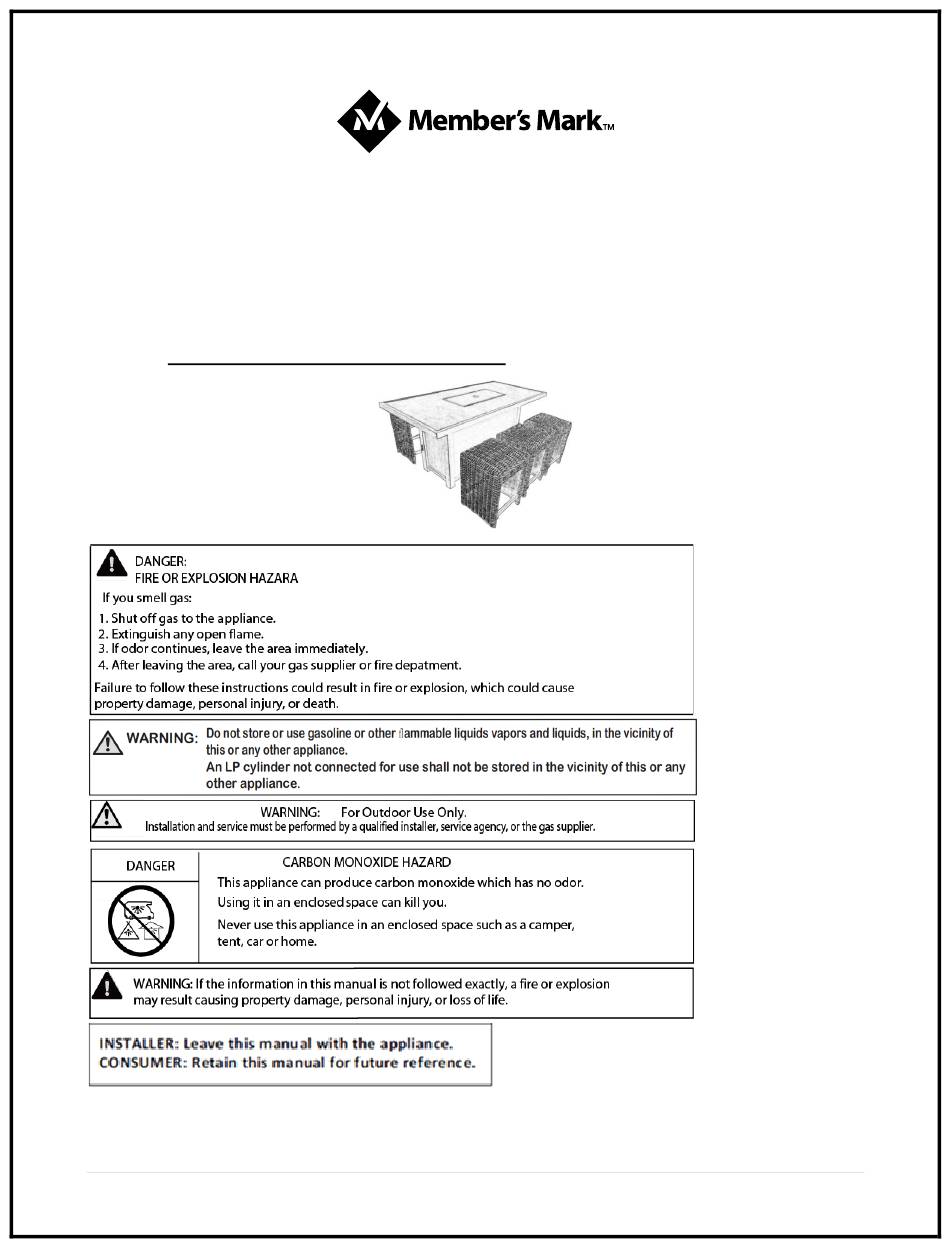

Assembly Instructions & User's Manual For
Member's Mark
Halstead 7pc Bar Dining Set With Fire Table
Item Number: xxxxxxxx
Model Number: GC-11511-7PC
Customer Assistance (spare/replacement parts): 1-800-691-2824
or Email: customerservice@coronadocasuals.com
THIS ASSEMBLY MANUAL CONTAINS INPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
1 |
P a g e
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Member's Mark Halstead GC-11511-7PC
Summary of Contents for Member's Mark Halstead GC-11511-7PC
- Page 1 Assembly Instructions & User’s Manual For Member’s Mark Halstead 7pc Bar Dining Set With Fire Table Item Number: xxxxxxxx Model Number: GC-11511-7PC Customer Assistance (spare/replacement parts): 1-800-691-2824 or Email: customerservice@coronadocasuals.com THIS ASSEMBLY MANUAL CONTAINS INPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. P a g e...
-
Page 2: Table Of Contents
Table of Contents Quality Statement ............................. 3 Important Safety Information ........................ 3 Before Assembly ..........................3 Care & Use ............................3 Safety Warnings ..........................4-5 Package Contents ...........................6 Product Information ........................6 Components ............................7 Hardware ............................7 Tools ..............................7 Step 1 ..............................8 Step 2 ..............................9 Step 3 ..............................9 Loading the propane ........................10 Loading the battery. -
Page 3: Quality Statement
Quality Statement Important Safety Information • Please read all instructions carefully before assembling this product. • Where applicable, and for your safety, assembly by an adult is strongly recommended. • Use only vendor-supplied hardware to assemble this item. Using unauthorized hardware could jeopardize the structural integrity of the item. -
Page 4: Safety Warnings
Safety Warnings Need Assistance? Visit us at: samsclub.com/membersmarkhelp P a g e... - Page 5 Safety Warnings (continued) Need Assistance? Visit us at: samsclub.com/membersmarkhelp P a g e...
-
Page 6: Package Contents
Package Contents Component Description Quantity Component Description Quantity Table top M6 Washer Table base Allen Wrench Burner Cover 8kg Glass beads Allen/Hex Bolt M6x25mm Product Information Product Dimensions： Padded Bar Chair: 17.5” x 17.5” x 25.5” (44.5cm x 44.5cm x 64.75cm) Firepit Table: 72”... -
Page 7: Components
Components Table top Table base Burner Cover 8kg Glass beads Qty: 1pc Qty: 1pc Qty: 1pc Qty: 1pc Hardware Allen/Hex Bolt M6 Washer M6x25mm Qty: 4pcs Qty: 4pcs Tools M6 Allen Wrench Qty: 1pc Need Assistance? Visit us at: samsclub.com/membersmarkhelp P a g e... -
Page 8: Step 1
Step 1 Table top Allen/Hex Bolt M6x25mm Table base Qty: 1pc Qty: 4pcs Qty: 1pc M6 Washer M6 Allen Wrench Qty: 4pcs Qty: 1pc Carefully place table top (A) upside down a soft, flat and non-abrasive surface. Attach the table base (B) to table top (A) with bolts(D) and Washer(E) by using M6 Allen Wrench(F). -
Page 9: Step 2
Step 2 Carefully turn the Firepit table over. Place the glass beads (G) around the burner. Step 3 Place Burner Cover onto the fire bowl. NOTE: Glass beads is not included. When the fire pit is not in use and has cooled COMPLETELY, cover it with the Burner Cover. -
Page 10: Loading The Propane
Need Assistance? Visit us at: samsclub.com/membersmarkhelp Loading the propane Open the door Carefully place the cylinder into the tank rack. Tighten the bolt to hold the cylinder in Place. Loading the battery Unscrew the battery box, insert the negative electrode side of the battery into the bottom of the battery box Note: Please follow the above instructions to replace the battery when needed. -
Page 11: Gas Connection
Need Assistance? Visit us at: samsclub.com/membersmarkhelp Gas connection Connect the pressure regulator (4#) to the cylinder by rotating the knob(5#) clockwise until it is fully secured. Make sure there is no leakage or damage. The minimum inlet gas 25PSI supply pressure for the purpose of input adjustment; The maximum inlet gas 250PSI supply pressure. -
Page 12: Leak Check
Need Assistance? Visit us at: samsclub.com/membersmarkhelp Leak Check NOTE 1. Make sure the gas control knob (2#) is on the “OFF” position. Open access doors. 2. Make sure the gas cylinder is correctly and security connected to the pressure regulator, with a tight fit. 3. -
Page 13: Shutting Down The Gas
Need Assistance? Visit us at: samsclub.com/membersmarkhelp SHUTTING DOWN THE GAS 1. Turn the gas control knob (2#) to “OFF” to shut down appliance. 2. Turn the gas cylinder valve (7#) off when the gas appliance will not be in use. 13 | P a g e... -
Page 14: Warning
Gas Cylinder Required Need Assistance? Visit us at: samsclub.com/membersmarkhelp Warning For outdoor use only. FUELS USED IN LIQUEFIED PROPANE GAS APPLIANCES, AND THE PRODUCTS OF COMBUSTION OF SUCH FUELS, CAN EXPOSE YOU TO CHEMICALS INCLUDING BENZENE, WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND CAUSE BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. -
Page 15: Danger
Danger If you smell gas: 1. Shut off the gas to the appliance. 2. Extinguish any open flame. 3. If the odor continues, keep away from the appliance and immediately call your gas supplier or fire department. CARBON MONOXIDE HAZARD 1.This appliance can produce carbon monoxide, which has no odor. -
Page 16: Warranty Information
For maximum protection, use Heavy Duty Furniture Cover (J). Fasten adjustable cord lock to secure the cover from wind and snug fit. Need Assistance? Visit us at: samsclub.com/membersmarkhelp Warranty Information This product component has a 5 year guarantee against defects in material and/or workmanship. If you have any questions regarding the warranty or spare / replacement parts, please call our toll-free number customerservice@coronadocasuals.com 1-800-691-2824 or email us at... - Page 17 Distributed by Sam’s West Inc. 2101 SE Simple Savings Dr. Bentonville, Arkansas 72716-0745 Made in China Need Assistance? Visit us at: samsclub.com/membersmarkhelp 17 | P a g e...
