Assembly Instructions & User's Manual
For
Member's Mark

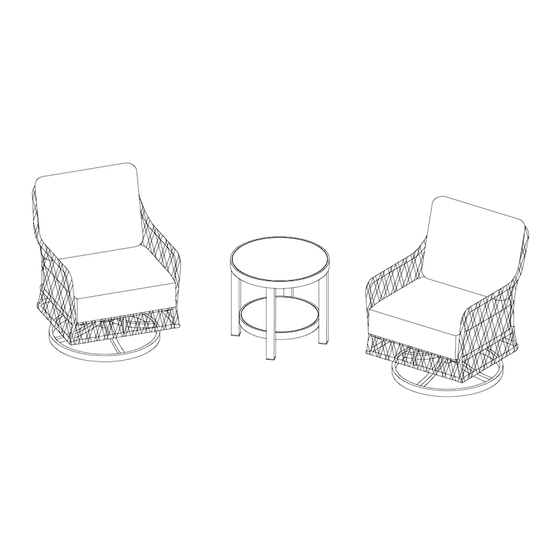

Bridgewater 3pc Bistro Set
Item Number: 990018893
Model Number: GC-41090B-3PC
Customer Assistance
: 1-888-691-2824
(spare/replacement parts)
or Email:
customerservice@coronadocasuals.com
THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
1 |
P a g e

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Bridgewater GC-41090B-3PC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Member's Mark Bridgewater GC-41090B-3PC

  • Page 1 Assembly Instructions & User’s Manual Member’s Mark Bridgewater 3pc Bistro Set Item Number: 990018893 Model Number: GC-41090B-3PC Customer Assistance : 1-888-691-2824 (spare/replacement parts) or Email: customerservice@coronadocasuals.com THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. P a g e...
  • Page 2: Table Of Contents

    Table of Contents Quality Statement ............................3 Important Safety Information ........................3 Before Assembly .............................3 Care & Use ..............................3 Swivel Rocker Chair Package Contents ...........................4 Product Information ..........................4 Components ..............................5 Hardware ..............................5 Tools ................................5 Step 1 .................................6 Step 2............................7 Coffee Table Package Contents ...........................8 Components ..............................9 Hardware ..............................9 Tools ................................9...
  • Page 3: Quality Statement

    Quality Statement Important Safety Information  Please read all instructions carefully before assembling this product.  Where applicable, and for your safety, assembly by an adult is strongly recommended.  Use only vendor-supplied hardware to assemble this item. Using unauthorized hardware could jeopardize the structural integrity of the item.
  • Page 4: Product Information

    Component Description Quantity Component Description Quantity Chair frame M8 Washer Chair base M8 Spring Washer Metal plate M8 Damping Nut Hex Head Bolt M8x45mm Product Information Product Dimensions: Swivel Rocker Chair: 27"x31.9"x32.25" (68.6cm x 81cm x 82cm) Side table: φ22"x20" (φ55.9cm x 50.8cm) Product Weight Capacity Swivel Rocker Chair: Supports up to 250 lbs.
  • Page 5: Hardware

    Chair frame Chair base Seat cushion Back cushion Qty: 1pc Qty: 1pc Qty: 1pc Qty: 1pc Hardware Metal plate M8 Damping Nut Hex Head Bolt M8 Washer M8 Spring Washer Qty: 4pcs Qty: 4pcs M8x45mm Qty: 8pcs Qty: 4pcs Qty: 4pcs Tools M8 Hex Wrench Qty: 2pc...
  • Page 6: Step 1

    Step 1 Chair frame Chair base Metal plate Hex Head Bolt Qty: 1pc Qty: 1pc Qty: 4pcs M8x45mm Qty: 4 M8 Washer M8 Spring Washer M8 Damping Nut M8 Hex Wrench Qty: 8pcs Qty: 4pcs Qty: 4 Qty: 2 Carefully place chair frame(A) upside down a soft, flat and non-abrasive surface. Attach the base (B) to chair frame (A) using M8 bolts(F), Washer(G), Spring washer (H) and M8 Damping nuts (I) .
  • Page 7: Step 2

    Step 2 Carefully turn the chair over. Place the seat cushions (C) and back cushion (D) on the swivel chair. The chair is ready for your enjoyment. Need Assistance? Visit us at: samsclub.com/membersmarkhelp P a g e...
  • Page 8: Package Contents

    Side Table Package Contents Component Description Quantity Component Description Quantity M6 Washer Table shelf Table leg Allen/Hex Head Bolt M6x25mm Table top Need Assistance? Visit us at: samsclub.com/membersmarkhelp P a g e...
  • Page 9: Components

    Components Table shelf Table leg Table Top Qty: 1pc Qty: 4pcs Qty: 1pc Hardware M6 Washer Allen/Hex Head Bolt Qty: 12pcs M6x25mm Qty: 12pcs Tools M6 Allen Wrench Qty: 1pc Need Assistance? Visit us at: samsclub.com/membersmarkhelp P a g e...
  • Page 10: Step 1

    Step 1 M6 Washer Table shelf Table leg M6 Allen Wrench Allen/Hex Head Qty: 1pc Qty: 4pcs Qty: 4pcs Bolt M6x25mm Qty: 1pc Qty: 4pcs Carefully place the table shelf (A) upside down on a non-abrasive surface. Assemble the table legs (B) to the table shelf(A) with bolts (F) and M6 washer (E) by using Allen wrench (H).
  • Page 11: Step 2

    Step 2 M6 Washer Table top M6 Allen Wrench Allen/Hex Head Bolt Qty: 1pc Qty: 8pcs M6x25mm Qty: 1pc Qty: 8pcs Carefully place the table top (C) upside down on a non-abrasive surface. Assemble the table legs (B) to table top (C) with bolts (F) and washer (E) by using Allen wrench (H).
  • Page 12: Warranty Information

    Warranty Information This product component has a 5 year guarantee against defects in material and/or workmanship. If you have any questions regarding the warranty or spare / replacement parts, please call our toll-free number customerservice@coronadocasuals.com 1-888-691-2824 or email us at NOTE: Please consider recycling all applicable packaging material.
