Assembly Instructions & User's Manual
For
Member's Mark
Halstead 4pc Sectional Set
Item Number: 990018886
Model Number: GB-11457-4PC
Customer Assistance
: 1-888-691-2824
(spare/replacement parts)
or Email:
customerservice@coronadocasuals.com
THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
1 |
P a g e
Advertisement
Table of Contents
Related Manuals for Member's Mark Halstead GB-11457-4PC
Summary of Contents for Member's Mark Halstead GB-11457-4PC

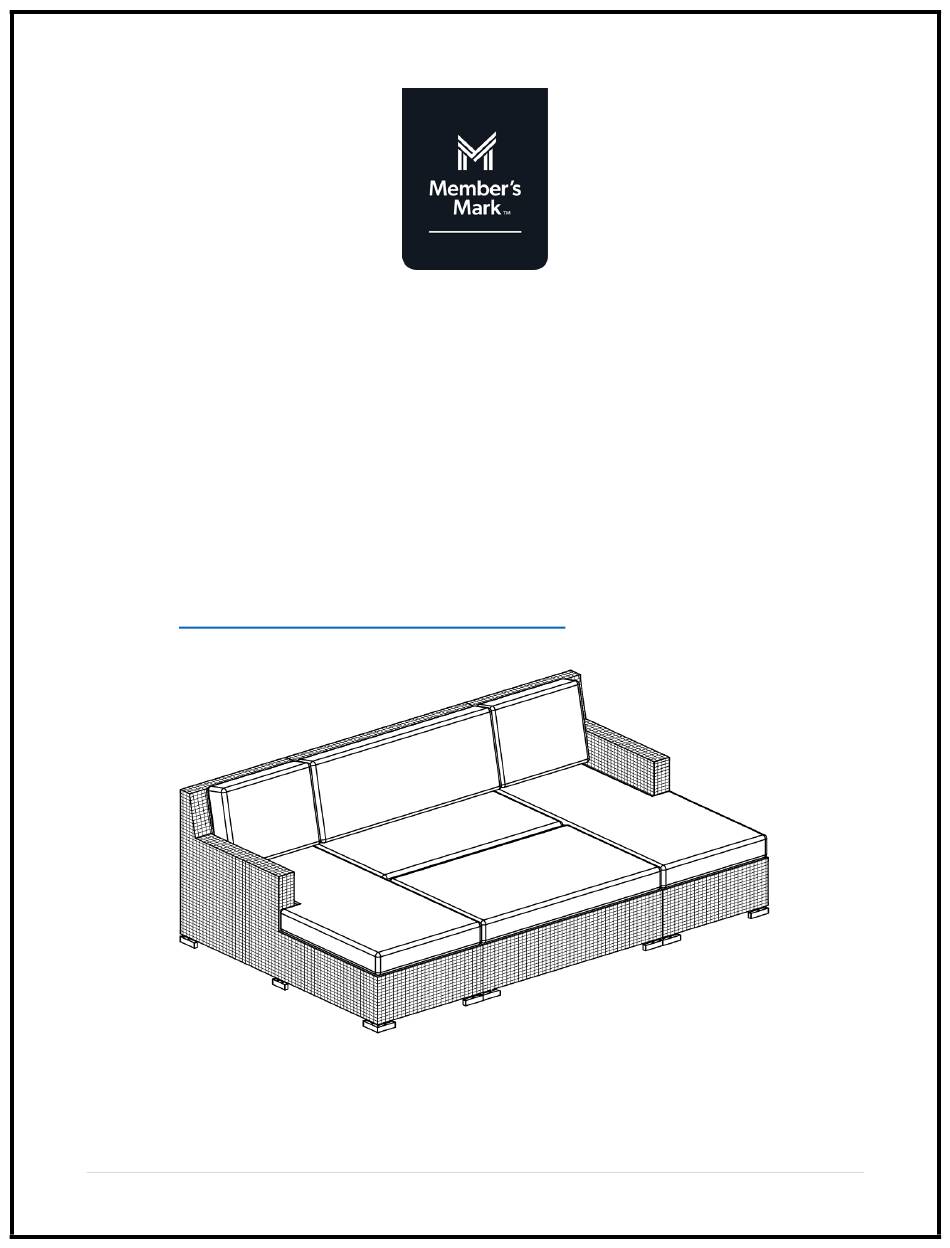

- Page 1 Assembly Instructions & User’s Manual Member’s Mark Halstead 4pc Sectional Set Item Number: 990018886 Model Number: GB-11457-4PC Customer Assistance : 1-888-691-2824 (spare/replacement parts) or Email: customerservice@coronadocasuals.com THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. P a g e...
- Page 2 Table of Contents Quality Statement ............................3 Important Safety Information ........................3 Before Assembly .............................3 Care & Use ..............................3 Package Contents ...........................4 Product Information ..........................4 Components ..............................5 Hardware ..............................5 Tools ................................5 Step 1 .................................6 Furniture Cover..........................7 Warranty Information ..........................8 P a g e...
- Page 3 Quality Statement Important Safety Information Please read all instructions carefully before assembling this product. Where applicable, and for your safety, assembly by an adult is strongly recommended. Use only vendor-supplied hardware to assemble this item. Using unauthorized hardware could jeopardize the structural integrity of the item.
- Page 4 Package Contents Component Description Quantity Component Description Quantity Left arm lounge Connection plate chaise Amless middle Allen/Hex Bolt chair M6x25mm Right arm lounge M6 Washer chaise Product Information Product Dimensions： Left arm lounge chaise: 66" x 29.5" x 34.6" (167.6cm x 75cm x 87.9cm) Amless middle chair: 50"...
- Page 5 Components Left arm lounge Amless middle chair Right arm lounge chaise Qty: 1pc chaise Qty: 1pc Qty: 1pc Hardware Connection plate Allen/Hex Bolt M6 Washer Qty: 4pcs M6x25mm Qty: 8pcs Qty: 8pcs Tools M6 Allen Wrench Qty: 1pc Need Assistance? Visit us at: samsclub.com/membersmarkhelp P a g e...
- Page 6 Step 1 Left arm lounge chaise Amless middle chair Right arm lounge chaise Qty: 1pc Qty: 1pc Qty: 1pc Allen/Hex Bolt M6 Washer M6 Allen Wrench M6x25mm Qty: 8pcs Qty: 1pc Qty: 8pcs Attach the Left arm lounge chaise (A) to Amless middle chair (B) using Connection plate (D), bolts(E) and Washer(F) with M6 Allen Wrench(G).
- Page 7 Furniture Cover Component Description Quantit Compon Description ntity Left arm lounge chaise Back cushion for Amless middle chair Amless middle chair Seat cushion for Amless middle chair Right arm lounge Seat cushion for Ottoman chaise Seat cushion for Left Furniture cover for Whole arm lounge chaise Back cushion for Ottoman...
- Page 8 Warranty Information This product component has a 5 year guarantee against defects in material and/or workmanship. If you have any questions regarding the warranty or spare / replacement parts, please call our toll-free number customerservice@coronadocasuals.com 1-888-691-2824 or email us at NOTE: Please consider recycling all applicable packaging material.
