Assembly Instructions & User's Manual
For
Member's Mark

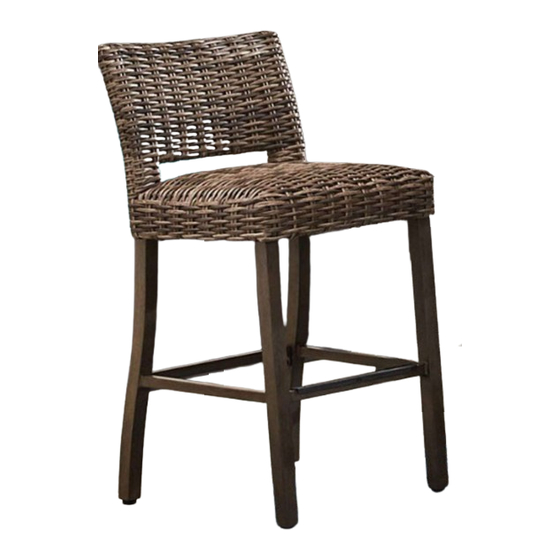

2pk Halstead serving bar chair
Item Number: 990018805
Model Number: GC-31062-2PK
Customer Assistance
: 1-888-691-2824
(spare/replacement parts)
or Email:
customerservice@coronadocasuals.com
THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
1 |
P a g e
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Member's Mark GC-31062-2PK
Summary of Contents for Member's Mark GC-31062-2PK
- Page 1 Assembly Instructions & User’s Manual Member’s Mark 2pk Halstead serving bar chair Item Number: 990018805 Model Number: GC-31062-2PK Customer Assistance : 1-888-691-2824 (spare/replacement parts) or Email: customerservice@coronadocasuals.com THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
- Page 2 Table of Contents Quality Statement ............................3 Important Safety Information ........................3 Before Assembly .............................3 Care & Use ..............................3 Package Contents ...........................4 Product Information ..........................4 Components ..............................5 Hardware ..............................5 Tools ................................5 Step 1 .................................6 Step 2 .................................7 Warranty Information ..........................8 P a g e...
- Page 3 Quality Statement Important Safety Information Please read all instructions carefully before assembling this product. Where applicable, and for your safety, assembly by an adult is strongly recommended. Use only vendor-supplied hardware to assemble this item. Using unauthorized hardware could jeopardize the structural integrity of the item.
- Page 4 Package Contents Component Description Quantity Component Description Quantity Chair frame Allen/Hex Head Bolt M6x25mm Chair base M6 Washer Supporting bar Product Information Product Dimensions Chair: 20.75"x24.6"x40.5" (52.7cm x 62.5cm x 102.9cm) Product Weight Capacity Chair: Supports up to 250 lbs. (114kg) Need Assistance? Visit us at: samsclub.com/membersmarkhelp P a g e...
- Page 5 Components Chair frame Chair base Supporting bar Qty: 1pc Qty: 1pc Qty: 1pc Hardware Allen/Hex Head Bolt M6 Washer Qty: 8pcs M6x25mm Qty: 8pcs Tools M6 Allen Wrench Qty: 1pc Need Assistance? Visit us at: samsclub.com/membersmarkhelp P a g e...
- Page 6 Step 1 Chair base Supporting bar Allen/Hex Head Bolt M6 Allen Wrench M6 Washer Qty: 1pc Qty: 1pc Qty: 2pcs M6x25mm Qty: 1pc Qty: 2pcs Assemble the Supporting bar (C) to Chair base (B) with M6 bolts (D) and M6 Washer (E) by using M6 Allen Wrench (F).
- Page 7 Step 2 Chair frame Allen/Hex Head Bolt M6 Allen Wrench M6 Washer Qty: 1pc Qty: 6pcs M6x25mm Qty: 1pc Qty: 6pcs Carefully place the Chair frame (A) upside down on a non-abrasive surface. Assemble the chair base to Chair frame (A) with M6 bolts (D) and M6 Washer (E) by using M6 Allen Wrench (F).
- Page 8 Warranty Information This product component has a 5 year guarantee against defects in material and/or workmanship. If you have any questions regarding the warranty or spare / replacement parts, please call our toll-free number customerservice@coronadocasuals.com 1-888-691-2824 or email us at NOTE: Please consider recycling all applicable packaging material.
