Assembly Instructions & User's Manual
For
Member's Mark
Santa Monica 4pc S
eating Set
Item Number: xxxxxxxx
Model Number: GC-41081-4PC
Customer Assistance
: 1-800-691-2824
(spare/replacement parts)
or Email: customerservice@coronadocasuals.com
THIS ASSEMBLY MANUAL CONTAINS INPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
1 |
P a g e
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Member's Mark Santa Monica GC-41081-4PC
Summary of Contents for Member's Mark Santa Monica GC-41081-4PC
- Page 1 Assembly Instructions & User’s Manual Member’s Mark Santa Monica 4pc S eating Set Item Number: xxxxxxxx Model Number: GC-41081-4PC Customer Assistance : 1-800-691-2824 (spare/replacement parts) or Email: customerservice@coronadocasuals.com THIS ASSEMBLY MANUAL CONTAINS INPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. P a g e...
-
Page 2: Table Of Contents
Table of Contents Quality Statement ............................. 3 Important Safety Information ........................ 3 Before Assembly ............................3 Care & Use ..............................3 Product Information ..........................4 Coffee Table Package Contents........................4 Components .............................. 5 Hardware ..............................5 Tools ................................5 Step 1 ................................. 6 Step 2............................7 Step 3 ................................. -
Page 3: Quality Statement
Quality Statement Important Safety Information • Please read all instructions carefully before assembling this product. • Where applicable, and for your safety, assembly by an adult is strongly recommended. • Use only vendor-supplied hardware to assemble this item. Using unauthorized hardware could jeopardize the structural integrity of the item. -
Page 4: Product Information
Product Information Product Dimensions： Swivel glider: 32.25” x 34.5” x 32.5” (81.9cm x 87.6cm x 82.6cm) Sofa: 80.25” x 34.5” x 32.5” (203.84cm x 87.6cm x 82.6cm) Coffee table: 48” x 26.25” x 20” (121.9cm x 66.68cm x 50.8cm) Product Weight Capacity Swivel glider: Supports up to 300 lbs. -
Page 5: Components
Components Table top Table leg 1 Table leg 2 Shelf Qty: 1pc Qty: 2pcs Qty: 2pcs Qty: 1pc Hardware Allen/Hex Bolt M6 Washer M6x25mm Qty: 12pcs Qty: 12pcs Tools M6 Allen Wrench Qty: 1pc Need Assistance? Visit us at: samsclub.com/membersmarkhelp P a g e... -
Page 6: Step 1
Step 1 Table top Allen/Hex Bolt Table leg 1 Qty: 1pc M6x25mm Qty: 2pcs Qty: 4pcs M6 Washer M6 Allen Wrench Qty: 4pcs Qty: 1pc Carefully place table top (A) upside down a soft, flat and non-abrasive surface. Attach the table leg 1 (B) to table top (A) with bolts(E) and Washer(F) by using M6 Allen Wrench(G). -
Page 7: Step 2
Step 2 Table top Allen/Hex Bolt Table leg 2 Qty: 1pc M6x25mm Qty: 2pcs Qty: 4pcs M6 Washer M6 Allen Wrench Qty: 4pcs Qty: 1pc Attach the table leg 2 (C) to table top (A) with bolts(E) and Washer(F) by using M6 Allen Wrench(G). -
Page 8: Step 3
Step 3 Shelf Allen/Hex Bolt M6 Washer M6 Allen Wrench Qty: 1pc M6x25mm Qty: 4pcs Qty: 1pc Qty: 4pcs Attach the Shelf (D) to table leg 1 (B) and table leg 2 (C) with bolts(E) and Washer(F) by using M6 Allen Wrench(G). Tighten all bolts with Allen wrench (G). -
Page 9: Sofa
Sofa Package Contents Component Description Quantity Component Description Quantity Sofa frame Allen/Hex Head Bolt M6x45mm Sofa seat plate M6 washer M6 Plastic washer Need Assistance? Visit us at: samsclub.com/membersmarkhelp P a g e... -
Page 10: Components
Components Sofa frame Sofa seat plate Qty: 1pc Qty: 1pc Hardware Allen/Hex Head M6 washer M6 Plastic washer Bolt M6x45mm Qty: 7pcs Qty: 4pcs Qty: 7pcs Tools M6 Allen Wrench Qty: 1pc Need Assistance? Visit us at: samsclub.com/membersmarkhelp 10 | P a g e... -
Page 11: Step 1
Step 1 Sofa frame Sofa seat plate Allen/Hex Head Bolt M6 washer Qty: 1pc Qty: 1pc M6x45mm Qty: 4 Qty: 4pcs M6 Plastic washer Qty: 4pcs Carefully place sofa frame(A) upside down a soft, flat and non-abrasive surface. Attach the sofa seat plate (B) to sofa frame (A) with bolts(C), M6 Plastic washer(E) Washer(D) by using Allen Wrench(F). -
Page 12: Step 2
Step 2 Allen/Hex Head Bolt M6 washer M6x45mm Qty: 3 Qty: 3pcs Attach the sofa seat plate (B) to sofa frame (A) with bolts(C) and Washer(D) by using Allen Wrench(F). Tighten all bolts with Allen wrench (F). Need Assistance? Visit us at: samsclub.com/membersmarkhelp 12 | P a g e... -
Page 13: Step 3
Step 3 Seat cushion Back cushion Qty: 3pcs Qty: 3 Carefully turn the sofa over. Place the seat cushions (G) and back cushion (H) on the sofa. The sofa is ready for your enjoyment. If the sofa is uneven, you can adjust the feet to make it even. Need Assistance? Visit us at: samsclub.com/membersmarkhelp 13 | P a g e... -
Page 14: Furniture Cover
Furniture Cover Component Description Quantity Component Description Quantity Seat cushion Sofa Back cushion Furniture cover for sofa Swivel glider chair Coffee table Furniture cover for Furniture cover for coffee Swivel glider chair table For maximum protection, use Heavy Duty Furniture Cover (J&L&N). Fasten adjustable cord lock to secure the cover from wind and snug fit. -
Page 15: Warranty Information
Warranty Information This product component has a 5 year guarantee against defects in material and/or workmanship. If you have any questions regarding the warranty or spare / replacement parts, please call our toll-free number customerservice@coronadocasuals.com 1-800-691-2824 or email us at NOTE: Please consider recycling all applicable packaging material.
Need help?
Do you have a question about the Santa Monica GC-41081-4PC and is the answer not in the manual?
Questions and answers

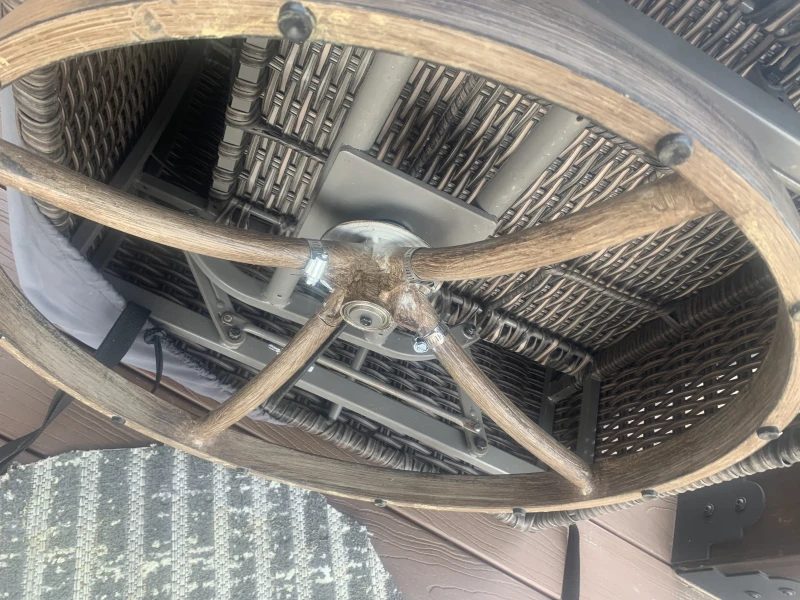

The round base on my gc41081 broke do you have that part and what’s the price
