Assembly Instructions & User's Manual
For
Member's Mark

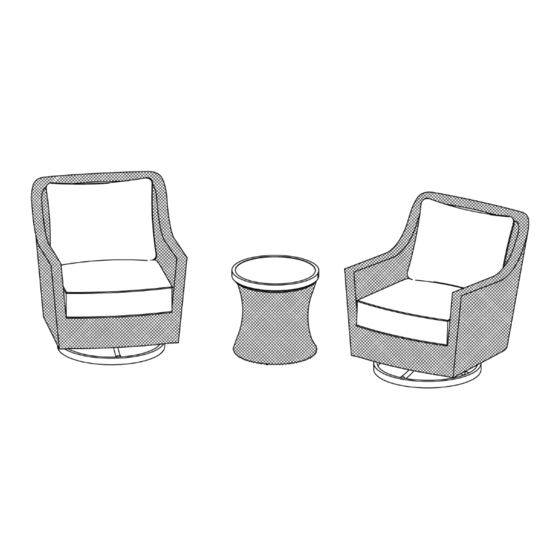

Camden 3pc Chat Set
Item Number: 990018804
Model Number: GC-41104-3PC
Customer Assistance
: 1-888-691-2824
(spare/replacement parts)
or Email:
customerservice@coronadocasuals.com
THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
1 |
P a g e
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Member's Mark Camden GC-41104-3PC
Summary of Contents for Member's Mark Camden GC-41104-3PC
- Page 1 Assembly Instructions & User’s Manual Member’s Mark Camden 3pc Chat Set Item Number: 990018804 Model Number: GC-41104-3PC Customer Assistance : 1-888-691-2824 (spare/replacement parts) or Email: customerservice@coronadocasuals.com THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. P a g e...
-
Page 2: Table Of Contents
Table of Contents Quality Statement ............................3 Important Safety Information ........................3 Before Assembly .............................3 Care & Use ..............................3 Package Contents ...........................4 Product Information ..........................4 Components ..............................5 Hardware ..............................5 Tools ................................5 Step 1 .................................6 Step 2 ............................7 Warranty Information ..........................12 P a g e... -
Page 3: Quality Statement
Quality Statement Important Safety Information Please read all instructions carefully before assembling this product. Where applicable, and for your safety, assembly by an adult is strongly recommended. Use only vendor-supplied hardware to assemble this item. Using unauthorized hardware could jeopardize the structural integrity of the item. -
Page 4: Package Contents
Package Contents Component Description Quantity Component Description Quantity Chair frame M8 Washer Chair base M8 Spring Washer Metal plate M8 Damping Nut Hex Head Bolt M8x50mm Product Information Product Dimensions： Swivel Rocker Chair: 31.7"x35.8"x34.6" (80.5cm x 91cm x 87.8cm) Side table: φ20"x20" (φ50.8cm x 50.8cm) Product Weight Capacity Swivel Rocker Chair: Supports up to 250 lbs. -
Page 5: Components
Components Chair frame Chair base Seat cushion Back cushion Qty: 1pc Qty: 1pc Qty: 1pc Qty: 1pc Hardware Metal plate M8 Damping Nut Hex Head Bolt M8 Washer M8 Spring Washer Qty: 4pcs Qty: 4pcs M8x50mm Qty: 8pcs Qty: 4pcs Qty: 4pcs Tools M8 Hex Wrench... -
Page 6: Step 1
Step 1 Chair frame Chair base Metal plate Hex Head Bolt Qty: 1pc Qty: 1pc Qty: 4pcs M8x45mm Qty: 4 M8 Washer M8 Spring Washer M8 Damping Nut M8 Hex Wrench Qty: 8pcs Qty: 4pcs Qty: 4 Qty: 2 Carefully place chair frame(A) upside down a soft, flat and non-abrasive surface. Attach the chair base (B) to chair frame (A) using M8 bolts(F), Washer(G), Spring washer (H) and M8 Damping nuts (I) . -
Page 7: Step 2
Step 2 Carefully turn the chair over. Place the seat cushions (C) and back cushion (D) on the swivel chair. The chair is ready for your enjoyment. Need Assistance? Visit us at: samsclub.com/membersmarkhelp P a g e... - Page 8 Furniture Cover Component Description Quantity Component Description Quantity Swivel Rocker Side Table Chair Furniture Cover for Furniture Cover for Swivel Rocker Side table Chair For maximum protection, use Heavy Duty Furniture Cover (L&N). Fasten adjustable cord lock to secure the cover from wind and snug fit. Need Assistance? Visit us at: samsclub.com/membersmarkhelp P a g e...
-
Page 9: Warranty Information
Warranty Information This product component has a 5 year guarantee against defects in material and/or workmanship. If you have any questions regarding the warranty or spare / replacement parts, please call our toll-free number customerservice@coronadocasuals.com 1-888-691-2824 or email us at NOTE: Please consider recycling all applicable packaging material.
