Assembly Instructions & User's Manual
For
Member's Mark

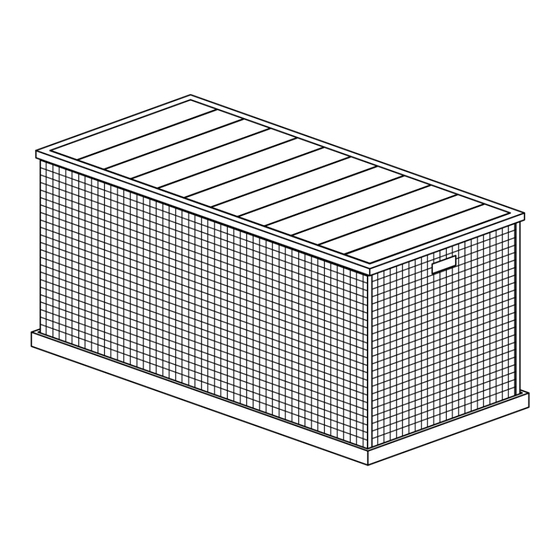

Halstead Deck Box
Item Number: 990018887
Model Number: GT-12395-AAR
Customer Assistance
: 1-888-691-2824
(spare/replacement parts)
or Email:
customerservice@coronadocasuals.com
THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
1 |
P a g e
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Member's Mark GT-12395-AAR
Summary of Contents for Member's Mark GT-12395-AAR
- Page 1 Assembly Instructions & User’s Manual Member’s Mark Halstead Deck Box Item Number: 990018887 Model Number: GT-12395-AAR Customer Assistance : 1-888-691-2824 (spare/replacement parts) or Email: customerservice@coronadocasuals.com THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. P a g e...
-
Page 2: Table Of Contents
Table of Contents Quality Statement ............................3 Important Safety Information ........................3 Before Assembly .............................3 Care & Use ..............................3 Package Contents ...........................4 Product Information ..........................5 Components ..............................5 Hardware ..............................5 Tools ................................5 Step 1 .................................6 Step 2............................7 Step 3 .................................8 Warranty Information ..........................8 P a g e... -
Page 3: Quality Statement
Quality Statement Important Safety Information Please read all instructions carefully before assembling this product. Where applicable, and for your safety, assembly by an adult is strongly recommended. Use only vendor-supplied hardware to assemble this item. Using unauthorized hardware could jeopardize the structural integrity of the item. -
Page 4: Package Contents
Package Contents Component Description Quantity Component Description Quantity Table top and back Air pump panel Left side woven Allen/Hex Head Bolt panel M6x20mm Allen/Hex Head Bolt Right side woven panel M6x35mm Front woven panel M6 Washer Bottom panel Need Assistance? Visit us at: samsclub.com/membersmarkhelp P a g e... -
Page 5: Product Information
Product Information Product Dimensions Deck Box: 60.8"x28.5"x27.75" (154.5cm x 72.4cm x 70.5cm) Product Weight Capacity Deck Box: Supports up to 100 lbs. (45 kg) Components Table top and back Left side woven Right side woven Front woven Bottom panel panel panel panel panel... -
Page 6: Step 1
Step 1 Table top and back panel Left side woven panel Right side woven panel Qty: 1pc Qty: 1pc Qty: 1pc Allen/Hex Head Bolt M6 Allen Wrench M6 Washer Qty: 4pcs M6x35mm Qty: 1pc Qty: 4pcs Carefully place the Table top and back panel (A) upside down on a non-abrasive surface. -
Page 7: Step 2
Step 2 Front woven panel Allen/Hex Head Bolt M6 Allen Wrench M6 Washer Qty: 1pc Qty: 4pcs M6x35mm Qty: 1pc Qty: 4pcs Assemble the Front woven panel (D) to side woven panel with M6 bolts (H) and M6 Washer (I) by using M6 Allen Wrench (J). Do not tighten the bolts until assembling is completed. -
Page 8: Step 3
Step 3 Bottom panel Allen/Hex Head Bolt M6 Allen Wrench M6 Washer Qty: 1pc Qty: 6pcs M6x20mm Qty: 1pc Qty: 6pcs Assemble the Bottom panel (E) to Front woven panel (D) and side woven panel (B&C) with M6 bolts (G) and M6 Washer (I) by using M6 Allen Wrench (J). Tighten all the bolts with M6 Allen Wrench(J). - Page 9 Step 4 M6 Hex Wrench Air pump Qty: 2pcs Qty: 1pc Carefully turn the Deck box over. Assemble the Air pump (F) to side woven panel and table top by using M6 Hex Wrench (K). Tighten all the bolts with M6 Hex Wrench(K). The Deck box is ready for your enjoyment.
- Page 10 Furniture Cover Component Description Quantity Component Description Quantity Deck box Furniture Cover for Deck For maximum protection, use Heavy Duty Furniture Cover (N). Fasten adjustable cord lock to secure the cover from wind and snug fit. Need Assistance? Visit us at: samsclub.com/membersmarkhelp 10 | P a g e...
-
Page 11: Warranty Information
Warranty Information This product component has a 5 year guarantee against defects in material and/or workmanship. If you have any questions regarding the warranty or spare / replacement parts, please call our toll-free number customerservice@coronadocasuals.com 1-888-691-2824 or email us at NOTE: Please consider recycling all applicable packaging material.
