Assembly Instructions & User's Manual
For
Member's Mark

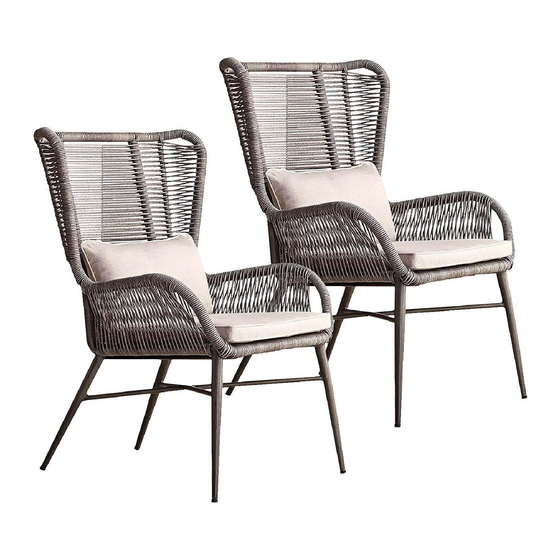

Fiji 2pk chair
Item Number: xxxxxxxx
Model Number: GC-11559A-2PK
Customer Assistance
: 1-800-691-2824
(spare/replacement parts)
or Email:
customerservice@coronadocasuals.com
THIS ASSEMBLY MANUAL CONTAINS INPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
1 |
P a g e
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Member's Mark Fiji GC-11559A-2PK
Summary of Contents for Member's Mark Fiji GC-11559A-2PK
- Page 1 Assembly Instructions & User’s Manual Member’s Mark Fiji 2pk chair Item Number: xxxxxxxx Model Number: GC-11559A-2PK Customer Assistance : 1-800-691-2824 (spare/replacement parts) or Email: customerservice@coronadocasuals.com THIS ASSEMBLY MANUAL CONTAINS INPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. P a g e...
- Page 2 Table of Contents Quality Statement ............................ 3 Important Safety Information ....................... 3 Before Assembly ............................. 3 Care & Use ..............................3 Swivel Rocker Chair Package Contents ........................... 4 Product Information ..........................4 Components ............................. 5 Hardware ..............................5 Tools ................................5 Step 1 ................................
- Page 3 Quality Statement Important Safety Information • Please read all instructions carefully before assembling this product. • Where applicable, and for your safety, assembly by an adult is strongly recommended. • Use only vendor-supplied hardware to assemble this item. Using unauthorized hardware could jeopardize the structural integrity of the item.
- Page 4 Package Contents Component Description Quantity Component Description Quantity Chair frame Allen/Hex Head Bolt M6x30mm Chair base M6 Washer Product Information Product Dimensions ： Chair: 27.75” x 30” x 38.75” (70.5cm x 76.2cm x 98.43cm) Product Weight Capacity Chair: Supports up to 300 lbs. (136 kg) Need Assistance? Visit us at: samsclub.com/membersmarkhelp P a g e...
- Page 5 Components Chair frame Chair base Seat cushion Lumbar Qty: 1pc Qty: 1pc Qty: 1pc Qty: 1pc Hardware Allen/Hex Head M6 Washer Bolt M6x30mm Qty: 4pcs Qty: 4pcs Tools M6 Allen Wrench Qty: 1pc Need Assistance? Visit us at: samsclub.com/membersmarkhelp P a g e...
- Page 6 Step 1 Chair frame Chair base Seat cushion Lumbar Qty: 1pc Qty: 1pc Qty: 1pc Qty: Allen/Hex Head Bolt M6 Washer M6 Allen Wrench M6x30mm Qty: 4pcs Qty: 1pc Qty: 4pcs Carefully place chair frame(A) upside down a soft, flat and non-abrasive surface. Attach the base (B) to chair frame (A) with M6 bolts(E) and M6 Washer(F) by using M6 Allen Wrench(J).
- Page 7 Step 2 Carefully turn the chair over. Place the seat cushions (C) and Lumbar (D) on the chair. The chair is ready for your enjoyment. If the chair is uneven, you can adjust the feet to make it even. Need Assistance? Visit us at: samsclub.com/membersmarkhelp P a g e...
- Page 8 Warranty Information This product component has a 5 year guarantee against defects in material and/or workmanship. If you have any questions regarding the warranty or spare / replacement parts, please call our toll-free number customerservice@coronadocasuals.com 1-800-691-2824 or email us at NOTE: Please consider recycling all applicable packaging material.
