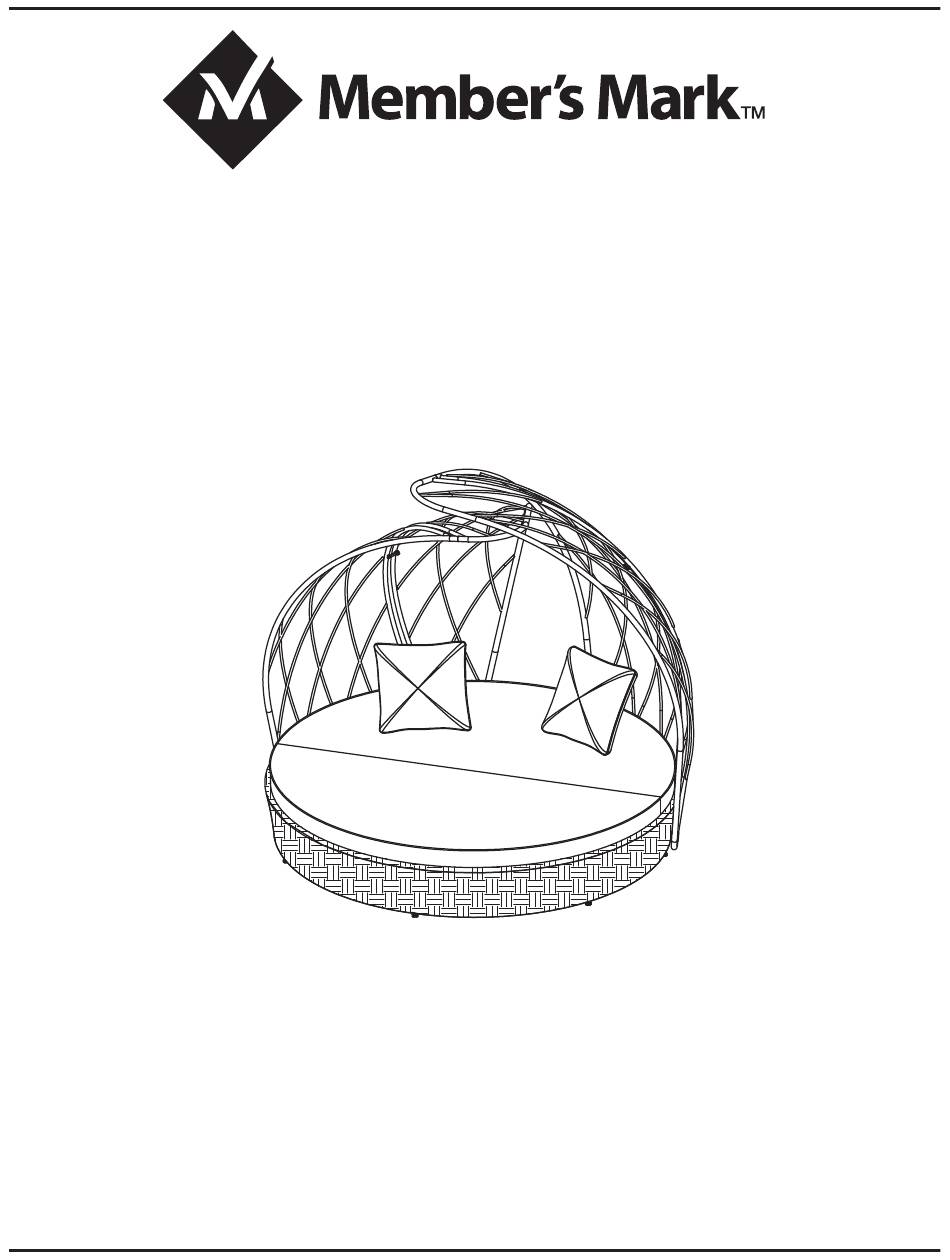

- Page 1 Assembly Manual Cabana day lounger with adjustable back Model Number: GL-11004-ARP THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
-
Page 2: Important Safety Information
Important Safety Information Please read all instructions carefully before assembling this furniture. For your safety, assembly by two or more adults is strongly recommended. Use only vendor-supplied hardware to assemble this item. Using unauthorized hardware could jeopardize the structural integrity of the item. Hardware may loosen overtime. - Page 3 Components F..Back panel 4..1 A..Front seat panel..1 G..Seat cushion..1 B..Back seat panel..1 H..Back connector panel..2 C..Back panel 1..1 I ..Seat connector part..2 D..Back panel 2..1 J..Toss pillow..2 E..Back panel 3...1 Hardware Allen/Hex Head Bolt M6 Washer Allen/Hex Head Bolt M6x20mm Qty: 12 M6x60mm Qty: 4...
- Page 4 Step 1 Carefully place the Back panel 1(C) and Back panel 2(D) on a non-abrasive surface. Attached the top of Back panel 1(C) to top of Back panel 2(D). Step 2 Attached the bottom of Back panel 1(C) to bottom of Back panel 2(D). Need Assistance? Visit us at: samsclub.com/membersmarkhelp...
- Page 5 Step 3 Allen/Hex Head Bolt Allen Wrench M6 Washer Qty: M6x20mm Qty: 2 Qty: 2 Attached the Back panel 1(C) to Back panel 2(D) using bolts (L) and washers (M) with Allen Wrench (N). Do not tighten the bolts until assembling is completed. Need Assistance? Visit us at: samsclub.com/membersmarkhelp...
- Page 6 Step 4 Carefully place the Back panel 3 (E) and Back panel 4(F) on a non-abrasive surface. Attached the top of Back panel 3(E) to top of Back panel 4(F). Step 5 Attached the bottom of Back panel 3(E) to bottom of Back panel 4(F). Need Assistance? Visit us at: samsclub.com/membersmarkhelp...
- Page 7 Step 6 Allen Wrench Allen/Hex Head Bolt M6 Washer M6x20mm Qty: Qty: 2 Qty: 2 Attached the Back panel 3(E) to Back panel 4(F) using bolts (L) and washers (M) with Allen Wrench (N). Do not tighten the bolts until assembling is completed. Need Assistance? Visit us at: samsclub.com/membersmarkhelp...
- Page 8 Step 7 Allen/Hex Head Bolt Allen Wrench M6 Washer M6x60mm Qty: Qty: 4 Qty: 4 Attached the Back panel 3 (E) and Back panel 4 (F) to Back seat panel (B) using bolts (K) and washers (M) with Allen Wrench (N). Do not tighten the bolts until assembling is completed.
- Page 9 Step 8 Allen/Hex Head Bolt Allen Wrench M6 Washer M6x60mm Qty: Qty: 4 Qty: 4 Attached the Back panel 1 (C) and Back panel 2 (D) to Back seat panel (B) using bolts (K) and washers (M) with Allen Wrench (N). Tighten all bolts (K and L) with Allen wrench (N).
- Page 10 Step 9 Attached the Front seat panel (C) to Back seat panel (D) using Seat connector part (I). Need Assistance? Visit us at: samsclub.com/membersmarkhelp...
- Page 11 Step 10 Place the seat cushions (G) and toss pillow (J) on the day lounger. The day lounger is ready for your enjoyment. Need Assistance? Visit us at: samsclub.com/membersmarkhelp...
