Assembly Instructions & User's Manual For

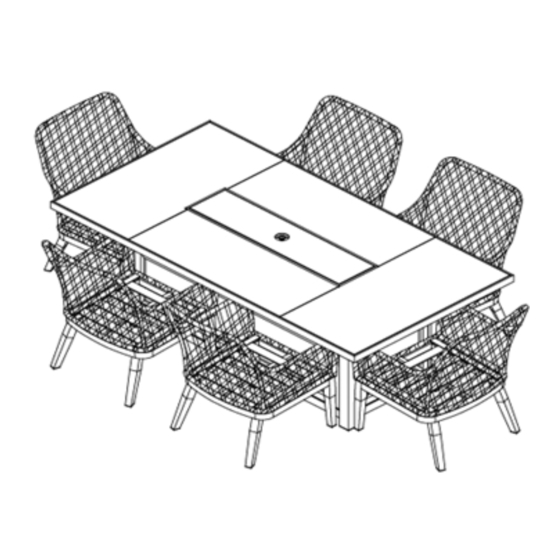

Member's Mark Bridgewater 7pc Dining Set With Fire Table
Item Number: 990018894
Model Number: GC-11634B-7PC
1-888-691-2824
Customer Assistance (spare/replacement parts):
or Email:
customerservice@coronadocasuals.com
DANGER: FIRE OR EXPLOSION HAZARA
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, leave the area immediately.
4. After leaving the area, call your gas supplier or fire department.
Failure to follow these instructions could result in fire or explosion, which could cause property
damage, personal injury, or death.
WARNING：
Do not store or use gasoline or other flammable liquids vapors and liquids, in the vicinity of this
or any other appliance.
An LP cylinder not connected for use shall not be stored in the vicinity of this or any other
appliance.
1 |
P a g e

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GC-11634B-7PC and is the answer not in the manual?

Questions and answers

Related Manuals for Member's Mark GC-11634B-7PC

Summary of Contents for Member's Mark GC-11634B-7PC

  • Page 1 Assembly Instructions & User’s Manual For Member’s Mark Bridgewater 7pc Dining Set With Fire Table Item Number: 990018894 Model Number: GC-11634B-7PC 1-888-691-2824 Customer Assistance (spare/replacement parts): or Email: customerservice@coronadocasuals.com DANGER: FIRE OR EXPLOSION HAZARA If you smell gas: 1. Shut off gas to the appliance.
  • Page 2 WARNING：For outdoor Use only Installation and service must be performed by a qualified installer, service agency, or the gas supplier. WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life. INSTALLER: Leave this manual with the appliance.

  • Page 3: Table Of Contents

    Table of Contents Quality Statement ............................3 Important Safety Information ........................3 Before Assembly ..........................3 Care & Use ............................3 Safety Warnings ..........................5-6 Package Contents ..........................7 Product Information ...........................7 Components ............................8 Hardware ............................8 Tools ..............................8 Step 1 ..............................9 Step 2 ..............................10 Step 3 ..............................10 Loading the propane ........................11 Loading the battery.

  • Page 4: Quality Statement

    Quality Statement Important Safety Information  Please read all instructions carefully before assembling this product.  Where applicable, and for your safety, assembly by an adult is strongly recommended.  Use only vendor-supplied hardware to assemble this item. Using unauthorized hardware could jeopardize the structural integrity of the item.

  • Page 5: Safety Warnings

    Safety Warnings Need Assistance? Visit us at: samsclub.com/membersmarkhelp P a g e...
  • Page 6 Safety Warnings (continued) Need Assistance? Visit us at: samsclub.com/membersmarkhelp P a g e...

  • Page 7: Package Contents

    Package Contents Component Description Quantity Component Description Quantity Table top M6 Washer Table base Allen Wrench Burner Cover 8kg Glass beads Allen/Hex Bolt M6x25mm Product Information Product Dimensions： Dining Chair: 24.4"x27.5"x34.4" (62cm x 69.85cm x 87.4cm) Fire pit Table: 79.75"x41.75"x29.1" (202.6cm x 106cm x 73.9cm) Product Weight Capacity Dining Chair: Supports up to 300 lbs.

  • Page 8: Components

    Components Table top Table base Burner Cover 8kg Glass beads Qty: 1pc Qty: 1pc Qty: 1pc Qty: 1pc Hardware Allen/Hex Bolt M6 Washer M6x25mm Qty: 4pcs Qty: 4pcs Tools M6 Allen Wrench Qty: 1pc Need Assistance? Visit us at: samsclub.com/membersmarkhelp P a g e...

  • Page 9: Step 1

    Step 1 Table top Allen/Hex Bolt M6x25mm Table base Qty: 1pc Qty: 4pcs Qty: 1pc M6 Washer M6 Allen Wrench Qty: 4pcs Qty: 1pc Carefully place table top (A) upside down a soft, flat and non-abrasive surface. Attach the table base (B) to table top (A) with bolts(D) and Washer(E) by using M6 Allen Wrench(F).

  • Page 10: Step 2

    Step 2 Carefully turn the Firepit table over. Place the glass beads (G) around the burner. Step 3 Place Burner Cover (C) onto the fire bowl. NOTE: Glass beads is not included. When the fire pit is not in use and has cooled COMPLETELY, cover it with the Burner Cover.

  • Page 11: Loading The Propane

    Loading the propane Open the door Carefully place the cylinder into the tank rack. Tighten the bolt to hold the cylinder in Place. Loading the battery Unscrew the battery box, insert the negative electrode side of the battery into the bottom of the battery box Note: Please follow the above instructions to replace the battery when needed.

  • Page 12: Gas Connection

    Gas connection Connect the pressure regulator (4#) to the cylinder by rotating the knob(5#) clockwise until it is fully secured. Make sure there is no leakage or damage. The minimum inlet gas 25PSI supply pressure for the purpose of input adjustment; The maximum inlet gas 250PSI supply pressure.

  • Page 13: Leak Check

    Leak Check NOTE 1. Make sure the gas control knob (2#) is on the “OFF” position. Open access doors. 2. Make sure the gas cylinder is correctly and security connected to the pressure regulator, with a tight fit. 3. Turn on the gas cylinder valve(7#). Apply 50% soap and 50% water solution to the gas hose at connections between the knob(5#) and the gas cylinder.

  • Page 14: Shutting Down The Gas

    SHUTTING DOWN THE GAS 1. Turn the gas control knob (2#) to “OFF” to shut down appliance. 2. Turn the gas cylinder valve (7#) off when the gas appliance will not be in use. Gas Cylinder Required Need Assistance? Visit us at: samsclub.com/membersmarkhelp 14 | P a g e...

  • Page 15: Warning

    Warning For outdoor use only. FUELS USED IN LIQUEFIED PROPANE GAS APPLIANCES, AND THE PRODUCTS OF COMBUSTION OF SUCH FUELS, CAN EXPOSE YOU TO CHEMICALS INCLUDING BENZENE, WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND CAUSE BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM.

  • Page 16: Furniture Cover

    Furniture Cover Component Description Quantity Component Description Quantity Dining chair Furniture Cover for Dining Dining table with fire pit For maximum protection, use Heavy Duty Furniture Cover (J). Fasten adjustable cord lock to secure the cover from wind and snug fit. Need Assistance? Visit us at: samsclub.com/membersmarkhelp 16 | P a g e...

  • Page 17: Warranty Information

    Warranty Information This product component has a 5 year guarantee against defects in material and/or workmanship. If you have any questions regarding the warranty or spare / replacement parts, please call our toll-free number customerservice@coronadocasuals.com 1-888-691-2824 or email us at NOTE: Please consider recycling all applicable packaging material.
