Spectra Logic Spectra 10000 Install Manual page 8

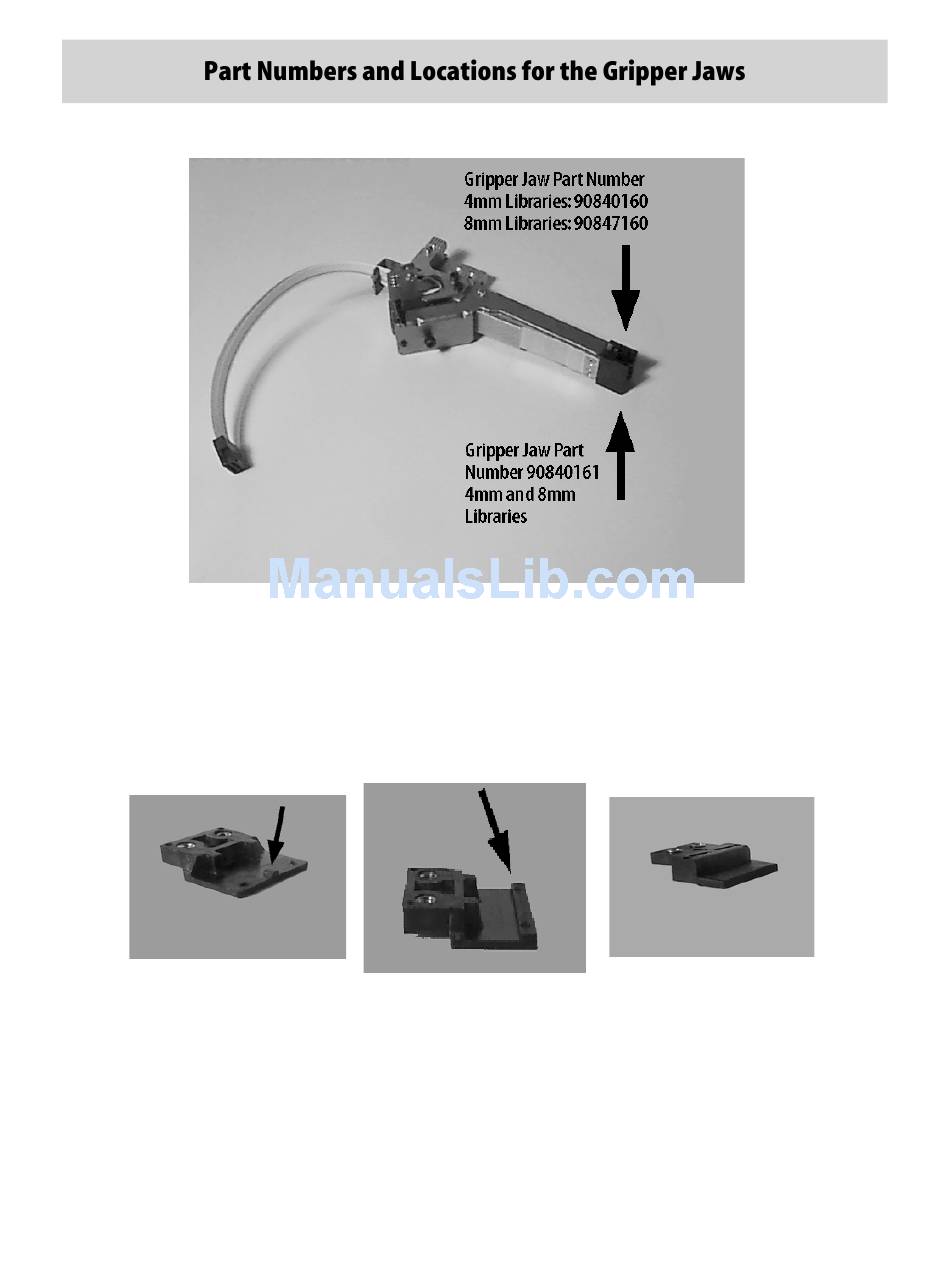

Figure 9: Part numbers and locations for gripper jaws
In Figure 10, the gripper jaw piece has a single small tooth on the inside of the jaw piece. In Figure 11, this
gripper jaw has a single long tooth along the entire edge of the jaw. Figure 12 shows the common gripper jaw
piece used in both 4mm and 8mm libraries.
See Figure 9 for the location of the jaw pieces on the gripper arm.
Figure 10: Gripper jaw piece Figure 11: Gripper jaw piece Figure 12: Gripper jaw piece
for 8mm libraries. for 4mm libraries. for all libraries.
Part number 90847160 Part number 90840160 Part number 90840161
Page 8 Gripper Jaws Replacement Guide for Spectra Logic Libraries
