1. Loosen or remove the library cover screws on the rear of the library. You will need either the #1
phillips screwdriver or the flat blade screwdriver. On libraries with phillips screws, the screws are the
captive type and cannot be removed from the cover. Loosen the screws sufficiently to fully disengage
the screws from the library frame. Flat blade screws must be completely removed from the library.
If the library is a horizontal unit, three screws hold the cover in place. If the library is a vertical unit,
four screws hold the cover in place. Figure 3 shows the location of the cover screws on a horizontal
library.

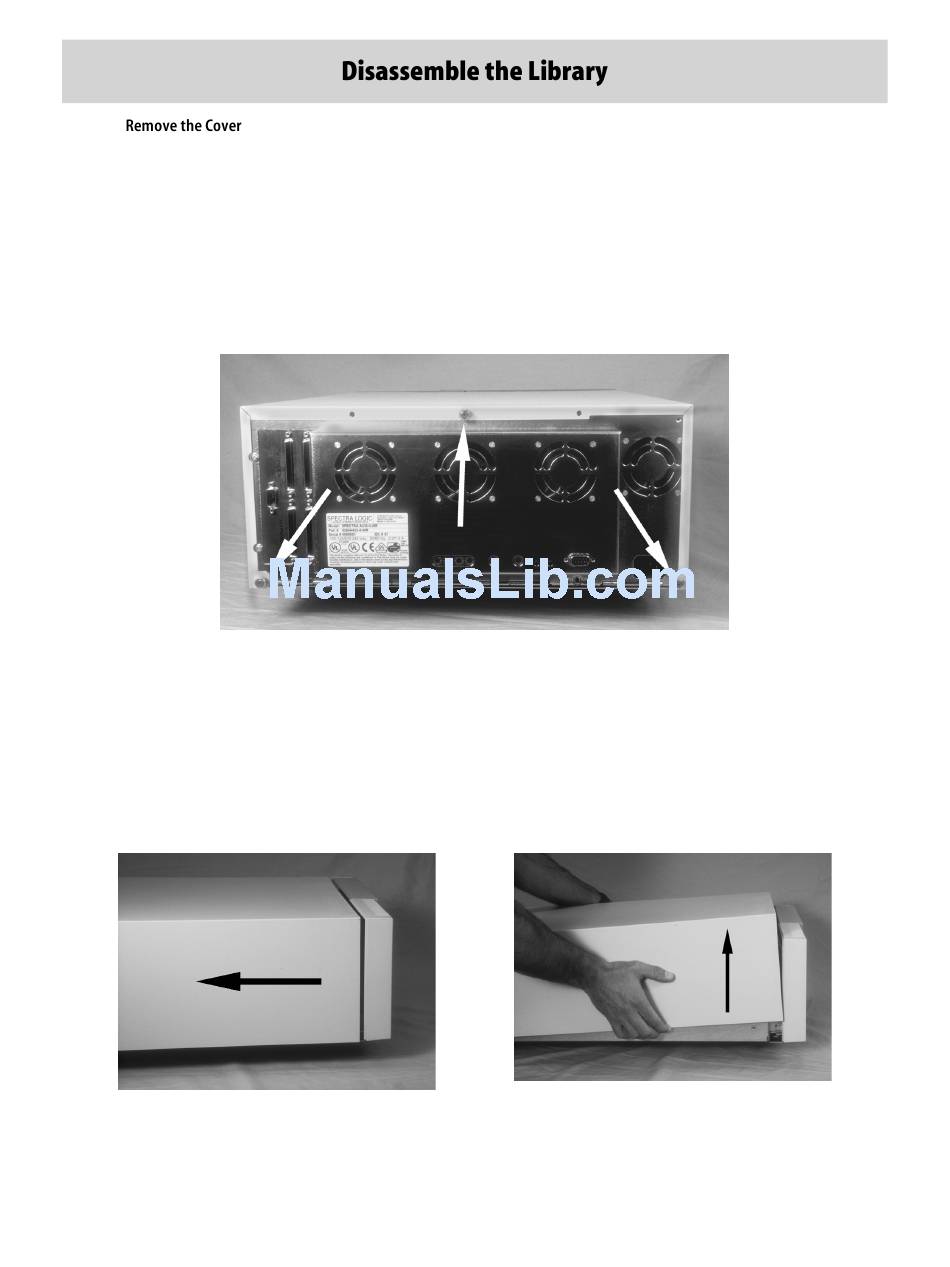

Figure 3: Library cover screws on a horizontal library
2. Slide the cover toward the rear of the library about
holding the cover to the front panel.
3. Remove the cover by lifting it straight up, Figure 5.
4. Set the cover off to the side and out of the way.
Figure 4: Slide cover back
Gripper Jaws Replacement Guide for Spectra Logic Libraries
½
inch, Figure 4. This will release the side clips
Figure 5: Lift cover
