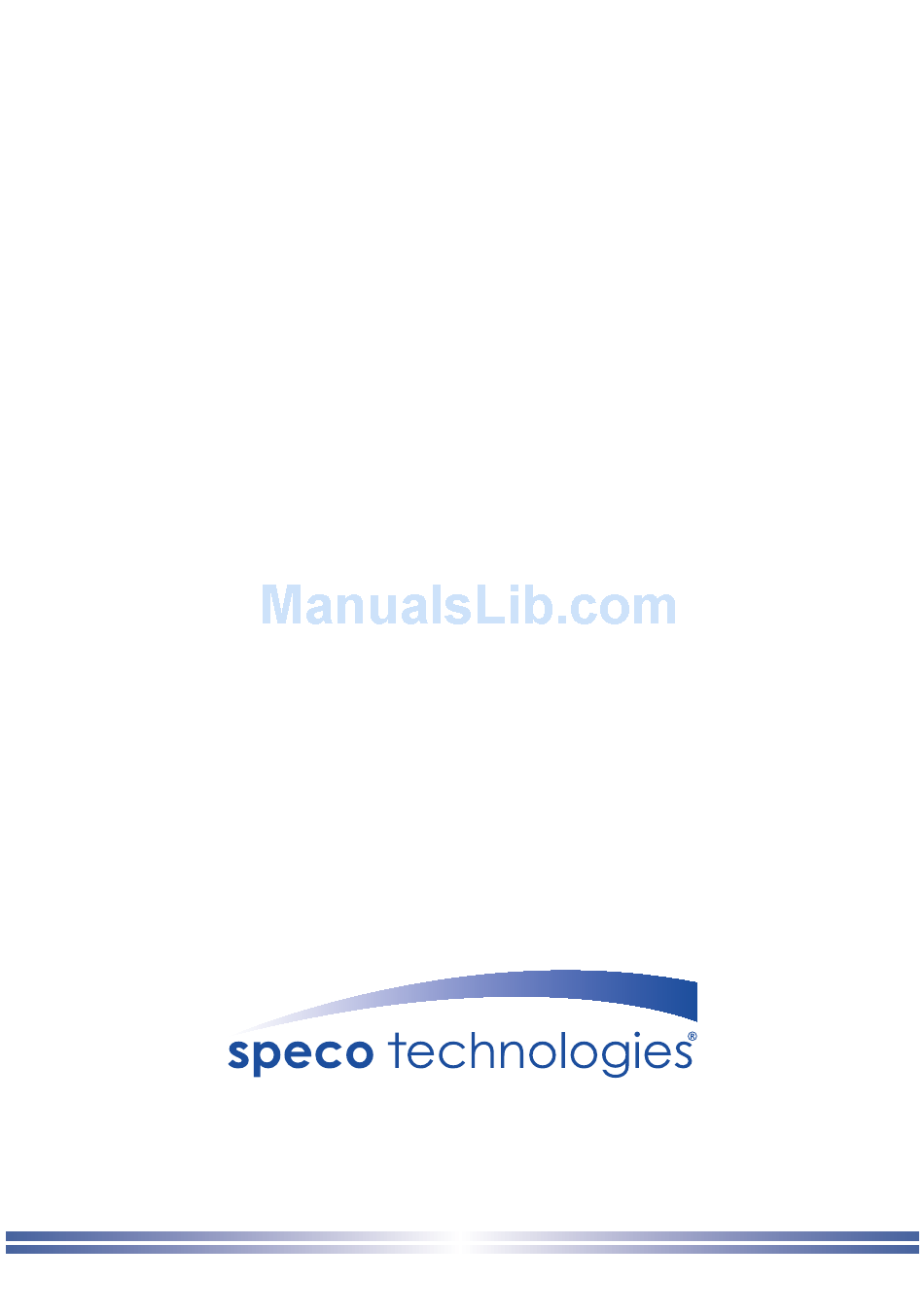

INSTRUCTION
MANUAL
Speco 3MP-TVI IR Series
Speco Technologies is constantly developing product improvements.
We reserve the right to modify product design and specifications without notice and without incurring any obligation.
HT7043T
(IR Bullet Camera)
HT5943T
(IR Dome Camera)
Rev. 1/13/2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HT5943T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Speco HT5943T

  • Page 1 INSTRUCTION MANUAL Speco 3MP-TVI IR Series HT7043T (IR Bullet Camera) HT5943T (IR Dome Camera) Speco Technologies is constantly developing product improvements. We reserve the right to modify product design and specifications without notice and without incurring any obligation. Rev. 1/13/2017...
  • Page 2: Table Of Contents

    Contents Contents ............1 ◑ Precautions ..........2-3 ◑ Safety Instructions ........4 ◑ Package Contents ........5 ◑ Camera Installation ........6-9 ◑ Lens Adjustment ......... 10-11 ◑ Specifications ..........12-13 ◑ Camera Dimension ........14 ◑ Features ............15 ◑...
  • Page 3: Precautions

    Precautions Do not install the camera in Do not install the camera under Do not touch the front lens of the extreme temperature conditions. unstable lighting conditions. camera. Only use the camera under conditions Severe lighting change or flicker can This is one of the most important parts of where temperatures are between cause the camera to work improperly.
  • Page 5: Safety Instructions

    Safety Instructions Precautions for use ◑ This camera should be installed by qualified personnel only ◑ There are no user serviceable parts inside ◑ Do not disassemble this camera other than to make initial adjustments ◑ Use a UL approved regulated 24 volt AC or 12 volt DC power supply ◑...
  • Page 6: Package Contents

    • 1 Bracket Base • 1 Wrench • Set Screw - 4 Tapping Screws 4x25 - 4 Hexagon Socket Screws M5x10 2) HT5943T • 1 Video Test Connector, Power Jack • 1 Chameleon Cover • 1 Wrench • Set Screw...
  • Page 7: Camera Installation

    CAMERA INSTALLATION CONNECT POWER CABLE 1. WHEN USING 12 VOLTS DC (constant voltage 500mA) P o w e r In p u t :R E D C e n te r : (+) D C 12V P owe r S upply 2.
  • Page 8 CAMERA INSTALLATION Compatibility 1) HT7043T CVCJBB INTJBS INTCM 2) HT5943T CVCJBD → Adaptor plate(59PLATE) with rubber...
  • Page 9 CAUTION : The installation instructions in this manual are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so. CAMERA INSTALLATION 1.
  • Page 10 CAMERA INSTALLATION 2. HT5943T VANDAL DOME BASE SCREW TS T1, 3.5X20, PH, SUS, 3EA VANDAL DOME BODY BODY OUTER COVER SPECO...
  • Page 11: Lens Adjustment

    LENS ADJUSTMENT 1. HT7043T Open the cap Focus adjustment Lock screw Zoom adjustment...
  • Page 12 LENS ADJUSTMENT HT5943T Open the cap Focus adjustment Zoom adjustment...
  • Page 13: Specifications

    Speco 3MP-TVI IR Series DC Auto Iris Varifocal Lens 2.8-12mm ■ HT7043T (2.8-12mm) SPECIFICATIONS HT7043T MODEL Image Sensor 1/2.8" SONY 3Mega Exmor CMOS Sensor Effective pixels 2065(H) X 1553(V), 3.21M Pixels Total pixels 2065(H) X 1565(V), 3.23M Pixels Resolution 2048X1536(1536p@18.75f)
  • Page 14: Specifications

    Speco 3MP-TVI IR Series DC Auto Iris Varifocal Lens 2.8-12mm ■ HT5943T (2.8-12mm) SPECIFICATIONS HT5943T MODEL Image Sensor 1/2.8" SONY 3Mega Exmor CMOS Sensor Effective pixels 2065(H) X 1553(V), 3.21M Pixels Total pixels 2065(H) X 1565(V), 3.23M Pixels Resolution 2048X1536(1536p@18.75f)
  • Page 15: Camera Dimension

    CAMERA DIMENSION 1) HT7043T 8.27” 3.94” 4.80” 3.38” 2.95” 2) HT5943T 3.23”...
  • Page 16: Features

    Intelligent Function ● An extra ordinary technology enables Speco Technologies TVI become an ultimate and of solution by providing intelligent features based on motion detection. It strengthens crime prevention and detection.
  • Page 17: Osd Menu Details

    H-POS 0 ~ 18 4.BACKLIGHT V-POS 0 ~ 17 H-SIZE 0 ~ 18 V-SIZE 0 ~ 17 RETURN 5.SPECO DNR OFF / LOW / MIDDLE / HIGH SMART IR 0~20 AGC THRES 0~20 AGC MARGIN 0~20 AUTO DELAY LOW / MIDDLE / HIGH RETURN 6.DAY&NIGHT...
  • Page 18 How to Set Up the camera menu ● Setup Menu MENU ZONE NUM 0~15 ZONE DISP ON/OFF H-POS 0~64 V-POS 0~46 7.IMAGE PRIVACY H-SIZE 0~65 V-SIZE 0~47 Y LEVEL 0~20 CR LEVEL 0~20 CB LEVEL 0~20 RETURN RETURN SENSITIVITY 0 ~ 20 DC MODE 1 ~ 6 WINDOW TONE...
  • Page 19: Menu Set Up

    * The Set Up menu will be displayed on the monitor. MENU 1.LENS DCAUTO 2.EXPOSURE 3.WHITE BAL AUTO 4.BACKLIGHT 5.SPECO DNR MIDDLE 6.DAY&NIGHT EXTERN 7.IMAGE 8.MOTION 9.SYSTEM 10.EXIT 2. Move and select the required function using the Up and Down button.
  • Page 20 1. Move the triangular indicator to LENS using the Up and Down buttons on the Set Up menu screen. 2. Select the desired lens type by pressing the Left of Right button. MENU 1.LENS DCAUTO 2.EXPOSURE 3.WHITE BAL AUTO 4.BACKLIGHT 5.SPECO DNR MIDDLE 6.DAY&NIGHT EXTERN 7.IMAGE 8.MOTION 9.SYSTEM 10.EXIT NOTE...
  • Page 21 EXPOSURE 1. On the Set Up menu, Select EXPOSURE by using the Up or Down button. MENU 1.LENS 2.EXPOSURE 3.WHITE BAL AUTO 4.BACKLIGHT 5.SPECO DNR MIDDLE 6.DAY&NIGHT EXTERN 7.IMAGE 8.MOTION 9.SYSTEM 10.EXIT 2. Select the desired shutter mode by pressing the Left or Right button.
  • Page 22: White Balance

    1. Move the triangular indicator to WHITE BAL on the SETUP menu screen using the Up and Down button. 2. Select the desired mode by using the left or Right button. MENU 1.LENS 2.EXPOSURE 3.WHITE BAL AUTO 4.BACKLIGHT 5.SPECO DNR MIDDLE 6.DAY&NIGHT EXTERN 7.IMAGE 8.MOTION 9.SYSTEM 10.EXIT ◆...
  • Page 23 1. Move the triangular indicator to BACKLIGHT on the SETUP menu screen using the Up and Down button. 2. Select the desired mode by using the left or Right button. MENU 1.LENS 2.EXPOSURE 3.WHITE BAL AUTO 4.BACKLIGHT 5.SPECO DNR MIDDLE 6.DAY&NIGHT EXTERN 7.IMAGE 8.MOTION 9.SYSTEM 10.EXIT ◆...
  • Page 24 LEVEL 20 IIIIIIIIIIIIIIIIIII| MODE ALL DAY RETURN ◆ BLC : This function is used to counterbalance the screen image by increasing the brightness so that a subject which appears dark due to a strong backlight can be displayed in more detail. If you select BLC, a submenu appears where you can make finer adjustments.
  • Page 25 SPECO DNR This function is used to improve the picture quality by filtering the noise which is generated under low brightness conditions. You can set different levels here. 1. Move the triangular indicator to DNR by useing the Up and Down button.
  • Page 26 ◆ AUTO : Automatically, It shifts into the color mode in the bright environment and the B/W mode in the low light condition. It can adjust the delay time, starting brightness and end brightness according to the ambient conditions by pressing the Set button. DAY&NIGHT SMART-IR 20 IIIIIIIIIIIIIIIIIII|...
  • Page 27 IMAGE When selecting, the following submenu will appear. MENU 1.LENS 2.EXPOSURE 3.WHITE BAL AUTO 4.BACKLIGHT 5.SPECO DNR MIDDLE 6.DAY&NIGHT EXTERN 7.IMAGE 8.MOTION 9.SYSTEM 10.EXIT Here you can optimize the image quality by adjusting different options. IMAGE SHARPNESS IIIIIIIIIIIIIIIIIII| GAMMA 0.65...
  • Page 28 This function is used to detect moving objects in the monitored area. When choosing ON, the following submenu will appear where you can adjust the settings for the MOTION function. MENU 1.LENS 2.EXPOSURE 3.WHITE BAL AUTO 4.BACKLIGHT 5.SPECO DNR MIDDLE 6.DAY&NIGHT EXTERN 7.IMAGE 8.MOTION 9.SYSTEM 10.EXIT...
  • Page 29 2. Select one of the mode using the Up and Down button. SYSTEM MENU 1.LENS COM. CAM ID 2.EXPOSURE IMAGE RANGE FULL 3.WHITE BAL AUTO COLOR SPACE 4.BACKLIGHT VIDEO FREQ NTSC 5.SPECO DNR MIDDLE CVBS 6.DAY&NIGHT EXTERN LANGUAGE 7.IMAGE RESET 8.MOTION RETURN 9.SYSTEM 10.EXIT...
  • Page 30 ◆ COM. : This menu id used for RS-485 communication. Users are able to select 'CAM ID(0~255)' and 'BAUDRATE(2400/4800/9600/57600/115200). ◆ IMAGE RANGE [FULL/COMP/USER] : Adjust the rate of YC signal to 100%(FULL), 75%(COMP) or 100%~75%(USER). ◆ COLOR SPACE [YUV/SD-CBCR/HD-CBCR] : Select different color settings for a warmer or a colder image. ◆...
  • Page 31: Trouble Shooting

    Trouble Shooting ● PROBLEM POSSIBLE CAUSE FCheck the power cable, power supply output and video Northing appears on connection between the camera and monitor. the screen. FAre the camera lens or the lens glass dirty? Clean the lens / glass with a soft clean cloth. The image on the FAdjust the monitor controls, as required.
  • Page 33 uMEMO...
  • Page 34 uMEMO...
  • Page 35 uMEMO...
  • Page 36 200 New Highway Amityville, NY 11701 631-957-8700 1 800 645 5516 www.specotech.com...
