Speco HT7246IHR Instruction Manual

650line intensifier3 series
Hide thumbs Also See for HT7246IHR:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual , User Manual
INSTRUCTION
MANUAL
650Line Intensifier3™ Series

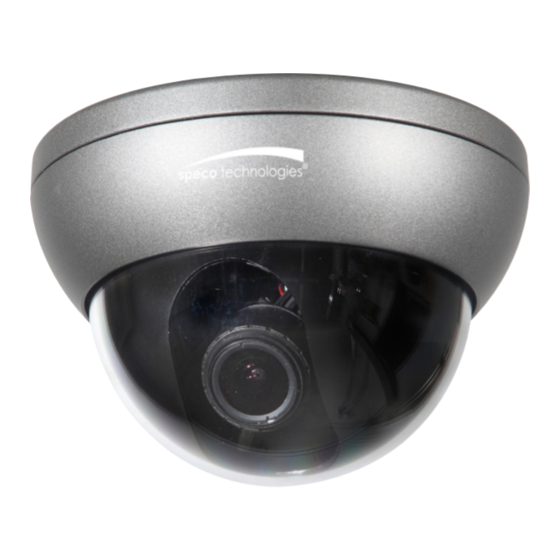

(Miniature Weatherproof Dome Camera with Chameleon™ Cover)
Speco Technologies is constantly developing product improvements.
We reserve the right to modify product design and specifications without notice and without incurring any obligation.
HT7246IHR / HT7247IHR / HT7250IHR
(Weatherproof Dome Camera with Chameleon™ Cover)
HTINTB8 / HTINTB9 / HTINTB10
(Weatherproof Bullet Camera with mount plate)
HTINTD8 / HTINTD9 / HTINTD10
(Weatherproof Dome Camera)
HT647HRTP
CVC6246IHR
(Indoor Wall & Ceiling Mount Dome Camera)
(Traditional Box type Camera)
HTINTT5
Rev. 6/9/10

Advertisement

Table of Contents
loading

Related Manuals for Speco HT7246IHR

Summary of Contents for Speco HT7246IHR

  • Page 1 (Miniature Weatherproof Dome Camera with Chameleon™ Cover) CVC6246IHR (Indoor Wall & Ceiling Mount Dome Camera) HTINTT5 (Traditional Box type Camera) Speco Technologies is constantly developing product improvements. We reserve the right to modify product design and specifications without notice and without incurring any obligation. Rev. 6/9/10...
  • Page 2 CAUTION RISK OF ELECTRIC SHOCK CAUTION DO NOT OPEN CAUTION RISK OF ELECTRIC SHOCK CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK RISK OF ELECTRIC SHOCK DO NOT OPEN DO NOT OPEN DO NOT REMOVE COVER(OR BACK). CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK NO USER-SERVICEABLE PARTS INSIDE.
  • Page 3 Precautions Do not install the camera in Do not install the camera under Do not touch the front lens of the extreme temperature conditions. unstable lighting conditions. camera. Only use the camera under conditions Severe lighting change or flicker can This is one of the most important parts of the where temperatures are between cause the camera to work improperly.

  • Page 4: Specifications

    Auto / Off (Selectable x2 ~ x512) Motion Detection On / Off (8 Programmable Zones) Privacy Masking On / Off (12 Programmable Zones) SPECO DNR On / Off (Level adjustable) Digital Zoom On / Off (x1 ~ x16) DIS (Digital Image Stabilization)
  • Page 5 Auto / Off (Selectable x2 ~ x512) Motion Detection On / Off (8 Programmable Zones) Privacy Masking On / Off (12 Programmable Zones) SPECO DNR On / Off (Level adjustable) Digital Zoom On / Off (x1 ~ x16) DIS (Digital Image Stabilization)
  • Page 6 Auto / Off (Selectable x2 ~ x512) Motion Detection On / Off (8 Programmable Zones) Privacy Masking On / Off (12 Programmable Zones) SPECO DNR On / Off (Level adjustable) Digital Zoom On / Off (x1 ~ x16) DIS (Digital Image Stabilization)
  • Page 7 Auto / Off (Selectable x2 ~ x512) Motion Detection On / Off (8 Programmable Zones) Privacy Masking On / Off (12 Programmable Zones) SPECO DNR On / Off (Level adjustable) Digital Zoom On / Off (x1 ~ x16) DIS (Digital Image Stabilization)
  • Page 8 Auto / Off (Selectable x2 ~ x512) Motion Detection On / Off (8 Programmable Zones) Privacy Masking On / Off (12 Programmable Zones) SPECO DNR On / Off (Level adjustable) Digital Zoom On / Off (x1 ~ x16) DIS (Digital Image Stabilization)
  • Page 9 Auto / Off (Selectable x2 ~ x512) Motion Detection On / Off (8 Programmable Zones) Privacy Masking On / Off (12 Programmable Zones) SPECO DNR On / Off (Level adjustable) Digital Zoom On / Off (x1 ~ x16) DIS (Digital Image Stabilization)
  • Page 10 CAMERA INSTALLATION...

  • Page 11: Table Of Contents

    ◑ Camera Menu Set Up 1. Preset Mode 2. Menu Set Up 3. Lens Setting 4. Exposure Setting 5. White Balance Setting 6. WDR Setting 7. Backlight Setting 8. SPECO DNR Setting 9. Day/Night Setting 10. Special Setting 11. RETURN Setting ◑ Trouble Shooting...

  • Page 12: Safety Instructions

    Safety Instructions Precautions for use ◑ This camera should be installed by qualified personnel only ◑ There are no user serviceable parts inside ◑ Do not disassemble this camera other than to make initial adjustments ◑ Use a UL approved regulated 24 volt AC or 12 volt DC power supply ◑...

  • Page 13: Features

    High quality Pictures to be captured in very low light condition. More Powerful WDR in strong back lighting. Your camera allows you to get a clear image. SPECO DNR The Intensifier camera has a DSP chip that can remove image noise efficiently showing clean images in low light conditions.

  • Page 14: Features

    FEATURES Motion Detection with Alarm Output Built in motion detector with adjustable areas of coverage will Send a signal to an external alarm device when motion is detected. PRIVACY MASK It also has the ability to mask up to 8 areas of the picture where Viewing is not desired.

  • Page 15: Camera Menu Set Up

    Preset Mode ● SPECO TECH 1.PRESET MODE INDOOR 2.MAIN SETUP 3.EXIT RESET 1. Preset : INDOOR / OUTDOOR / LOW LIGHT / HALLWAY / LOBBY / ELEVATOR. - Used for a quick and easy setup for the installation environment. Menu Setup ●...

  • Page 16: Exposure Setting

    MAIN SETUP 1.LENS 2.EXPOSURE 3.WHITE BAL 3. THE Lens mode has sub menu items as listed below. - BRIGHTNESS : Adjusts the video brightness. - FOCUS ADJ : To adjust the DC lens focus correctly, you must activate the Focus Settings mode under each lens menu. Activate the Focus Settings mode, adjust the lens focus, and then deactivate the settings mode.

  • Page 17: White Balance Setting

    ☞ NOTE ■ When the SHUTTER is set to MANUAL or A.FLK mode, INTENSIFY will be disabled. ◆ AGC(AUTO GAIN CONTROL) : The higher the gain level, the brighter the screen - but the higher the noise. * OFF : Deactivates the AGC function. * LOW : Allows automatic gain control from 5.3dB to 32dB.

  • Page 18: Wdr Setting

    ※ Select one of the following 5 modes, as appropriate for your purpose. ◆ ATW : Select this when the color temperature is between 1,700˚K and 11,000˚K. ◆ OUTDOOR : Select this when the color temperature is between 1,700˚K and 11,000˚K. (sodium light inclusion) ◆...

  • Page 19: Backlight Setting

    Function Setup switch so that the arrow indicates 'BACKLIGHT'. MAIN SETUP 1.LENS 2.EXPOSURE 3.WHITE BAL 4.WDR 5.BACKLIGHT 6.SPECO DNR 7.DAY/NIGHT AUTO 8.SPECIAL 9.RETURN SAVE 2. Select a desired mode using the Function Setup switch. ◆ BLC : Enables a user to directly select a desired area from a picture, and to view the area more clearly.

  • Page 20: Speco Dnr Setting

    SPECO DNR Setting ● This function reduces the background noise in a low luminance environment. 1. When the SETUP menu screen is displayed, select 'SPECO DNR' by using the Function Setup switch so that the arrow indicates 'SPECO DNR'. MAIN SETUP 1.LENS...

  • Page 21: Day/Night Setting

    ☞ NOTE ■ You cannot set the SPECO DNR to ‘ON’ or ‘OFF’ when the AGC mode of the EXPOSURE menu is ‘OFF’. ■ When adjusting the noise reduction level in the SPECO DNR mode, remember that the higher the level set, the more the noise level will be reduced, as will the brightness of the image.

  • Page 22: Special Setting

    Special Setting ● 1. When the SETUP menu screen is displayed, select 'SPECIAL' by using the Function Setup switch so that the arrow indicates 'SPECIAL'. MAIN SETUP 1.LENS 2.EXPOSURE 3.WHITE BAL 4.WDR 5.BACKLIGHT 6.SPECO DNR 7.DAY/NIGHT AUTO 8.SPECIAL 9.RETURN SAVE...
  • Page 23 2. Select a desired mode using the Function Setup switch. SPECIAL 1.IMAGE ADJ 2.MONITOR 3.CAM TITLE 4.SYNC 5.MOTION DET 6.PRIVACY 7.COMM ADJ 8.LANGUAGE ENGLISH 9.RETURN ◆ IMAGE ADJ. : 1) When the SETUP menu screen is displayed, select 'IMAGE ADJ' by using the Function Setup switch so that the arrow indicates 'IMAGE ADJ'.
  • Page 24 ☞ NOTE ■ When the V-REV or H-REV mode is enabled, the text on the screen does not flip. ■ If you increase the SHARPNESS level too high, the picture may become distorted or noise may appear. ◆ MONITOR : Please change the settings value of video appropriate to your monitor. 1) LCD : Please select this menu item when using a LCD monitor.
  • Page 25 - INT : Internal Synchronization Type - L/L : Power Synchronization Type, Line-lock * Press the Function Setup switch. * You can select a desired phase from 0 to 359 when select 'phase'. ☞ NOTE ■ When using AC power at 60Hz(NTSC), 50Hz(PAL), frequency, you can use the L/L type synchronization.

  • Page 26: Return Setting

    1) When the SPECIAL menu screen is displayed, press the Function Setup switch so that the arrow indicates 'PRIVACY'. 2) Set up the mode using the Function Setup switch. - AREA : You can select up to 12 PRIVACY areas. - MODE : Determines whether to use the area selected in the AREA.

  • Page 27: Trouble Shooting

    Trouble Shooting ● PROBLEM POSSIBLE CAUSE ☞Check the power cable, power supply output and video Northing appears on connection between the camera and monitor. the screen. ☞Are the camera lens or the lens glass dirty? Clean the lens / glass with a soft clean cloth. The image on the ☞Adjust the monitor controls, as required.
  • Page 28 We now accept Visa/MasterCard/AMEX at time of order placement. (See terms of Payment & Credit Terms) For more information contact us at: Speco Technologies 200 New Highway • P.O. Box 726 • Amityville, N.Y. 11701-0726 Tel. 631-957-8700 Outside Metro N.Y. 1-800-645-5516 • Fax 631-957-9142 or 631-957-3880 • Web: www.specotech.com...
  • Page 29 ▶ MEMO...
  • Page 30 ▶ MEMO...
  • Page 31 ▶ MEMO...
  • Page 32 200 New Highway Amityville, NY 11701 631-957-8700 1 800 645 5516 www.specotech.com...
