Summary of Contents for Dunster House Utopia 3x3m MKII

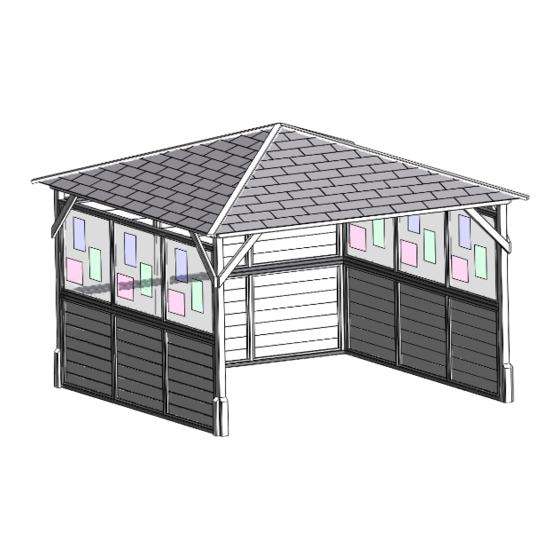

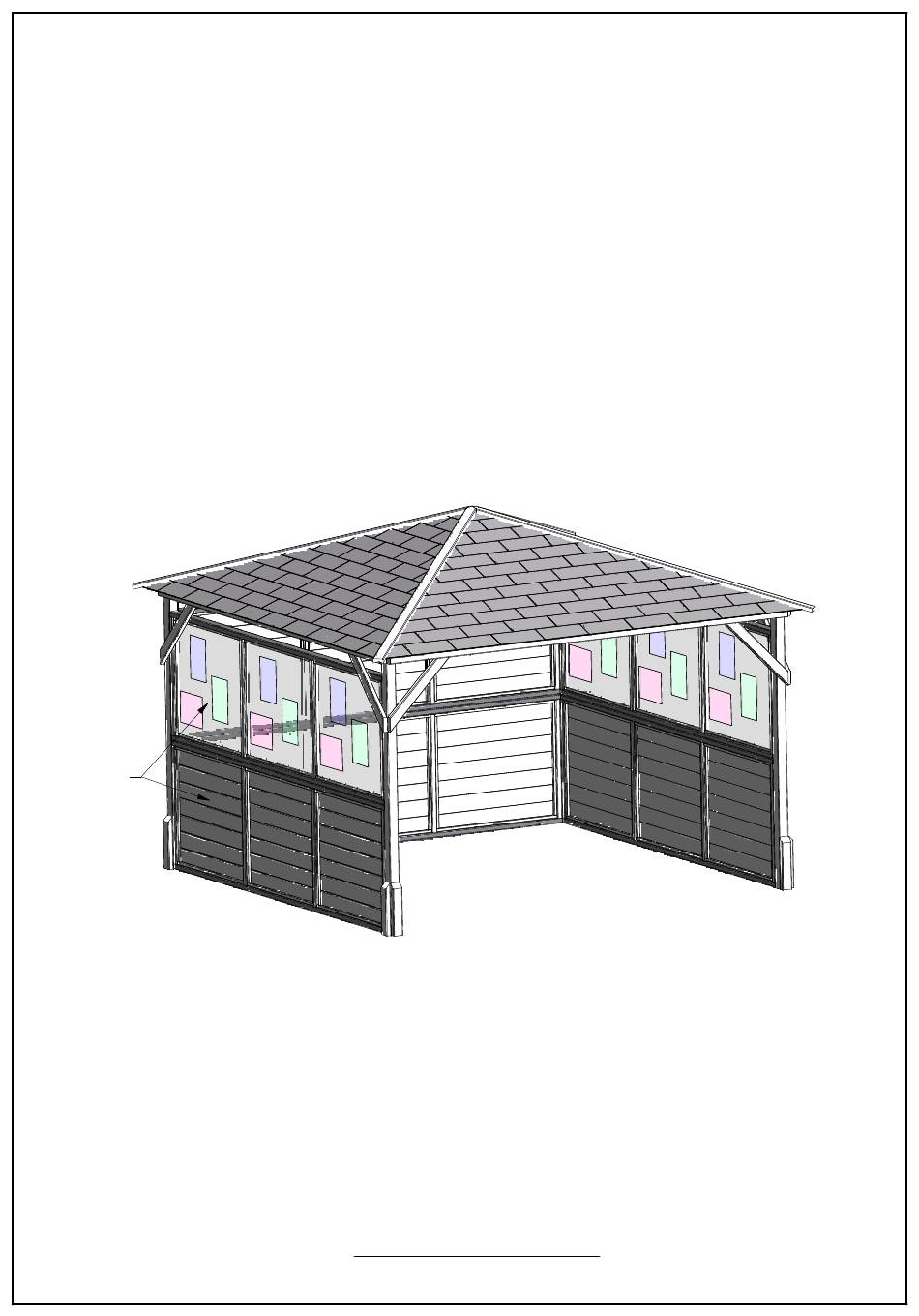

  • Page 1 Installation Manual Utopia Gazebo 3x3m MKII Wall Panels (optional extra) Unique Gazebo Reference Number. ____________________ www.dunsterhouse.co.uk...
  • Page 2 Fax: (01234) 224497 Post: Dunster House Ltd., Caxton Road, Elms Farm Industrial Estate, Bedford, MK41 0EB, England. Our Customer Service is aim to respond within 2-3 hours of receipt, however, this may be longer during busy periods. Please include your Sales Order (SO) number in any correspondence with Customer Services to enable them to locate your file.
  • Page 3: Getting Ready

    Utopia Gazebo 3x3m MKII Installation Manual The Nature of Wood The wood provided for your gazebo is soft wood which has been kiln dried and is pressure treated. Wood is a natural product, which may have knots, knotholes, imperfections, cracks and warping.
  • Page 4 Utopia Gazebo 3x3m MKII Installation Manual Preparation for Assembly To build your gazebo you will need: Two people, a stepladder, hammer, sharp knife, drill with drill bits, spirit level, screwdriver, saw, pair of pliers and a measuring tape. As a precautionary measure, protective gloves can be worn. Foundation A correct foundation is paramount to installing your gazebo correctly.
  • Page 5 Utopia Gazebo 3x3m MKII Installation Manual 70x70x1900.B 1900 4 of required 70x35x650.C 70x35x350.C 8 of required 8 of required 86x43x3000.C bottom cap 4 of required 1 of required 3000 70x35x2400.C 2400 4 of required 70x35x850.CM 4 of required 70x35x850.C 4 of required 86x43x2165.D 2165 4 of required...
  • Page 6 Utopia Gazebo 3x3m MKII Installation Manual SHIPx3168.A 3168 4 of required SHIPx2960.A 2960 4 of required SHIPx2750.A 2750 4 of required SHIPx2542.A 2542 4 of required SHIPx2334.A SHIPx2125.A 2334 2125 4 of required 4 of required SHIPx1917.A SHIPx1708.A 1917 1708 4 of required 4 of required SHIPx1500.A...
  • Page 7 Utopia Gazebo 3x3m MKII Installation Manual Start by assembling the main frame for the Utopia Gazebo. Make sure notches on components '70x70x1900.C' Please remember to pre-drill all holes are facing inside the Gazebo. before fixing, to avoid the splitting of timber.
  • Page 8 Utopia Gazebo 3x3m MKII Installation Manual Fix the '70x35x1603.A' to the Gazebo frame. Fix '70x35x1603.A' to the middle of 70x35x1603.A '86x43x3000.C' using 70mm screws, so that 70x35x1603.A they are flush with each other. At the opposite end of '70x35x1603.A' attach '35x35x95' by 86x43x3000.C screwing diagonally through '70x35x1603.A' and into '35x35x95' again using 70mm screws.
  • Page 9 Utopia Gazebo 3x3m MKII Installation Manual Fix the 'SHIPLAP' to the 'Roof assembly'. SHIPx873 SHIPx248 Firstly, ensure that the gazebo is plumb and SHIPx1082 SHIPx456 level. Now you can start to fix the roof boards by positioning the longest board so that it has SHIPx1290 SHIPx665 an overhang of approximately 45mm from the...
  • Page 10 Utopia Gazebo 3x3m MKII Installation Manual Fix '70x35x350.C' to the bottom of the Gazebo posts. On the base of the main support posts, fix 2x '70x35x350.C' to each post on the outside of the gazebo. The angled end of this component needs to be pointing upwards.
  • Page 11 Utopia Gazebo 3x3m MKII Installation Manual Once you have fixed the bottom row of shingles (with the cut outs pointing towards the roof) you can now fully cover the roof of your gazebo with shingles. All of the strips of shingles will now have the cut outs pointing towards the ground.
