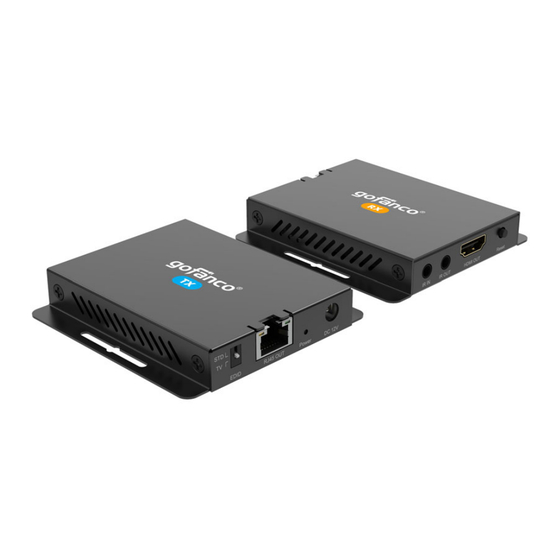

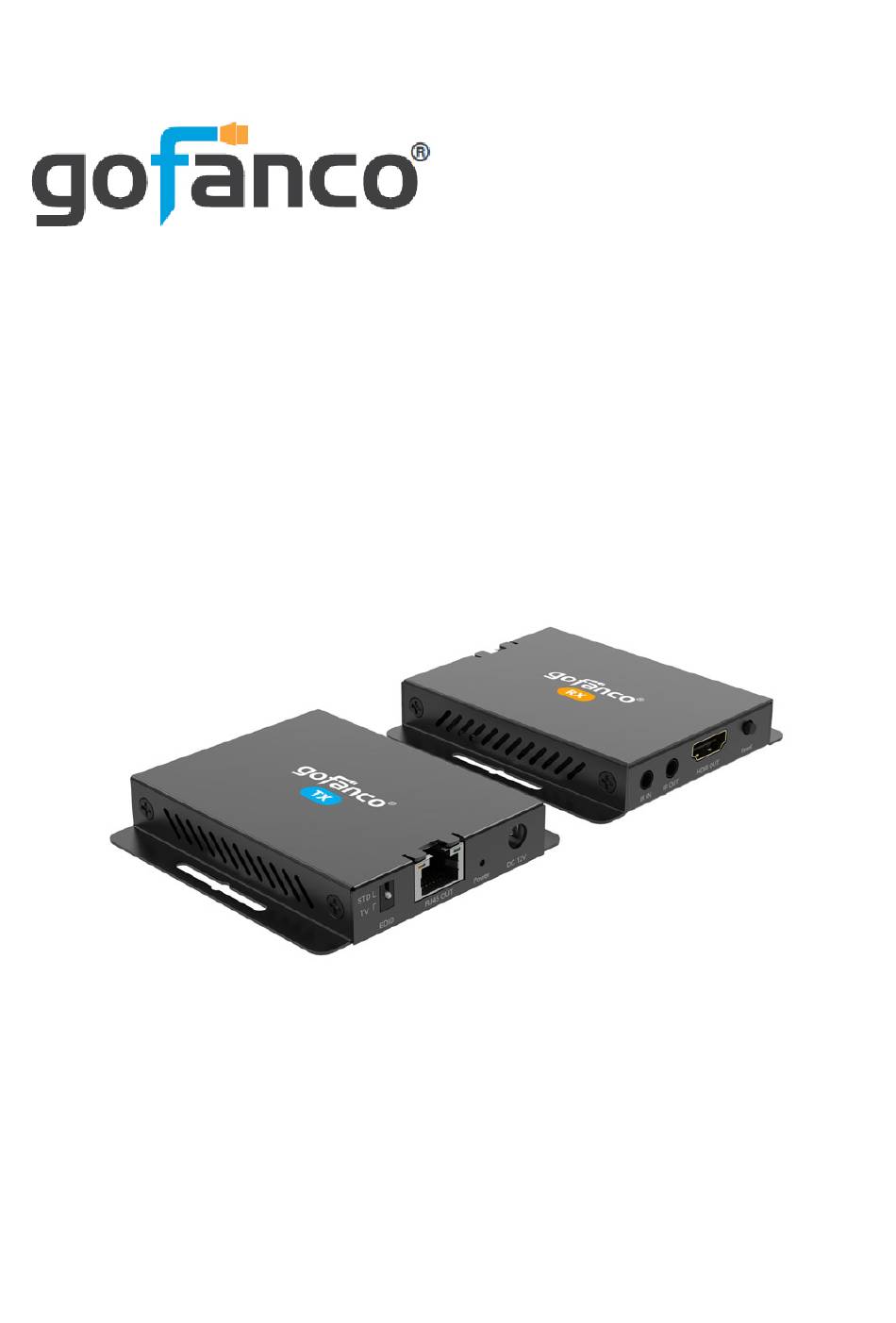

- Page 1 HDMI CAT Extender 4K120 - 40M User's Guide P/N: HDExt4K120 G4-0148A...
- Page 2 Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User’s Guide for future reference. If you need more information about our products, please visit www.gofanco.com.
- Page 3 • Use the included DC12V power adapters only. Make sure the specification matches if using 3rd-party DC power adapters Introduction The HDMI CAT Extender 4K120 - 40M extends HDMI transmission up to 130ft at 4K@120Hz over CAT6/7. Package Contents •...
- Page 4 Installation Requirements • HDMI source • HDMI display(s) • HDMI cables • UTP CAT6/7 cable following IEEE-T568B wiring standard Features • Supports up to 4K @120Hz YUV 4:4:4. HDR, HDCP 2.3/2.2/1.4 compliant • Supports Digital Stream Conversion (DSC) and compatible with DSC 1.2 •...
-
Page 5: Product Layout
Product Layout Transmitter (TX) Front and Rear Panel Figure 1: Transmitter Front and Rear Panel Layout EDID: EDID selector switch • STD: Slide the switch up for 4K @120Hz mode • TV: Slide the switch down to copy the EDID from the display RJ45 Out: Connect to the Receiver's RJ45 In using a CAT cable Power LED: On when the TX is powered on... - Page 6 HDMI In: Connect to your HDMI source Reset: Press to reset the transmitter Receiver (RX) Front and Rear Panel Figure 2: Receiver Front and Rear Panel Layout IR In: Connect to the IR Receiver cable. See IR Application on page 9 for proper cable connection.
- Page 7 Hardware Installation Power off all devices including your HDMI source and HDMI display. Connect your HDMI source device to the Transmitter's HDMI In connector with an HDMI cable (HDMI cable not included). Optional: Connect the IR cable to the Transmitter's IR port. See IR Application on page 9 for proper cable connection.
- Page 8 CAT Cable Wiring We suggest both RJ45 connectors be wired identically using T568B wiring standard for the best performance and compatibility.
- Page 9 IR Application HDMI Source Device Control from RX Location Connect the IR Blaster cable to the TX's IR Out port. Face the eye towards your HDMI source device's IR Window. Connect the IR Receiver cable to the RX's IR In port. Display Device Control from the TX Location Connect the IR Blaster cable to the RX's IR Out port.
-
Page 10: Connection Diagram
Connection Diagram The connection diagram shows the most typical input and output devices used with the HDMI CAT Extender. Figure 3: Connection Diagram with IR... -
Page 11: Specifications
Specifications... - Page 12 We reserve the right to make changes without prior notice to a product or system described herein to improve reliability, function, or design. Thank you for choosing gofanco www.gofanco.com...
