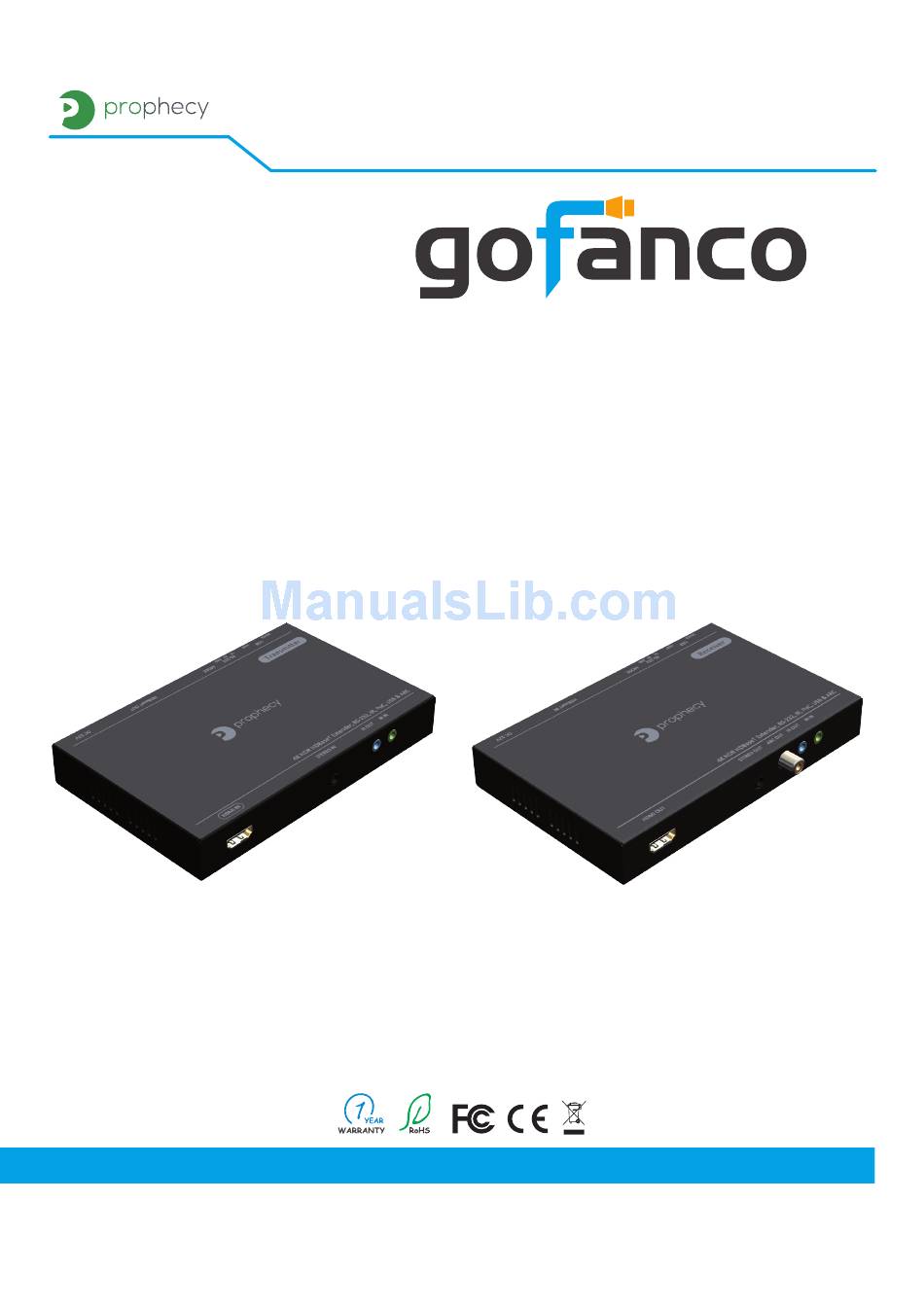

- Page 1 ® PRO-HDBaseT-U 4K HDR Extender over Single Cat.X with HDBaseT, RS-232, Bi-directional IR, PoC, USB & ARC User‘s Guide Transmitter Receiver Made in Taiwan...
- Page 2 ® PRO-HDBaseT-U Congratulations for owning a gofanco product. Our products aim to meet all your connectivity needs wherever you go. Have fun with our products! Please read this manual carefully before first use. If you need more information about our products, please visit www.gofanco.com.
-
Page 3: Table Of Contents
How- ever, like all electronic equipments, the PRO-HDBaseT-U should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 4: Introduction

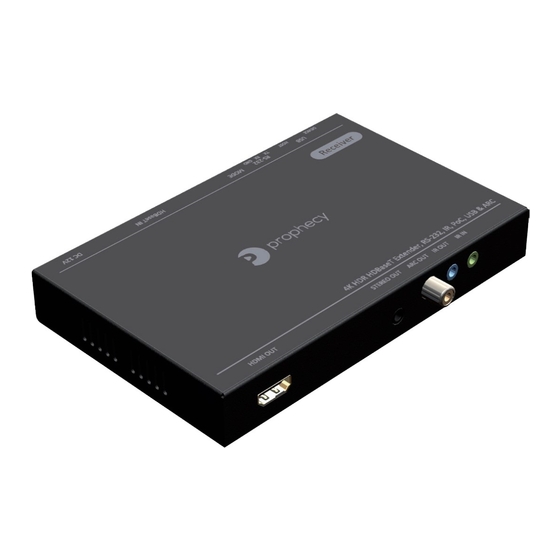

The PRO-HDBaseT-U includes two units: transmitting unit PRO-HDBaseT-U-TX and receiving unit PRO-HDBaseT-U-RX. The transmitting unit is used to capture the in- put HDMI / DVI signals with control packets. The receiving unit is responsible for equalizing the transmitted HDMI signal and reconstructing IR and serial control signals. -
Page 5: Features
(<25ns/100m) for best per- formance. Unshielded CAT6 with metal RJ45 connectors is recommanded. 4. Package Contents • 1x PRO-HDBaseT-U [TX & RX] • 1x IR blaster • 1x IR receiver • 1x 12V 2A •... -
Page 6: Specification
® PRO-HDBaseT-U 5. Specifications Item Description Technical PRO-HDBaseT-U[Tx] PRO-HDBaseT-U[Rx] Role of usage Transmitter [TX] Receiver [RX] HDMI compliance HDMI 2.0a HDCP compliance Yes (HDCP 2.2) Single-link 600MHz [18Gbps] Video bandwidth Video support HDR 4K2K@60 (4:2:0 10bits) / 4K2K@60 (4:4:4 8bits) 1080p@60 100m (330ft) [CAT5e]... -
Page 7: Connection Diagram
® PRO-HDBaseT-U 6. Connection Diagram... -
Page 8: Panel Description
® PRO-HDBaseT-U 7. Panel Description Transmitting unit PRO-HDBaseT-U-TX Front Panel 1. HDMI IN: Connect to a HDMI source with a HDMI male-male cable 2. Stereo Input: Provide a channel to extend an external analog audio to receiver over HD- BaseT 3. - Page 9 ® PRO-HDBaseT-U Receiving unit PRO-HDBaseT-U-RX Front Panel 1. HDMI OUT: Connect to a HDMI display with a HDMI male-male cable 2. Stereo Output: External analog audio output from transmitter over HDBaseT 3. S/PDIF Output: local ARC output 4. IR Blaster: Infrared 3.5mm socket for plugging in the extension cable of IR blaster 5.
-
Page 10: Ir Pass-Through
® PRO-HDBaseT-U 8. IR Pass-Through IR Extenders IR Blaster IR Receiver IR Sockets IR BLASTER: plug in the IR blaster to emit all IR command signals received from the IR receiver from the other end to control the devices corresponding to the IR signals. -
Page 11: Hdmi Pin Definition
TMDS Clock+ 10. Hardware Installation 1. onnect a HDMI or DVI source (such as a Blu-ray Disc player) to the transmitting unit PRO-HDBaseT-U-TX. 2. Connect a HDMI or DVI display (such as a LCD TV) to the receiving unit PRO-HDBaseT-U-RX. -
Page 12: Notice
® PRO-HDBaseT-U 11. Notice 1. All HDMI over CAT5 transmission distances are measured using Belden 1583A CA- T5e 125MHz UTP cable and ASTRODESIGN Video Signal Generator VG-859C & VG- 870B. 2. Incorrect placement of IR Blaster and Receiver may result in the failure of the IR extenders. -
Page 13: Warranty
Also, the technical information contained herein regarding the PRO-HDBaseT-U features and specifications is subject to change without further notice. - Page 14 ® PRO-HDBaseT-U...
- Page 15 ® PRO-HDBaseT-U Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user‘s guide. The pictures on the user‘s guide are just for reference, and there may be some slight differences with the actual products.
- Page 16 ® Thank you for choosing gofanco www.gofanco.com March, 2018 Ver. A Copyright © 2018 by gofanco, LLC. All rights reserved.
