TPS65982 USB Type-C

1 Features

This device is certified by the USB-IF for PD2.0
– PD2.0 is no longer certifiable on new designs
as of June 2020
– All new designs requiring certification should
use a PD3.0 compliant device
– Article on
PD2.0 vs PD3.0
Fully configurable USB PD controller
– Control for external DC/DC supplies through
GPIO
Ex:
TPS65982EVM
– Port data multiplexer
USB 2.0 HS data and low speed endpoint
Sideband-use data for alternate modes
GUI tool
to easily configure TPS65982 for
various applications
– Support for DisplayPort alternate mode and
thunderbolt alternate mode
– For a more extensive selection guide and
getting started information, please refer to
www.ti.com/usb-c
and
Integrated fully managed power paths:
– Integrated 5-V, 3-A, 50-mΩ sourcing switch
– Integrated 5-V to 20-V, 3-A, 95-mΩ bi-
directional load switch
– Gate control and current sense for external 5-V
to 20-V, 5-A bidirectional switch (back-to-back
NFETs)
– UL2367 cert#: E169910-20150728
– IEC62368-1 cert #: 111895
Integrated robust power path protection
– Integrated reverse current protection,
undervoltage protection, overvoltage protection,
and slew rate control the high-voltage bi-
directional power path
– Integrated undervoltage and overvoltage
protection and current limiting for inrush current
protection for the 5-V/3-A source power path
USB Type-C
®
Power Delivery (PD) controller
– 8 configurable GPIOs
– BC1.2 charging support
– USB PD 2.0 certified
– USB Type-C specification certified
– Cable attach and orientation detection
– Integrated VCONN switch
– Physical layer and policy engine
– 3.3-V LDO output for dead battery support
– Power supply from 3.3 V or VBUS source
– 1 I2C primary port
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
®
and USB PD Controller, Power Switch, and High-Speed
Multiplexer
E2E guide
SLVSD02E – MARCH 2015 – REVISED AUGUST 2021
– 1 I2C secondary port

2 Applications

Rugged PC and laptop
Docking station
Flat panel monitor

3 Description

The TPS65982 device is a stand-alone USB Type-C
and Power Delivery (PD) controller providing cable-
plug and orientation detection at the USB Type-
C connector. Upon cable detection, the TPS65982
device communicates on the CC wire using the USB
PD protocol. After successful USB PD negotiation
is complete, the TPS65982 enables the appropriate
power path and configures alternate mode settings for
internal and (optional) external multiplexers.
The mixed-signal front end on the CC pins advertises
default, 1.5 A or 3 A for USB Type-C power sources,
detects a plug event and determines the Type-C cable
orientation, and autonomously negotiates USB PD
contracts using a Bi-phase Marked Coding (BMC) and
the Physical Layer (PHY) protocol.
Device Information
PART NUMBER
PACKAGE
BGA MicroStar
Junior (96)
TPS65982
NFBGA (96)
(1)
For all available packages, see the orderable addendum at
the end of the data sheet.
5 to 20 V
External FET Sense and CTRL
5 to 20 V
3 A
5 V
3 A
3.3 V
Type-
Host
Detection
Host
Interface
USB PD Controller
High
USB2.0 and
Speed
Sideband-Use
Mux
Data
Alternate Mode Mux Ctrl
TPS65982
SuperSpeed Mux

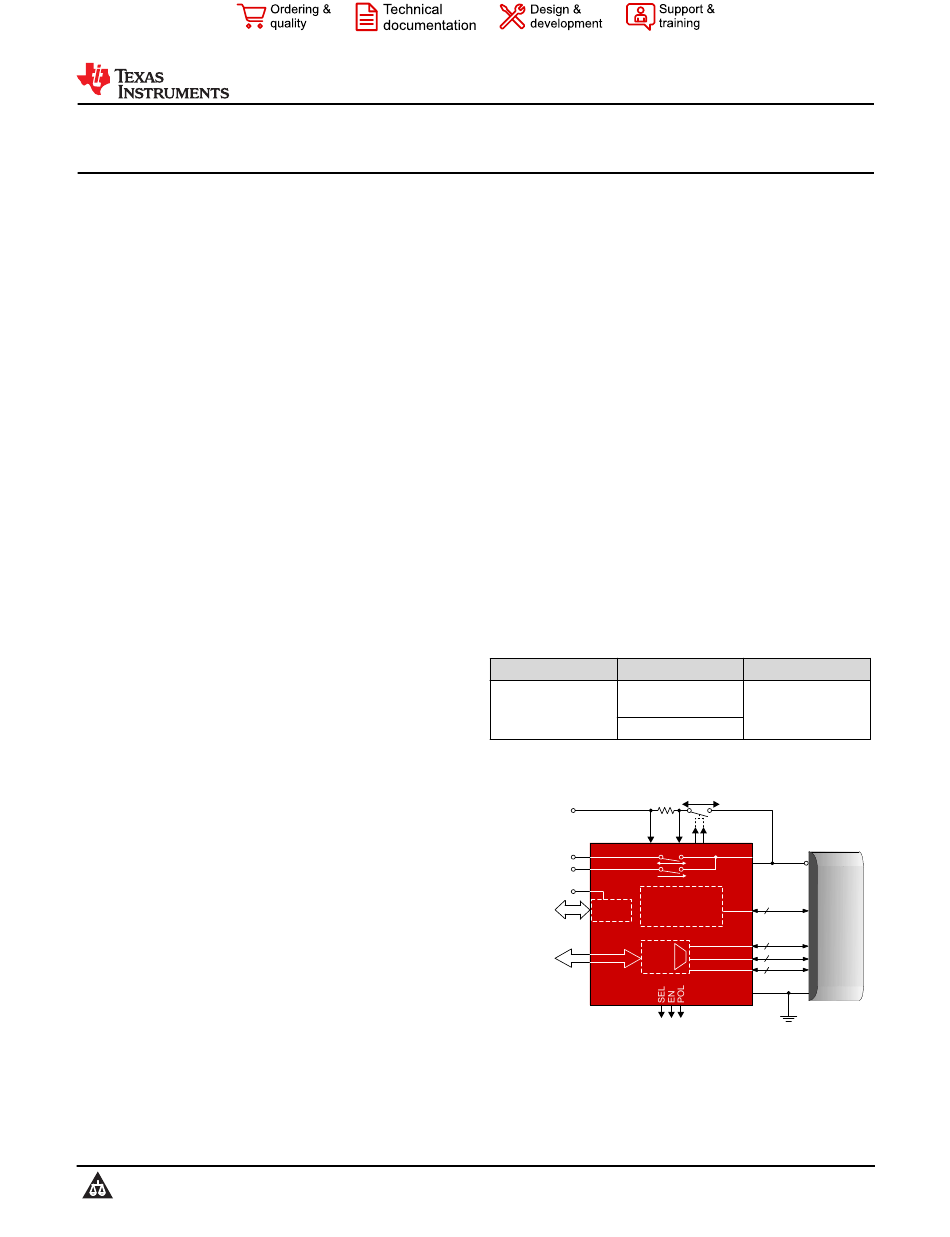

Copyright © 2016, Texas Instruments Incorporated
Simplified Diagram
TPS65982
(1)
BODY SIZE (NOM)
6.00 mm × 6.00 mm
5 A
V
BUS
C Cable
CC/V
and
CC1/2
2
CONN
USB
Type-C
Connector
USB_TP/TN
2
USB_BP/BN
2
SBU1/2
2
SBU1/2
GND
