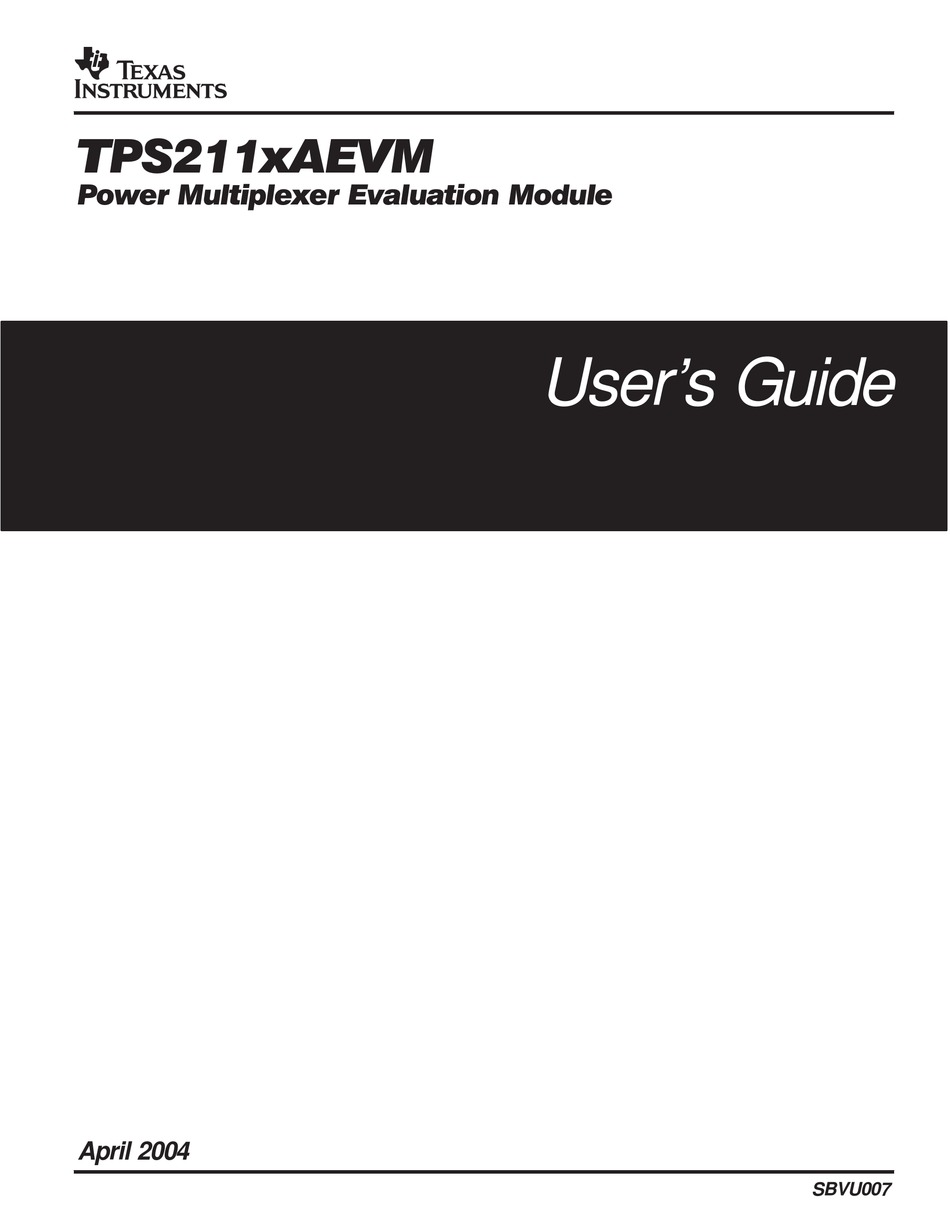

- Page 1 TPS211xAEVM Power Multiplexer Evaluation Module User’s Guide April 2004 SBVU007...
- Page 2 TI product or service and is an unfair and deceptive business practice. TI is not responsible or liable for any such statements. Following are URLs where you can obtain information on other Texas Instruments products and application solutions:...
- Page 3 EVM IMPORTANT NOTICE Texas Instruments (TI) provides the enclosed product(s) under the following conditions: This evaluation kit being sold by TI is intended for use for ENGINEERING DEVELOPMENT OR EVALUATION PURPOSES ONLY and is not considered by TI to be fit for commercial use. As such, the goods being provided may not be complete in terms of required design-, marketing-, and/or manufacturing-related protective considerations, including product safety measures typically found in the end product incorporating the goods.
- Page 4 EVM schematic located in the EVM User’s Guide. When placing measurement probes near these devices during operation, please be aware that these devices may be very warm to the touch. Mailing Address: Texas Instruments Post Office Box 655303 Dallas, Texas 75265 Copyright 2004, Texas Instruments Incorporated...
- Page 5 Chapter 3 − Schematic and Bill of Materials Chapter 4 − Board Layout The information in a caution or a warning is provided for your protection. Please read each caution and warning carefully. Related Documentation From Texas Instruments Data Sheet: Literature Number: TPS2110/1A: Autoswitching Power Mux...
- Page 6 Trademarks Electrostatic Sensitive Devices This EVM contains components that can potentially be damaged by electrostatic discharge. Always transport and store the EVM in its supplied ESD bag when not in use. Handle using an antistatic wristband. Operate on an antistatic work surface. For more information on proper handling, refer to SSYA008.
-
Page 7: Table Of Contents
Contents Contents Introduction ..............EVM Setup . - Page 8 Contents Figures 2−1 Basic EVM Setup ............. 3−1 TPS211xAEVM Schematic .
-
Page 9: Introduction
Chapter 1 Introduction The TPS211xA EVM is an evaluation module for the Texas Instruments TPS211xA family of two-input, one-output power multiplexers. These multiplexers enable seamless transition between two power supplies, each operating at 2.8 V–5.5 V and delivering up to 1 A. EVM configurations are available for the TPS2110A through TPS2115A. -
Page 11: Evm Setup
Chapter 2 EVM Setup This chapter describes the proper setup of the TPS211xAEVM for use in device evaluations. Topic Page Setting Up the EVM ......... . . Current-Limit Adjustment . -
Page 12: Setting Up The Evm
Setting Up the EVM 2.1 Setting Up the EVM The user is encouraged to read the applicable TPS211xA data sheet before using the EVM. The following test equipment is recommended: Storage oscilloscope Current probe Two adjustable power supplies, 0 V – 6 V @ 2−A Volt−Ohm meter A passive or active load Figure 2−1 shows the EVM test configuration. -
Page 13: Manual Switching Mode (Tps2110/1/4/5A Only)
Manual Switching Mode (TPS2110/1/4/5A Only) 2.3 Manual Switching Mode (TPS2110/1/4/5A Only) Potentiometer R2 and header J4 do not affect the operation of the manual switching mode. Some products like digital cameras and hand-held devices that receive power from an internal battery or from a docking station can take advantage of the manual-switching feature. -
Page 14: Output Voltage Holdup
Output Voltage Holdup 2.4.2 Mode 2 Automatic Switching (TPS2110/1/2/3A Only) In Mode 2 automatic switching, OUT connects to IN1 if the voltage at IN1 is sufficiently high; otherwise, OUT connects to the higher of IN1 and IN2. The threshold at which IN1 is selected corresponds to approximately 0.8 V at test point TP3. -
Page 15: Schematic And Bill Of Materials
Chapter 3 Schematic and Bill of Materials This chapter provides the TPS211xAEVM schematic and bill of materials. Topic Page EVM Configurations ......... . . Schematic . -
Page 16: Schematic
EVM Configurations 3.1 EVM Configurations Table 3−1. Available EVM Configurations Switching Modes Current-Limit Adjustment Current-Limit Adjustment Switch Status Switch Status Device Device Designator Range Output Automatic Manual HPA061−001 TPS2110A 0.31 A–0.75 A HPA061−002 TPS2111A 0.63 A–1.25 A HPA061−003 TPS2112A 0.31 A–0.75 A HPA061−004 TPS2113A 0.63 A–1.25 A... -
Page 17: Bill Of Materials
Bill of Materials 3.3 Bill of Materials Table 3−2. HPA601 Bill of Materials Quantity −001 −002 −003 −004 −005 −006 Ref Des Description MFG Part # Size IC, Power mux Texas TPS2110APW PW−8 Instruments IC, Power mux Texas TPS2111APW PW−8 Instruments IC, Power mux Texas... - Page 18 Bill of Materials Table 3−2. HPA601 Bill of Materials (continued) Quantity −001 −002 −003 −004 −005 −006 Ref Des Description MFG Part # Size Ref Des Description MFG Part # Size PCB, SLVP227A American Bumper, rubber, SPC2568 PSA, black Technology Shorting jumper, 929955−06 10 µ-inch gold...
-
Page 19: Board Layout
Chapter 4 Board Layout This chapter describes the TPS211xAEVM board layout and presents some component placement considerations. Topic Page Layout Considerations ........Board Layout... -
Page 20: Layout Considerations
Layout Considerations 4.1 Layout Considerations The IN1, IN2, and OUT pins of the TPS211xA can carry up to 1 A, so traces to these pins should be of suitable length and width to minimize the voltage drop to the load. Locate the 0.1 µF bypass capacitors close to the IN1, IN2, and GND pins of the TPS211xA.
