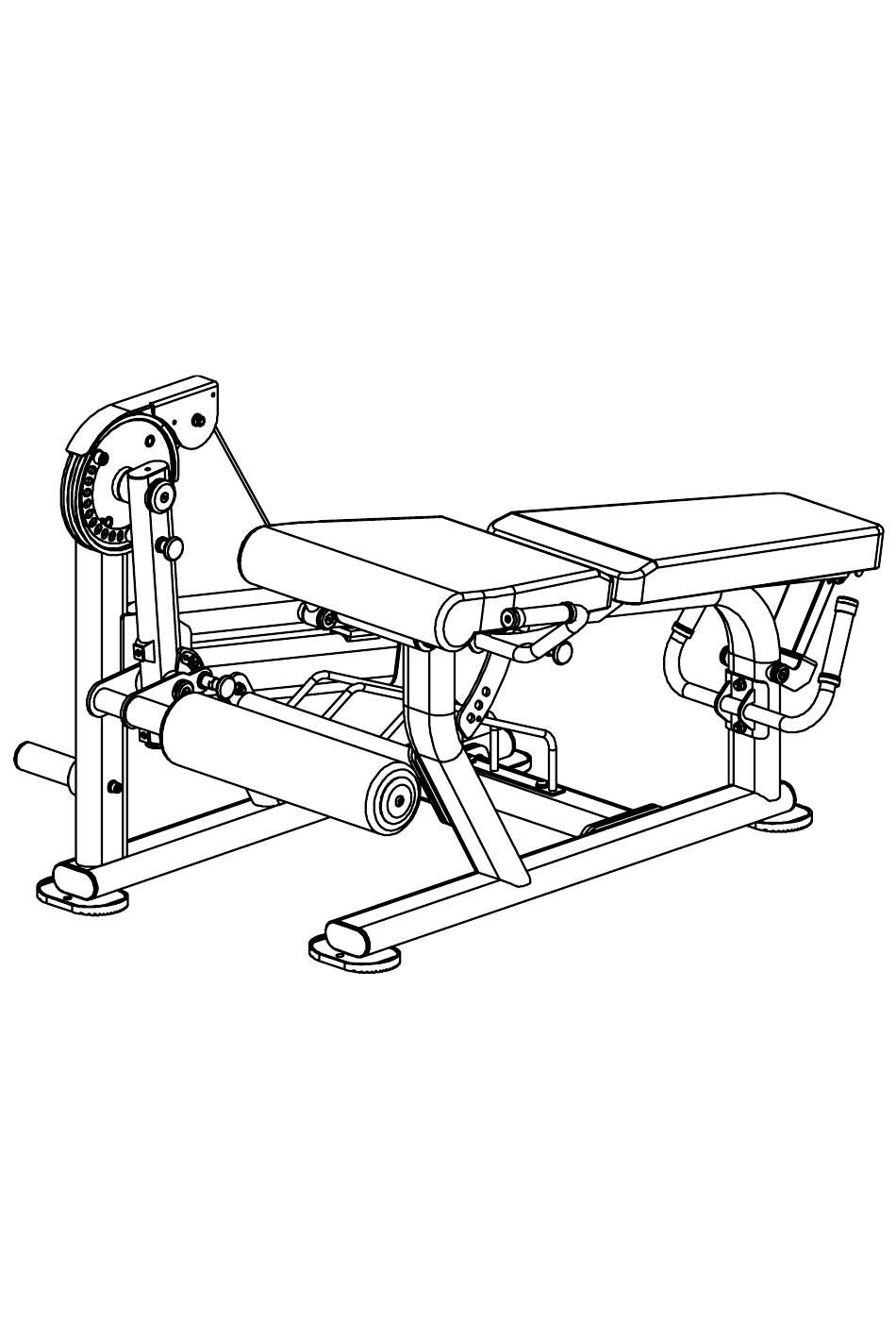

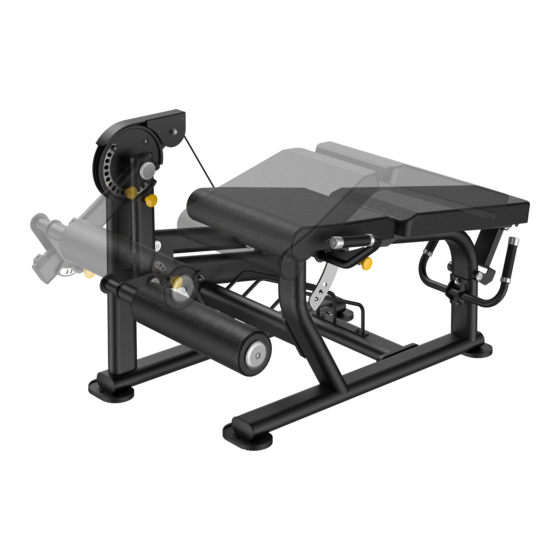

- Page 1 OWNER’S MANUAL MODEL# LEC050...
-
Page 2: Assembly Steps
ASSEMBLY STEPS Step 1. -
Page 3: Specification
NAME SPECIFICATION QUANTITY Main Frame Upright Frame Base Connection Frame Front Connection Frame Storage Rack Flat Washer Φ11*Φ20*2 Spring Washer Φ10 Hex Bolt M10*75 Hex Bolt M10*25 Hex Pan Head Bolt M10*25 1. Attach #1, #2 to #3 using: 4 #77 ... - Page 4 Step 2. NAME SPECIFICATION QUANTITY Main Frame Leg Curl Handle Assembly Leg Extension Handle Assembly Small Fixing Plate 100*50*4 Hex Bolt M10*75 Hex Bolt M10*25 Flat Washer Φ11*Φ20*2 Spring Washer Φ10 1. Attach #9 to the assembly of Step 1 using: ...
- Page 5 Step 3. NAME SPECIFICATION QUANTITY Foam Shaft Shaft Φ25*99*M8 Φ38 End Cap Φ38*Φ9*6 Hex Countersunk Head Screw M8*20 1. Remove 1 #22, 2 #31 and 2 #76. 2. Attach #14 and #22 to the assembly of Step 2 using: 2 #31 ...
- Page 6 Step 4. NAME SPECIFICATION QUANTITY Back Pad 670*355*70 Seat Pad 485*480*70 Flat Washer Φ11*Φ20*2 Hex Bolt M10*25 1. Attach #36 to the assembly of Step 3 using: 4 #77 4 #69 Tighten all the bolts. 2. Attach #37 to the assembly of Step 3 using: ...
- Page 7 Step 5. NAME SPECIFICATION QUANTITY Long Weight Plate Holder Short Weight Plate Holder Flat Washer Φ11*Φ20*2 Spring Washer Φ10 Hex Bolt M10*25 1. Attach #12 to the assembly of Step 4 using: 1 #77 1 #78 1 #69 Tighten all the bolts.
