Placement and Maintenance
Corridor ® Media furniture is designed for indoor use on level floors.
Clean glass with glass cleaner, and steel parts and wood veneer with
a moist cloth.
Your Corridor ® Media furniture is engineered for easy assembly.
Carefully follow this procedure to prevent any damage.
Do not use power tools for assembly of this product.
Step 1
Unpack and identify the parts listed below. The assembly workspace
should be a non-marring surface such as carpet. For missing
hardware pieces, please contact BDI Customer Service at
customerservice@bdiusa.com. For all other concerns, please
contact your BDI retailer.
For your convenience, wheel assembly is pre-installed. Wheels can
be removed if desired.
Removal of wheels (optional):
Detach Wheel Assembly from
Metal Leg E by removing the
Leveler and Screw.
Designed by Matthew Weatherly.
These distinctive product configurations are protected by US and international patents, trade dress, and/or
copyright laws. Corridor & BDI are trademarks of Becker Designed, Inc. All rights reserved. ©2016, BDI
Made in China. 06.10.2019, V11

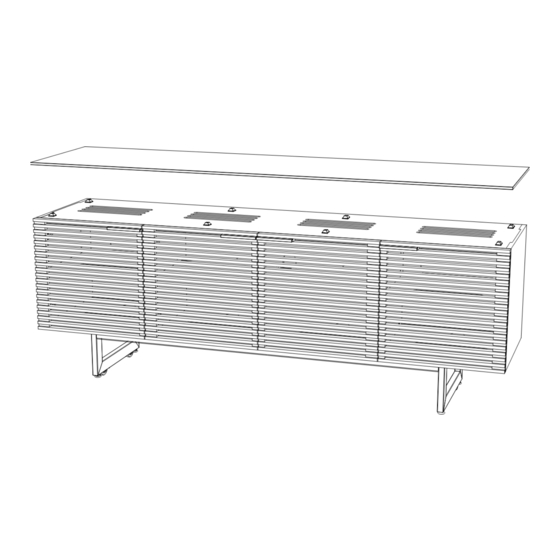

CORRIDOR
®
MEDIA CONSOLE
Reinstall Leveler to Metal Leg E.
E
8179
customerservice@bdiusa.com
E
bdiusa.com
A Phillips Screwdriver x 1
B1 Hex Wrench x 1
B2 Hex Wrench x 1
C Cabinet x 1
D 1/4-20 x 10 mm
Machine Screw x 16
E Metal Leg x 2
F Metal Rail x 2
G 1/420 x 60 mm
Machine Screw x 6
H M4 x 35 mm
Machine Screw x 8
I Door Pull x 4
J Rubber Bumper x 8
K Glass Top x 1
L Adjustable Shelf x 2
M Adjustable Shelf x 1
N Back Panel x 2
