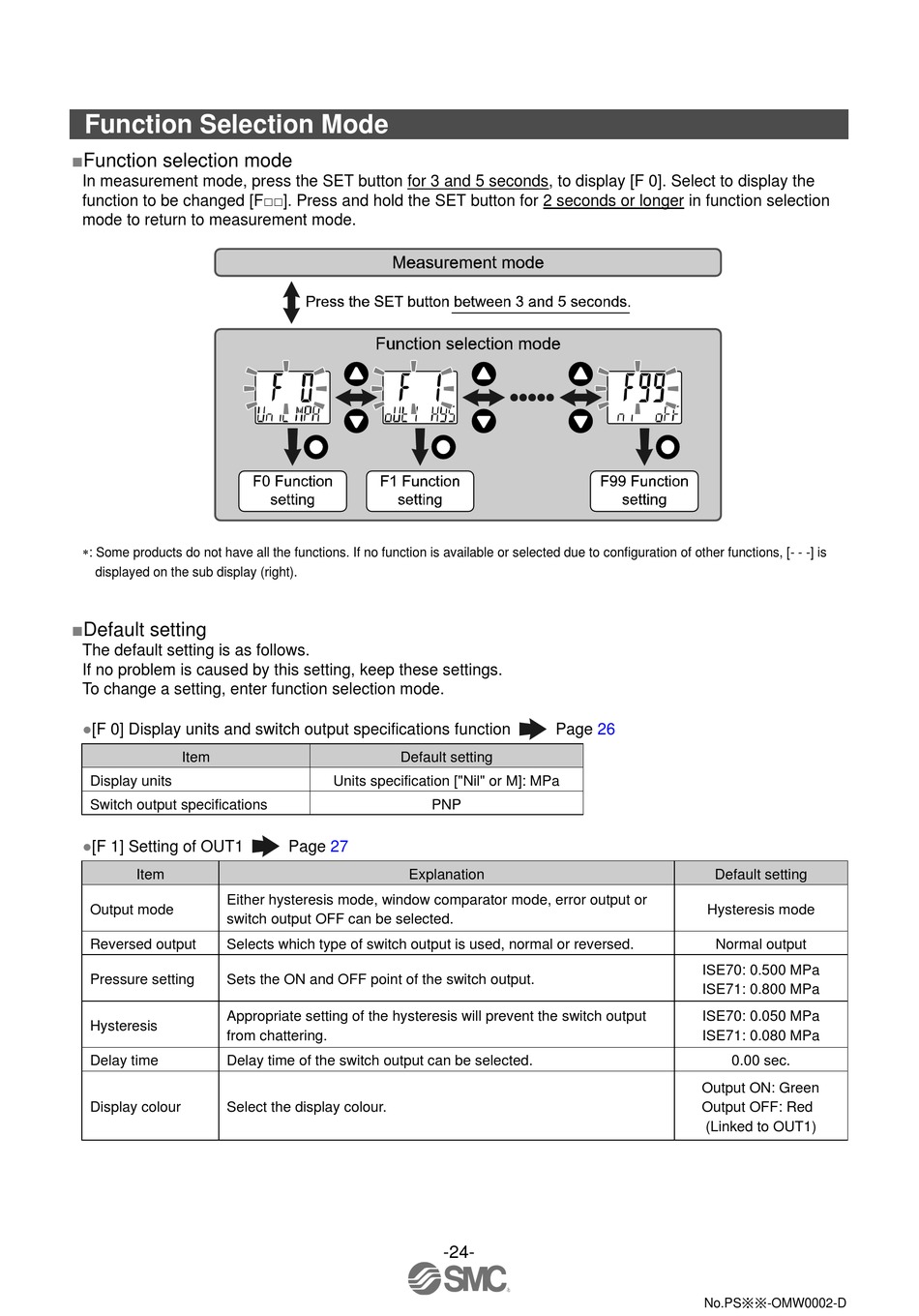

Function Selection Mode

■Function selection mode
In measurement mode, press the SET button for 3 and 5 seconds, to display [F 0]. Select to display the
function to be changed [F□□]. Press and hold the SET button for 2 seconds or longer in function selection
mode to return to measurement mode.
: Some products do not have all the functions. If no function is available or selected due to configuration of other functions, [- - -] is
displayed on the sub display (right).

■Default setting

The default setting is as follows.
If no problem is caused by this setting, keep these settings.
To change a setting, enter function selection mode.
●[F 0] Display units and switch output specifications function
Item
Display units
Switch output specifications
●[F 1] Setting of OUT1
Item
Either hysteresis mode, window comparator mode, error output or
Output mode
switch output OFF can be selected.
Reversed output Selects which type of switch output is used, normal or reversed.
Pressure setting Sets the ON and OFF point of the switch output.
Appropriate setting of the hysteresis will prevent the switch output
Hysteresis
from chattering.
Delay time Delay time of the switch output can be selected.
Display colour Select the display colour.
Default setting
Units specification ["Nil" or M]: MPa
PNP
Page 27
Explanation
-24-
Page 26
Default setting
Hysteresis mode
Normal output
ISE70: 0.500 MPa
ISE71: 0.800 MPa
ISE70: 0.050 MPa
ISE71: 0.080 MPa
Output ON: Green
Output OFF: Red
(Linked to OUT1)
No.PS※※-OMW0002-D
0.00 sec.
