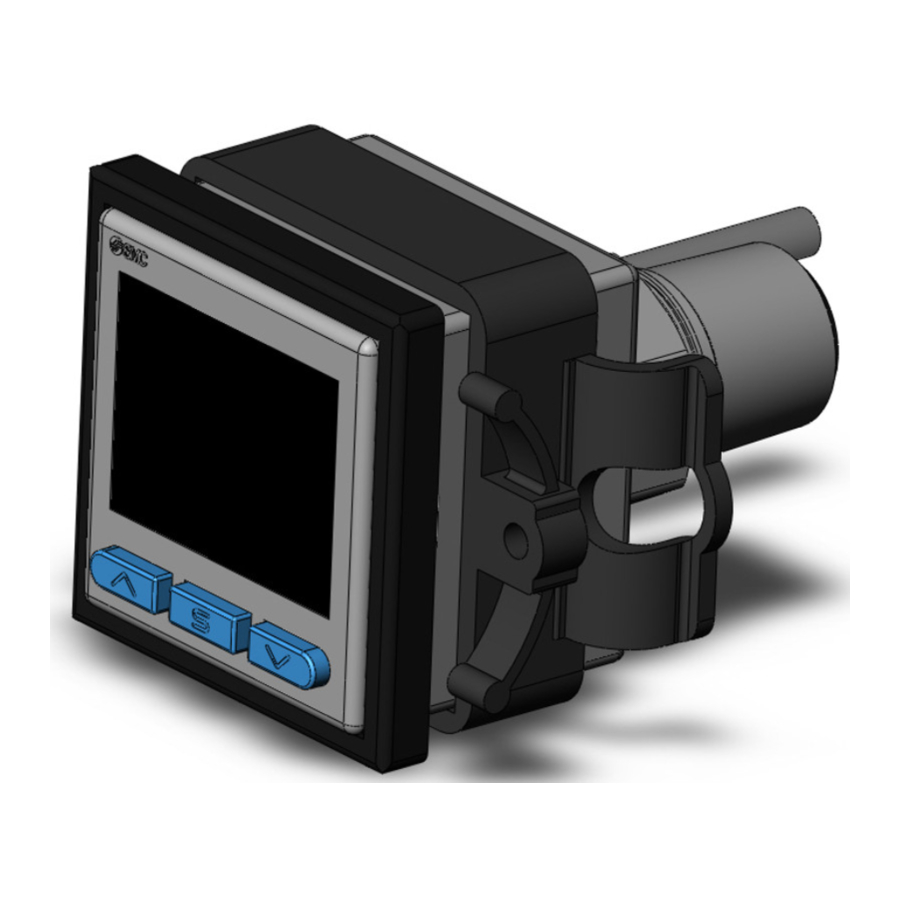

SMC ZSE20C, ZSE20CF, ISE20C, ISE20CH - Digital Pressure Switch Troubleshooting
Error indication function
| Error | Error displayed | Description | Measures |
Over current error | Er 1 Er 2 | The switch output load current is 80 mA or more. | Turn the power off and remove the cause of the over current. Then supply the power again. |
Residual pressure error | Er 3 | During zero clear operation, pressure greater than ±7% F.S. (±3.5% F.S.for compound pressure) is present. Note that the mode is returned to measurement mode automatically 1 second later. The zero clear range varies by ±1% F.S. due to variation between individual products. | Release the applied pressure to atmospheric pressure, and retry the zero clear operation. |
Pressurizing | HHH | Pressure exceeding the upper limit of the set pressure range is applied. | Reset applied pressure to a level within the set pressure range. |
| LLL | Pressure exceeding the lower limit of the set pressure range is applied. | ||
Copy error | Er 13 | Fail to operate copy function. | Press the and buttons 1 second or longer to recover from error. Try copy function after checking wiring, product model etc. |
System error | Er 0 Er 4 Er 6 Er 7 Er 8 Er 9 | Displayed if an internal data error has occurred. | Turn the power off and on again. If the failure cannot be solved, contact SMC. |
