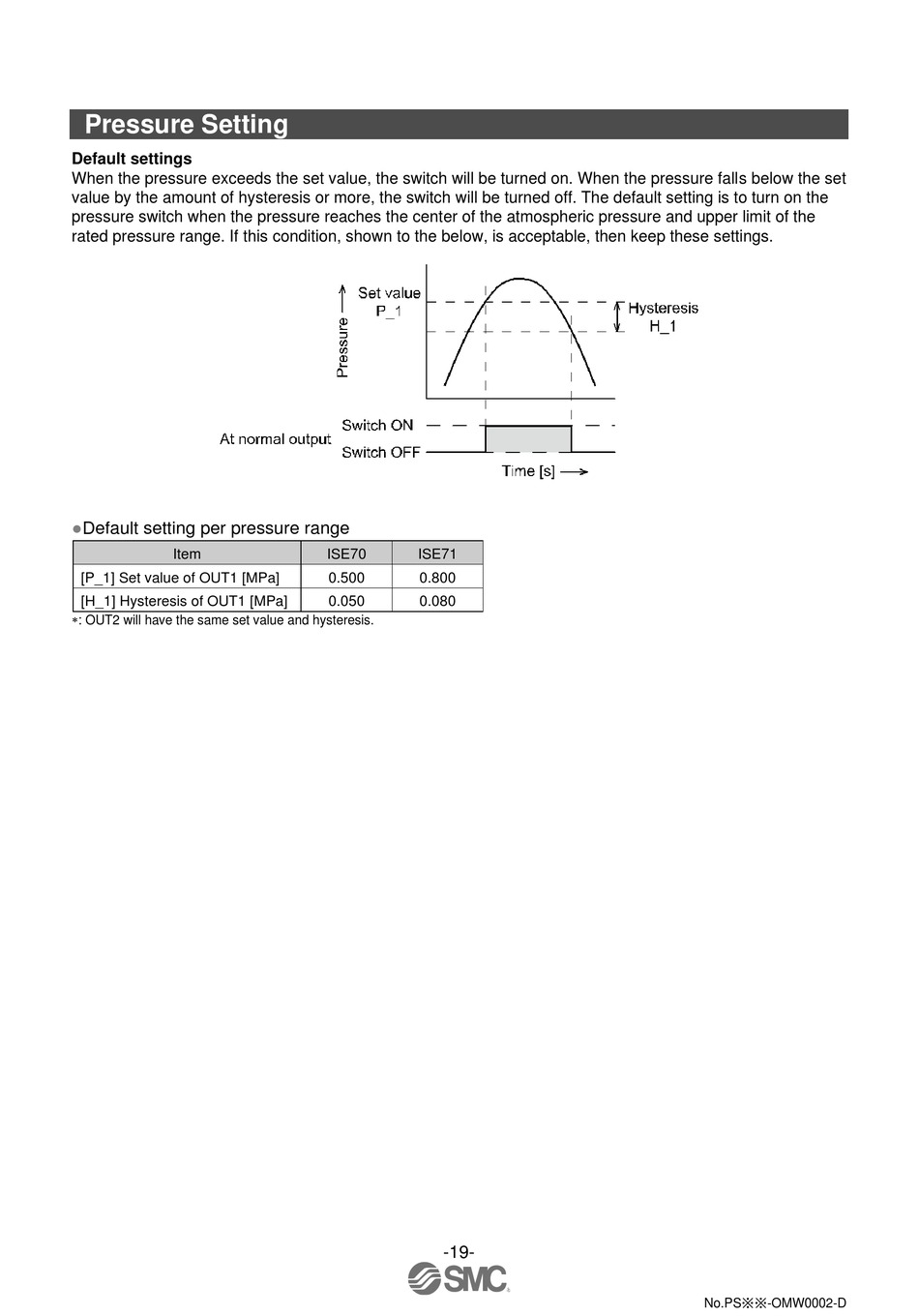

Pressure Setting

Default settings
When the pressure exceeds the set value, the switch will be turned on. When the pressure falls below the set
value by the amount of hysteresis or more, the switch will be turned off. The default setting is to turn on the
pressure switch when the pressure reaches the center of the atmospheric pressure and upper limit of the
rated pressure range. If this condition, shown to the below, is acceptable, then keep these settings.
●Default setting per pressure range
Item
[P_1] Set value of OUT1 [MPa]
[H_1] Hysteresis of OUT1 [MPa]
: OUT2 will have the same set value and hysteresis.
ISE70 ISE71
0.500 0.800
0.050 0.080
-19-
No.PS※※-OMW0002-D
